CNC FB 160 Floor Boring Machine

The CNC FB 160 Floor Boring Machine from Sahil Machines is a heavy-duty moving column CNC boring and milling solution designed for precision machining of extra-large industrial components. Built with a rigid Meehanite cast iron structure and high-performance spindle system, it delivers exceptional stability, accuracy, and productivity across mining, energy, railway, shipbuilding, and heavy engineering applications.

Quick Technical Details

  • Spindle Diameter / Facing Capacity160 mm / 1200 mm
  • X Axis TravelUp to 20 m
  • Axis ConfigurationX + Y + Z + W + Optional B Axis
  • Spindle Speed Range10 – 3000 RPM
  • Main Motor Power37 kW
  • Machining Capability4 Axis / 5 Face Machining Ready
  • Accuracy StandardPositioning Accuracy up to 20 Micron
Product video playlistSahil Machines YT Channel

Product Documents

Get all the technical details you need.

CNC FB 160 - CNC Floor Boring Machine

Full Technical Specifications | Sahil Machines • Boring Division

Make in India
DescriptionUnitValue
Machine Type-CNC Floor Type Horizontal Boring & Milling Machine
Structure-Moving Column, Fixed Floor Plate Type
Machine Design-Heavy Ribbed Meehanite Cast Iron Structure
Application-Heavy Boring, Milling, Drilling, Facing & Large Component Machining
CNC Axes-X / Y / Z / W + Optional B Axis
CNC Capability-4 Axis / 5 Face Machining Ready
DescriptionUnitValue
Spindle Diametermm160
Ram Sectionmm450 × 450
Spindle Taper-ISO / BT 50
Spindle Speed Rangerpm10 – 3000
Main Spindle Motor PowerkW37
Drive System-High Torque Gear Assisted
Spindle Cooling-Oil Cooler with Forced Lubrication
Spindle Bearings-Precision Angular Contact / Roller Bearings
W Axis Strokemm800 / Custom
Z Axis Ram Travelmm800 / Custom
DescriptionUnitValue
X Axis Travelm4 / 6 / 8 / 10 / 12 / 14 / 16 / 20
Y Axis Travelm3 / 4 / 5
Z Axis Travelmm800 / Custom
W Axis Travelmm800 / Custom
Guideway Type-Hardened Ground Slideways / Hydrostatic Optional
Drive System-Precision Ballscrew / Rack & Pinion Hybrid
DescriptionUnitValue
Table Type-CNC Rotary Table
B Axis RotationDeg360° Continuous
Positioning ResolutionDeg0.001°
Table Sizemm2000 × 2000
Maximum Table LoadMT12
Rotation Speedrpm1
T Slots-11 / 28 / 160
DescriptionUnitValue
Rapid Feed X / Y / Zm/min8
Rapid Feed W Axism/min4
Cutting Feedmm/min1 – 4000
Feed Override%0 – 150
DescriptionUnitValue
Tool Magazine CapacityNos30 / 40 / 60
Tool Shank-ISO / BT 50
Maximum Tool Diametermm125 / 250
Maximum Tool Lengthmm400
Maximum Tool Weightkg20
Tool Change Timesec15
DescriptionUnitValue
Facing Head Diametermm800
Maximum Facing Diametermm1200
Facing Head Speedrpm0 – 200
U Axis Travelmm200
Application-Facing, Grooving & Large Bore Machining
DescriptionUnitValue
Linear Positioning Accuracymicron20
Linear Repeatabilitymicron10
B Axis Positioning AccuracyArc Sec±5
Spindle Runoutmm≤0.005
DescriptionUnitValue
Controller Options-Siemens / Fanuc / Heidenhain
Programming-ISO G Code
Functions-Rigid Tapping, Helical Milling & Canned Cycles
Connectivity-Ethernet / USB / Remote Diagnostics

Application Components

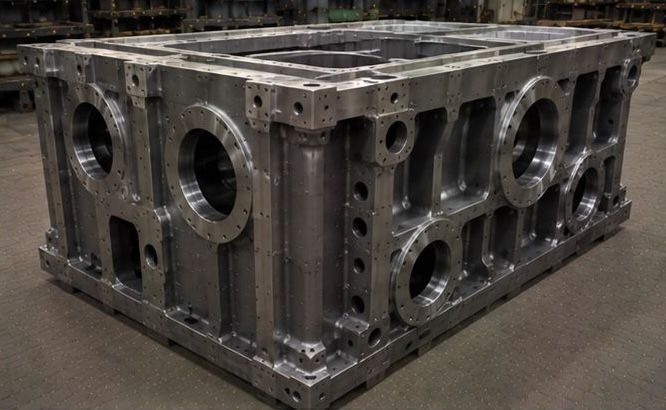

  • Block

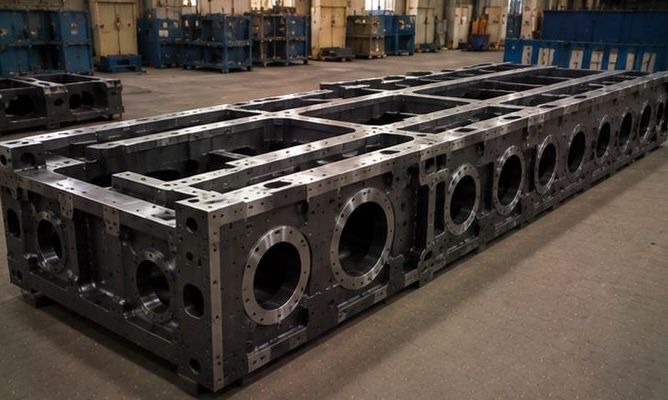

  • Foundation Bed

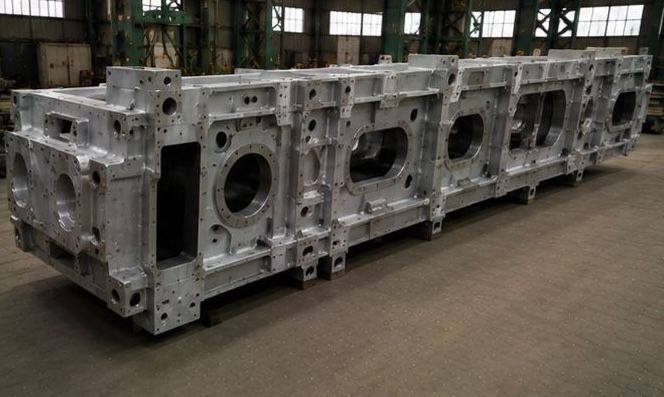

  • Frame

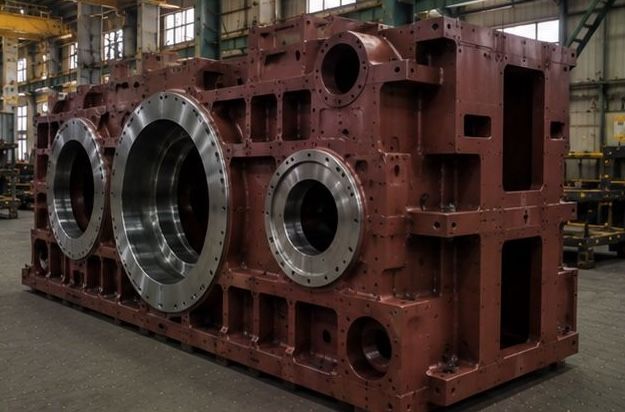

  • Housing

Machine Highlights

  • Heavy Duty Meehanite Structure

    Rigid Meehanite cast iron construction designed for vibration damping and maximum machining stability.

  • Precision Multi Face Machining

    4-axis / 5-face machining capability with optional B-axis rotary table integration.

  • Extended Travel Capability

    Long X-axis travel configurations up to 20 meters for oversized industrial components.

  • Flexible Machining Performance

    Supports boring, milling, drilling, facing, grooving, and large component precision machining.
