CNC Floor Boring Machines

High Precision

20 Micron Positioning Accuracy

Powerful Motor

45 kW High Torque Drive

Wide Speed Range

10 – 2500 RPM Variable Speed

Built For Reliability

Extra Heavy Duty Meehanite Cast Iron Construction

Precision. Power. Performance.

CNC FB 200 Floor Boring Machine

The CNC FB 200 Floor Boring Machine from Sahil Machines is an extra heavy-duty moving column CNC boring and milling solution designed for precision machining of ultra-large industrial components. Built with a rigid Meehanite cast iron structure and high-performance spindle system, it delivers exceptional rigidity, machining stability, and productivity for advanced heavy engineering applications across power, shipbuilding, mining, oil & gas, nuclear, and railway industries.

Quick Technical Details

  • Spindle Diameter / Facing Capacity200 mm / 1600 mm
  • X Axis TravelUp to 20 m
  • Axis ConfigurationX + Y + Z + W + Optional B Axis
  • Spindle Speed Range10 – 2500 RPM
  • Main Motor Power45 kW
  • Machining Capability4 Axis / 5 Face Machining Ready
  • Accuracy StandardPositioning Accuracy up to 20 Micron
Product video playlistSahil Machines YT Channel

Product Documents

Get all the technical details you need.

CNC FB 200 - CNC Floor Boring Machine

Full Technical Specifications | Sahil Machines • Boring Division

Make in India
DescriptionUnitValue
Machine Type-CNC Floor Type Horizontal Boring & Milling Machine
Structure-Moving Column, Fixed Floor Plate Type
Machine Design-Extra Heavy Duty Meehanite Cast Iron Structure
Application-Extra Heavy Boring, Milling, Drilling, Facing & Large Component Machining
CNC Axes-X / Y / Z / W + Optional B Axis
CNC Capability-4 Axis / 5 Face Machining Ready
DescriptionUnitValue
Spindle Diametermm200
Ram Sectionmm500 × 500
Spindle Taper-ISO / BT 50 / ISO 60 Optional
Spindle Speed Rangerpm10 – 2500
Main Spindle Motor PowerkW45
Drive System-High Torque Gear Assisted Drive
Spindle Cooling-Oil Cooler with Forced Lubrication
Spindle Bearings-Precision Roller / Angular Contact Bearings
W Axis Strokemm1000 / Custom
Z Axis Ram Travelmm1000 / Custom
DescriptionUnitValue
X Axis Travelm4 / 6 / 8 / 10 / 12 / 14 / 16 / 20
Y Axis Travelm3 / 4 / 5 / 6
Z Axis Travelmm1000 / Custom
W Axis Travelmm1000 / Custom
Axis Guideways-Hardened Ground Slideways / Hydrostatic Optional
Axis Drive System-Precision Ballscrew / Rack & Pinion Hybrid
DescriptionUnitValue
Table Type-CNC Rotary Table
B Axis RotationDeg360° Continuous
Positioning ResolutionDeg0.001°
Table Sizemm2500 × 2500
Maximum Table LoadMT20
Rotation Speedrpm0.8
T Slots-11 / 32 / 180
DescriptionUnitValue
Rapid Feed X / Y / Zm/min8
Rapid Feed W Axism/min4
Cutting Feedmm/min1 – 4000
Feed Override%0 – 150
DescriptionUnitValue
Tool Magazine CapacityNos40 / 60 / 80
Tool Shank-ISO / BT 50 / ISO 60
Maximum Tool Diametermm150 / 250
Maximum Tool Lengthmm500
Maximum Tool Weightkg25
Tool Change Timesec18
DescriptionUnitValue
Facing Head Diametermm1000
Maximum Facing Diametermm1600
Facing Head Speedrpm0 – 180
U Axis Slide Travelmm250
Facing Head Application-Facing, Grooving & Large Bore Machining
DescriptionUnitValue
Linear Positioning Accuracymicron20
Linear Repeatabilitymicron10
B Axis Positioning AccuracyArc Sec±5
Spindle Runoutmm≤0.005
DescriptionUnitValue
Controller Options-Siemens / Fanuc / Heidenhain
Programming-ISO G Code
Functions-Rigid Tapping, Helical Milling & Canned Cycles
Connectivity-Ethernet / USB / Remote Diagnostics
Advanced Functions-RTCP / Look Ahead / Macro Ready

Application Components

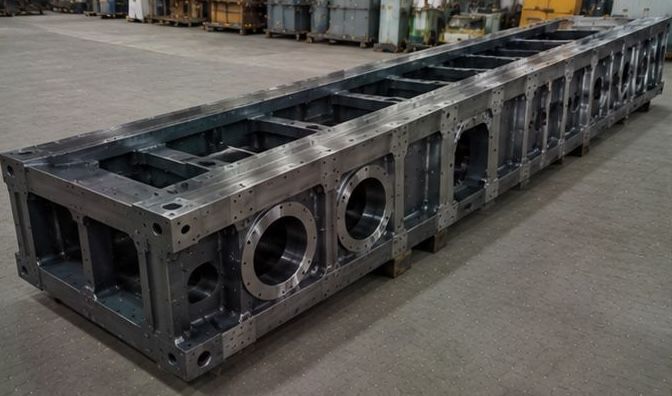

  • Bed

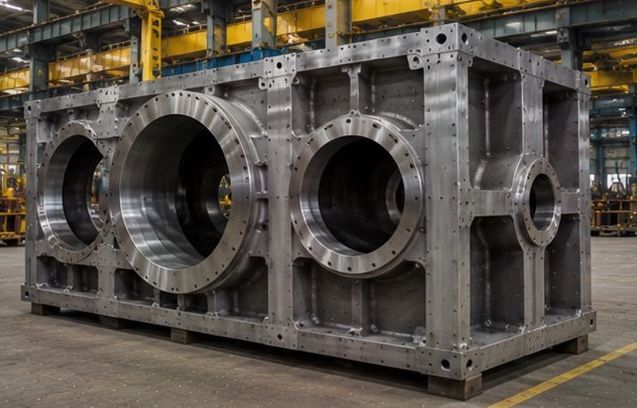

  • Gearbox Housing

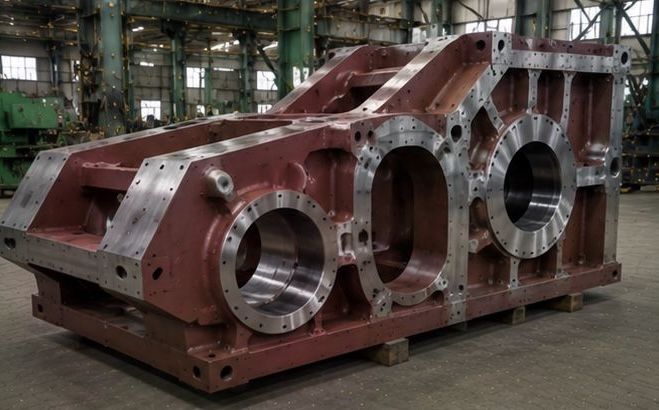

  • Mining Frame

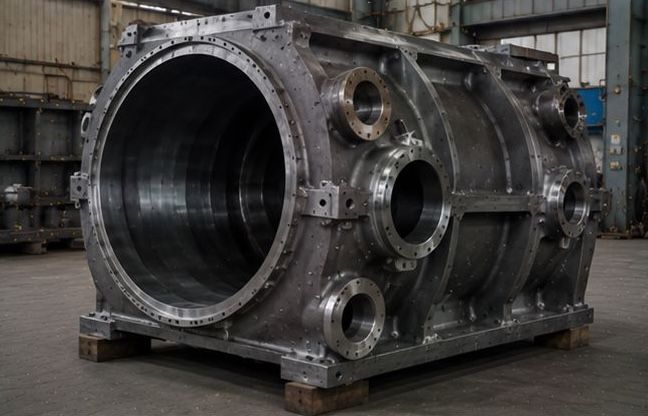

  • Turbine Casing

Machine Highlights

  • Extra Heavy Duty Meehanite Structure

    Rigid Meehanite cast iron construction designed for maximum vibration damping and machining stability during ultra-large component machining.

  • Precision Multi Face Machining

    4-axis / 5-face machining capability with optional B-axis rotary table integration for complex machining applications.

  • Extended Travel Capability

    Long X-axis travel configurations up to 20 meters suitable for oversized industrial structures and heavy fabricated assemblies.

  • Flexible Machining Performance

    Supports boring, milling, drilling, facing, grooving, and precision machining with multiple optional heads and accessories.

Want to See Our Product Videos?

Explore Sahil Machines’ YouTube channel for machine demonstrations, machining applications, and engineering insights.

Sahil Machines YouTube

Accessories

Service

Advanced Technology Options

  • CNC Systems

    Latest Siemens, Fanuc, and Heidenhain CNC systems with RTCP, look-ahead functions, macro programming support, rigid tapping, and advanced diagnostics.

  • Workholding

    Heavy-duty rotary tables, floor plates, hydraulic fixtures, and customized workholding solutions for ultra-large industrial components.

  • Probing

    Advanced probe systems and tool presetter integration available for automated setup verification and precision inspection support.

  • Accessories Integration

    Optional ATC systems, through-spindle coolant, rotary tables, universal heads, right-angle heads, floor plates, angle plates, and linear scales for enhanced machining flexibility.
