CNC HBM 160 Horizontal Boring Machine
The CNC HBM 160 Horizontal Boring Machine from Sahil Machines is a heavy-duty CNC machine designed for precision boring, milling, drilling, and facing of large industrial components. Built with a rigid cast iron structure and high precision spindle system, it delivers exceptional machining stability, accuracy, and productivity for demanding heavy engineering applications across railways, oil & gas, marine, and energy industries.
Quick Technical Details
- Spindle Diameter / Facing Capacity160 mm / 1200 mm
- Table Size / Travels2000 × 2000 mm / Up to 5000 × 3000 × 2000 mm
- Job Load Capacity12 Ton
- Axis ConfigurationX + Y + Z + W Axis + B Axis Rotary Table
- Speed Range0 – 2500 RPM
- Motor Power37 kW
- Accuracy StandardPositioning Accuracy up to 20 Micron
Product Documents
Get all the technical details you need.
CNC HBM 160 - CNC Horizontal Boring Machine
Full Technical Specifications | Sahil Machines • Boring Division
| Description | Unit | Value |
|---|---|---|
| Spindle Diameter | mm | 160 |
| Maximum Boring Capacity | mm | 700 |
| Facing Head Diameter | mm | 800 (Optional) |
| Maximum Facing Diameter | mm | 1200 |
| U Axis Travel | mm | 200 |
| Description | Unit | Value |
|---|---|---|
| Rotary Table Size | mm | 2000 × 2000 |
| Table Rotation | Deg | 360° (0.001°) |
| Table Rotation Speed | rpm | 1 |
| Maximum Load on Table | Ton | 12 |
| Number of T Slots | Nos | 11 |
| T Slot Size | mm | 28 |
| T Slot Pitch | mm | 160 |
| Description | Unit | Value |
|---|---|---|
| X Axis Travel | mm | 2000 / 3000 / 4000 / 5000 |
| Y Axis Travel | mm | 2000 / 3000 |
| Z Axis Travel (Ram) | mm | 1500 / 2000 |
| W Axis Travel (Spindle) | mm | 400 / 600 |
| Description | Unit | Value |
|---|---|---|
| Spindle Taper | - | BT 50 |
| Spindle Speed Range | rpm | 0 – 2500 |
| Main Motor Power | kW | 37 |
| Spindle Cooling | - | Forced Lubrication |
| Feed Rate | m/min | 4 |
| Rapid Feed XYZ | m/min | 8 |
| Rapid Feed W Axis | m/min | 4 |
| Description | Unit | Value |
|---|---|---|
| Tool Magazine Capacity | Nos | 30 / 40 / 60 |
| Tool Shank | - | BT 50 |
| Maximum Tool Diameter | mm | 125 / 250 |
| Maximum Tool Length | mm | 400 |
| Maximum Tool Weight | kg | 20 |
| Tool Change Time | sec | 15 |
| Description | Unit | Value |
|---|---|---|
| Positioning Accuracy | micron | 20 |
| Repeatability | micron | 10 |
| B Axis Accuracy | sec | ±10 |
| Description | Unit | Value |
|---|---|---|
| Connected Load | kVA | 90 |
| Machine Weight | MT | 45 |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Siemens / Fanuc Latest |
| Interface | - | USB / Ethernet |
| Programming | - | ISO G Code |
| Description | Unit | Value |
|---|---|---|
| Machine Type | - | CNC Horizontal Boring Machine |
| Structure | - | Heavy Duty Table Type CNC Floor Mounted Machine |
| Application | - | Boring, Milling, Drilling, Facing & Precision Heavy Machining |
| CNC Axes | - | X / Y / Z / W + B Axis Rotary Table |
| Description | Unit | Value |
|---|---|---|
| Cast Iron Structure FG260 | - | Included |
| LM Guideways & Ballscrews | - | Included |
| Automatic Lubrication | - | Included |
| Coolant Tank | - | Included |
| Electrical Panel with AC | - | Included |
| Telescopic Covers | - | Included |
| Hydraulic Tool Clamp | - | Included |
| Levelling Pads | - | Included |
| Manuals | - | Included |
| Description | Unit | Value |
|---|---|---|
| Linear Scales – All Axes | - | Optional |
| Touch Probe | - | Optional |
| Tool Probe | - | Optional |
| Chip Conveyor | - | Optional |
| Right Angle Head | - | Optional |
| Universal Milling Head | - | Optional |
| Coolant Through Spindle (CTS) | - | Optional |
| Angle Plates / Surface Plates | - | Optional |
| Description | Unit | Value |
|---|---|---|
| Suitable Industries | - | Oil & Gas, Energy, Heavy Machinery, Railways, Marine |
| Description | Unit | Value |
|---|---|---|
| Typical Jobs | - | Marine Propeller Shafts, Gas Turbine Housings, Hydraulic Press Frames, Generator Rotors, Mining Structures, Wind Turbine Bases, Heavy Gearboxes |
Application Components

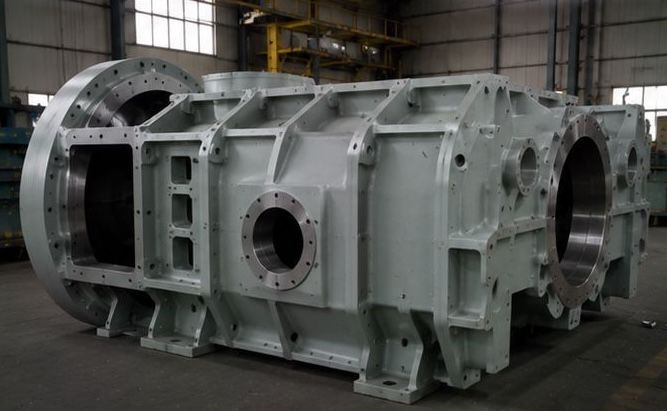

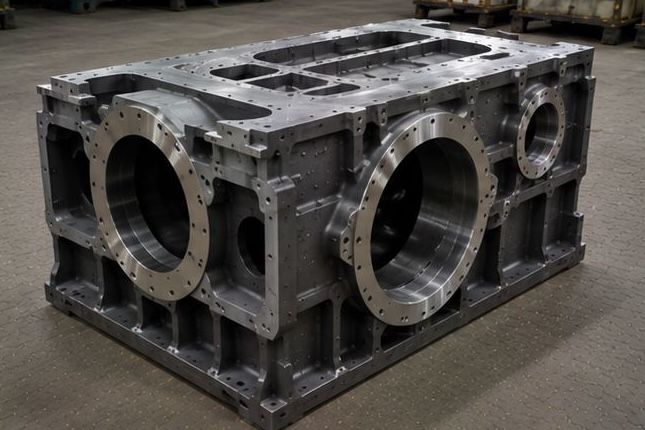

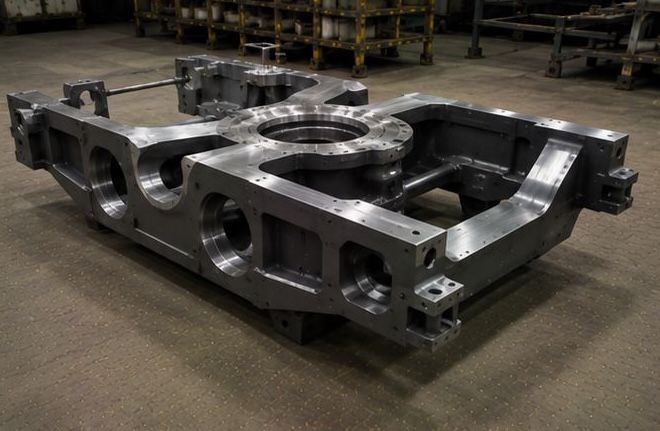

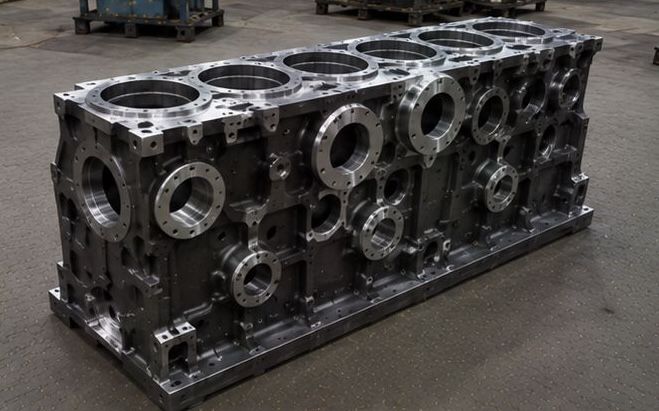

Casing Engine Block Frame Housing
Machine Highlights
Precision CNC Machining
Advanced CNC control system with high precision spindle and integrated B-axis rotary table for accurate multi-face machining applications.
High Productivity
High torque spindle motor with rapid traverse rates and optional ATC system for reduced cycle times and improved machining efficiency.
Flexible Machining Capability
Suitable for boring, milling, drilling, and facing operations with multiple optional heads and advanced accessory integration.
