Extra Heavy Duty Structure
Heavy FG260 cast iron construction with hybrid guideways designed for rigidity, vibration damping, and ultra-heavy machining stability.
CNC Horizontal Boring Machines
Precision. Power. Performance.
CNC HBM 200 Horizontal Boring Machine
The CNC HBM 200 Horizontal Boring Machine from Sahil Machines is an extra heavy-duty CNC solution designed for precision boring, milling, drilling, and facing of ultra-large industrial components. Built with a rigid hybrid guideway structure and high precision spindle system, it delivers exceptional machining stability, accuracy, and productivity across power, shipbuilding, railways, oil & gas, and heavy engineering industries.
Quick Technical Details
- Spindle Diameter / Facing Capacity200 mm / 1600 mm
- Table Size / Travels2500 × 2500 mm / Up to 6000 × 3500 × 2500 mm
- Job Load Capacity20 Ton
- Axis ConfigurationX + Y + Z + W Axis + B Axis Rotary Table
- Speed Range0 – 1800 RPM
- Motor Power45 kW
- Accuracy StandardPositioning Accuracy up to 20 Micron
Product Documents
Get all the technical details you need.
CNC HBM 200 - CNC Horizontal Boring Machine
Full Technical Specifications | Sahil Machines • Boring Division
| Description | Unit | Value |
|---|---|---|
| Spindle Diameter | mm | 200 |
| Maximum Boring Capacity | mm | 900 |
| Facing Head Diameter | mm | 1000 (Optional) |
| Maximum Facing Diameter | mm | 1600 |
| U Axis Travel | mm | 250 |
| Description | Unit | Value |
|---|---|---|
| Rotary Table Size | mm | 2500 × 2500 |
| Table Rotation | Deg | 360° (0.001°) |
| Table Rotation Speed | rpm | 0.8 |
| Maximum Load on Table | Ton | 20 |
| Number of T Slots | Nos | 11 |
| T Slot Size | mm | 32 |
| T Slot Pitch | mm | 180 |
| Description | Unit | Value |
|---|---|---|
| X Axis Travel | mm | 3000 / 4000 / 5000 / 6000 |
| Y Axis Travel | mm | 2500 / 3500 |
| Z Axis Travel (Ram) | mm | 2000 / 2500 |
| W Axis Travel (Spindle) | mm | 600 / 800 |
| Description | Unit | Value |
|---|---|---|
| Spindle Taper | - | BT 50 / ISO 50 |
| Spindle Speed Range | rpm | 0 – 1800 |
| Main Motor Power | kW | 45 |
| Spindle Cooling | - | Forced Lubrication with Oil Chiller |
| Feed Rate | m/min | 4 |
| Rapid Feed XYZ | m/min | 8 |
| Rapid Feed W Axis | m/min | 4 |
| Description | Unit | Value |
|---|---|---|
| Tool Magazine Capacity | Nos | 40 / 60 |
| Tool Shank | - | BT 50 / ISO 50 |
| Maximum Tool Diameter | mm | 150 / 250 |
| Maximum Tool Length | mm | 500 |
| Maximum Tool Weight | kg | 25 |
| Tool Change Time | sec | 18 |
| Description | Unit | Value |
|---|---|---|
| Positioning Accuracy | micron | 20 |
| Repeatability | micron | 10 |
| B Axis Accuracy | sec | ±8 |
| Description | Unit | Value |
|---|---|---|
| Connected Load | kVA | 120 |
| Machine Weight | MT | 65 |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Siemens / Fanuc / Heidenhain |
| Interface | - | USB / Ethernet |
| Programming | - | ISO G Code |
| Functions | - | Rigid Tapping / Macro / Diagnostics |
| Description | Unit | Value |
|---|---|---|
| Machine Type | - | CNC Horizontal Boring Machine |
| Structure | - | Extra Heavy Duty Table Type CNC Floor Mounted Machine |
| Application | - | Heavy Boring, Milling, Drilling, Facing & Large Component Machining |
| CNC Axes | - | X / Y / Z / W + B Axis Rotary Table |
| Description | Unit | Value |
|---|---|---|
| Heavy Cast Iron Structure FG260 | - | Included |
| LM Guideways / Box Ways Hybrid | - | Included |
| Automatic Lubrication | - | Included |
| Coolant Tank | - | Included |
| Electrical Panel with AC | - | Included |
| Telescopic Covers | - | Included |
| Hydraulic Tool Clamp | - | Included |
| Levelling Pads | - | Included |
| Manuals | - | Included |
| Description | Unit | Value |
|---|---|---|
| Linear Scales – All Axes | - | Optional |
| Touch Probe | - | Optional |
| Tool Probe | - | Optional |
| Chip Conveyor | - | Optional |
| Universal Milling Head | - | Optional |
| Right Angle Head | - | Optional |
| Automatic Facing Head | - | Optional |
| Coolant Through Spindle (CTS) | - | Optional |
| Angle Plates / Floor Plates | - | Optional |
| Description | Unit | Value |
|---|---|---|
| Suitable Industries | - | Power, Shipbuilding, Railways, Mining, Oil & Gas, Heavy Engineering |
| Description | Unit | Value |
|---|---|---|
| Typical Jobs | - | Turbine Casings, Large Gearbox Housings, Ship Engine Blocks, Mining Structures, Reactor Components, Wind Energy Bases, Press Frames, Heavy Fabricated Structures |
Application Components

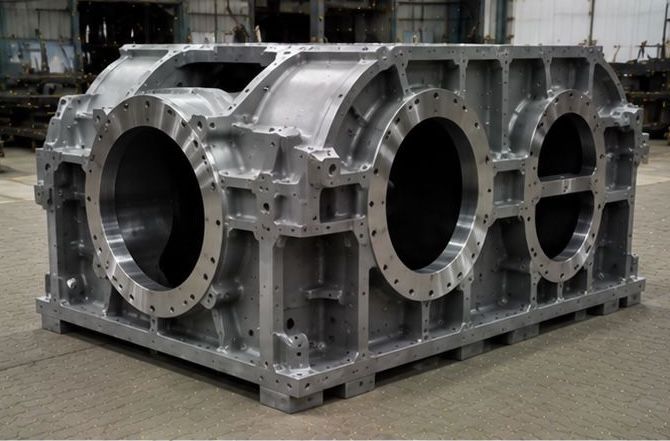

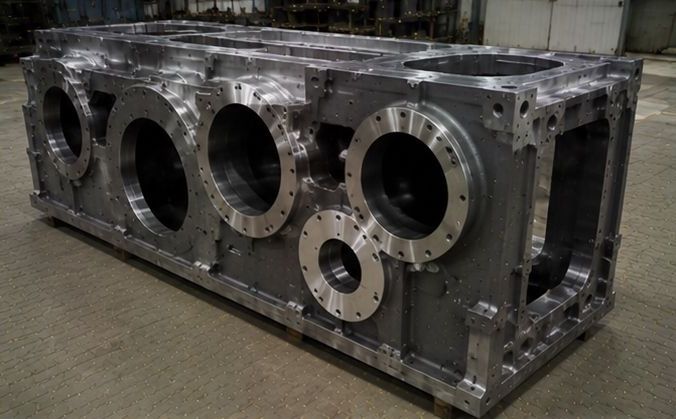

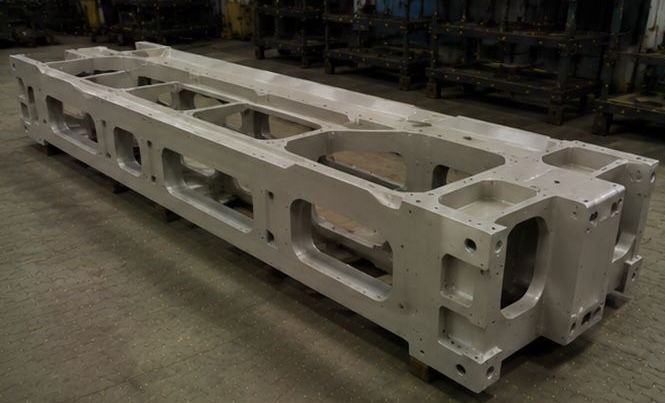

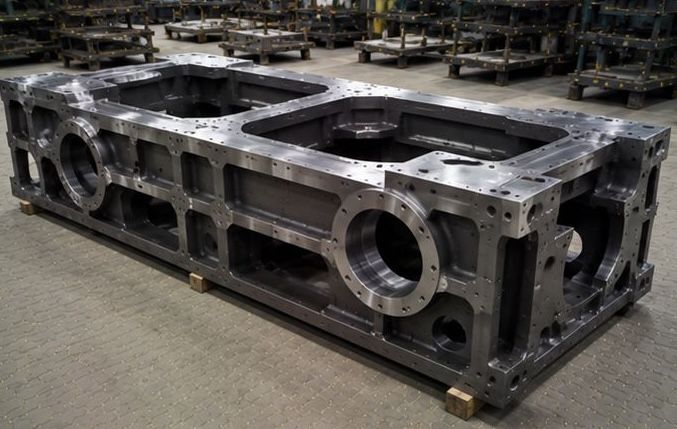

Casing Foundation Bed Housing Main Frame
