Ram Type Machining
Heavy duty ram type structure provides rigidity and stability for precision heavy machining operations.
Precision. Power. Performance.
CNC VTM 1000 Ram Type Vertical Turn Mill Machine
The CNC VTM 1000 Ram Type Vertical Turn Mill Machine is a heavy duty double column machine designed for turning, milling, drilling, boring, and tapping operations on precision heavy components. Built with a rigid double column structure, fixed cross rail, hydraulic counter balanced ram, and live spindle system, the machine delivers stable machining performance with high rigidity and accuracy.
Quick Technical Details
- Maximum Swing Diameter1500 mm
- Maximum Turning Diameter1500 mm
- Maximum Working Height1000 mm
- Main Spindle Power25 kW
- Chuck Diameter1000 mm
- Live Spindle SpeedUp to 2400 RPM
- Accuracy StandardAs per IS Standards
Product Documents
Get all the technical details you need.
CNC VTM 1000 Vertical Turn Mill Machine
Full Technical Specifications | Sahil Machines • Turn Mill Division
| Description | Unit | Value |
|---|---|---|
| Model | - | CNC VTM 1000 |
| Machine Type | - | CNC Ram Type Vertical Turn Mill Machine |
| Structure | - | Double Column with Single Ram Head |
| Machining Capability | - | Turning, Milling, Drilling, Boring, Tapping |
| CNC Capability | - | Simultaneous Turning + Milling + C Axis Control |
| Application | - | Precision Heavy Duty Machining of Complex Components |
| Accuracy Standard | - | As per IS Standards / ISO Compliance |
| Description | Unit | Value |
|---|---|---|
| Maximum Swing Diameter | mm | 1500 |
| Maximum Turning Diameter | mm | 1500 |
| Maximum Working Height | mm | 1000 |
| Maximum Load Capacity | kg | 5000 |
| Description | Unit | Value |
|---|---|---|
| Chuck Diameter | mm | 1000 |
| Chuck Type | - | 4 Jaw Manual / Hydraulic Optional |
| Main Drive Motor | kW | 25 |
| Speed Range | rpm | 5 – 240 (2 Ranges) |
| Table Slots | Nos | 4 T Slots + 4 Auxiliary Slots |
| Main Drive Type | - | Servo AC Main Drive |
| Description | Unit | Value |
|---|---|---|
| Number of Columns | Nos | 2 |
| Top Support | - | Heavy Duty Top Beam Support |
| Base Construction | - | Graded In-House Castings |
| Machine Design | - | High Rigidity Double Column Frame |
| Description | Unit | Value |
|---|---|---|
| Cross Rail Type | - | Fixed |
| Guideways | - | Hardened & Ground Box Guideways |
| Ram Horizontal Travel (X) | mm | 750 |
| Ram Vertical Travel (Z) | mm | 1000 |
| Feed Rate | m/min | 0.1 – 4 |
| Rapid Traverse | m/min | 4 |
| Ram Section | mm | 250 × 250 |
| Maximum Tool Size | mm | 40 × 40 |
| Ram Balancing | - | Hydraulic Counter Balanced |
| Ram Material | - | EN9 Forged Steel |
| Description | Unit | Value |
|---|---|---|
| Spindle Taper | - | BT50 |
| Spindle Speed | rpm | Up to 2400 |
| Tool Clamping | - | Hydraulic |
| Live Spindle Motor | kW | 5.5 / 7.5 |
| Operations | - | Milling, Drilling, Tapping, Thread Milling |
| Description | Unit | Value |
|---|---|---|
| Tool Positions | Nos | 12 / 16 / 20 |
| Maximum Tool Size | mm | 40 |
| Maximum Tool Length | mm | 300 |
| Maximum Tool Weight | kg | 25 |
| Description | Unit | Value |
|---|---|---|
| Gearbox | - | Bonfiglioli / Equivalent |
| Gears | - | EN9 / EN353 Alloy Steel |
| Bearings | - | SKF / KOYO / FAG |
| Ball Screws | - | Hiwin / PMI |
| Feed Drives | - | AC Servo Motors |
| Description | Unit | Value |
|---|---|---|
| Total Connected Power | hp | 45 |
| Main Motor | kW | 25 |
| Feed Motors | Nm | 40 / 40 |
| Lubrication Motor | hp | 0.5 |
| Coolant Motor | hp | 0.5 |
| Hydraulic Motor | hp | 2 |
| Power Supply | - | 3 Phase, 440V, 50Hz |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Siemens 828D / Fanuc 0i TF Plus |
| Electricals | - | Siemens / ABB |
| Communication | - | Ethernet / USB |
| Functions | - | C Axis, Rigid Tapping, Thread Milling |
| Description | Unit | Value |
|---|---|---|
| Length | mm | 3500 |
| Width | mm | 3500 |
| Height | mm | 3500 |
| Description | Unit | Value |
|---|---|---|
| 4 Jaw Chuck | - | Included |
| Live Spindle | - | Included |
| C Axis | - | Included |
| Centralized Lubrication | - | Included |
| Hydraulic Counter Balance | - | Included |
| Coolant & Air Gun | - | Included |
| Foundation Bolts | - | Included |
| Work Light + LED Tower Lamp | - | Included |
| Description | Unit | Value |
|---|---|---|
| Hydraulic Chuck | - | Optional |
| Machine Guarding | - | Optional |
| Through Spindle Coolant | - | Optional |
| Chip Conveyor with Coolant Tank | - | Optional |
| 2 Step Gearbox | - | Optional |
| Linear Scales | - | Optional |
| Universal Head Manual / Automatic | - | Optional |
| 90° Angular Head | - | Optional |
| Tool Probe | - | Optional |
| Job Probe | - | Optional |
| Voltage Stabilizer / Transformer | - | Optional |
| Grinding Attachment | - | Optional |
Application Components

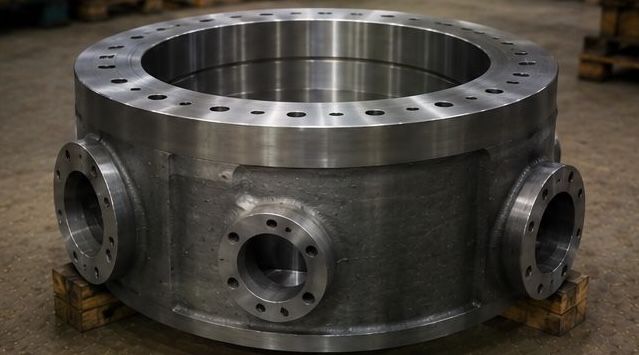

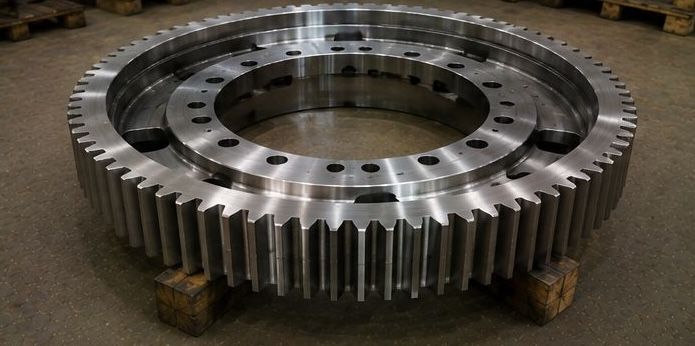

Cylinder Housing Gear Ring Ring Slewing Ring
Machine Highlights
Live Spindle Technology
Integrated live spindle system supports milling, drilling, tapping, and thread milling operations.
Double Column Construction
Rigid double column frame with top beam support ensures vibration free machining performance.
Advanced Cnc Control
Supports Siemens and Fanuc CNC systems with Ethernet communication and C Axis functionality.
