Ultra Heavy Duty Double Column Design
Rigid double column structure with Meehanite castings ensures vibration free machining even under heavy cutting loads.
Precision. Power. Performance.
CNC VTM 5000 Ram Type Vertical Turn Mill Machine
The CNC VTM 5000 Ram Type Vertical Turn Mill Machine is a high rigidity double column turn mill solution developed for precision machining of extra large and heavy industrial components requiring turning, milling, drilling, boring, tapping, and interpolation operations in a single setup.
Quick Technical Details
- Maximum Swing Diameter6000 mm
- Maximum Turning Diameter6000 mm
- Chuck Diameter5000 mm
- Maximum Load Capacity65000 kg
- Main Motor Power90 / 110 kW
- Live Spindle Motor30 kW
- CNC CapabilityC Axis + Live Tooling + Interpolation
Product Documents
Get all the technical details you need.
CNC VTM 5000 Vertical Turn Mill Machine
Full Technical Specifications | Sahil Machines • Turn Mill Division
| Description | Unit | Value |
|---|---|---|
| Model | - | CNC VTM 5000 |
| Machine Type | - | CNC Ram Type Vertical Turn Mill Machine |
| Structure | - | Double Column with Single Ram Head |
| Machining Capability | - | Turning, Milling, Drilling, Boring, Tapping |
| CNC Capability | - | Simultaneous Turning + Milling + C Axis Control |
| Application | - | Precision Machining of Extra Large Components |
| Accuracy Standard | - | As per IS Standards / ISO 230 Compliance |
| Description | Unit | Value |
|---|---|---|
| Maximum Swing Diameter | mm | 6000 |
| Maximum Turning Diameter | mm | 6000 |
| Maximum Working Height | mm | 2500 |
| Optional Working Height | mm | Up to 3500 |
| Maximum Load Capacity | kg | 65000 |
| Description | Unit | Value |
|---|---|---|
| Chuck Diameter | mm | 5000 |
| Chuck Type | - | 4 Jaw Manual / Hydraulic Optional |
| Main Drive Motor | kW | 90 / 110 |
| Speed Range | rpm | 1 – 20 |
| Main Drive Type | - | AC Servo Main Drive with Multi Stage Gearbox |
| Table Bearing | - | Heavy Duty Roller / Hydrostatic Optional |
| C Axis Resolution | Deg | 0.001° |
| Table Clamping | - | Hydraulic |
| Description | Unit | Value |
|---|---|---|
| Number of Columns | Nos | 2 |
| Column Construction | - | Heavy Ribbed Meehanite Cast Structure |
| Top Beam | - | Box Type Heavy Duty Bridge Beam |
| Base Construction | - | Stress Relieved Heavy Cast Base |
| Machine Design | - | High Rigidity Double Column Frame |
| Description | Unit | Value |
|---|---|---|
| Cross Rail Type | - | Fixed / Optional Movable |
| Guideways | - | Hardened & Ground Box Guideways |
| Ram Horizontal Travel (X Axis) | mm | 3000 |
| Ram Vertical Travel (Z Axis) | mm | 1200 Standard |
| Optional Ram Travel | mm | 1500 / 2000 |
| Feed Rate | m/min | 0.1 – 3 |
| Rapid Traverse | m/min | 4 |
| Ram Section | mm | 450 × 450 |
| Maximum Tool Size | mm | 50 × 50 |
| Ram Balancing | - | Hydraulic Counter Balanced |
| Ram Material | - | EN9 Forged Steel |
| Description | Unit | Value |
|---|---|---|
| Spindle Taper | - | BT50 / ISO50 |
| Spindle Speed | rpm | Up to 1800 |
| Tool Clamping | - | Hydraulic |
| Live Spindle Motor | kW | 30 |
| Operations | - | Milling, Drilling, Tapping, Thread Milling, Interpolation |
| Description | Unit | Value |
|---|---|---|
| Tool Positions | Nos | 20 / 24 / 32 / 40 |
| Maximum Tool Length | mm | 450 |
| Maximum Tool Weight | kg | 35 |
| Tool Magazine Type | - | Chain Type |
| Description | Unit | Value |
|---|---|---|
| Gearbox | - | Bonfiglioli / Flender / ZF |
| Gears | - | Hardened Alloy Steel |
| Bearings | - | SKF / FAG / KOYO |
| Ball Screws | - | Hiwin / PMI |
| Feed Drives | - | Digital AC Servo Motors |
| Description | Unit | Value |
|---|---|---|
| Total Connected Power | hp | 180 |
| Main Motor | kW | 90 / 110 |
| Feed Motors | Nm | 50 / 50 |
| Live Spindle Motor | kW | 30 |
| Lubrication Motor | hp | 1 |
| Coolant Motor | hp | 5 |
| Hydraulic Motor | hp | 7.5 |
| Power Supply | - | 3 Phase, 440V, 50Hz |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Siemens One / Siemens 828D / Fanuc |
| Electricals | - | Siemens / ABB |
| Communication | - | Ethernet / USB |
| Functions | - | C Axis, Rigid Tapping, Polar Interpolation, Thread Milling |
| Description | Unit | Value |
|---|---|---|
| 4 Jaw Chuck | - | Included |
| Live Spindle | - | Included |
| C Axis | - | Included |
| Centralized Lubrication | - | Included |
| Hydraulic Counter Balance | - | Included |
| Coolant & Air Gun | - | Included |
| Telescopic Covers | - | Included |
| Work Light + Tower Lamp | - | Included |
| Foundation Bolts | - | Included |
| Description | Unit | Value |
|---|---|---|
| Hydraulic Chuck | - | Optional |
| Full Guarding | - | Optional |
| Through Spindle Coolant | - | Optional |
| Chip Conveyor | - | Optional |
| Linear Scales | - | Optional |
| Universal Head Manual / Automatic | - | Optional |
| 90° Angular Head | - | Optional |
| Tool Probe | - | Optional |
| Job Probe | - | Optional |
| Voltage Stabilizer / Transformer | - | Optional |
Application Components

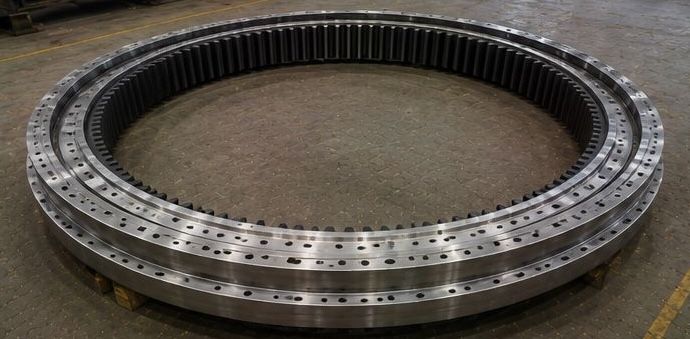

Hydro Structure Ring Assembly Wind Turbine Ring Windmill Structure
Machine Highlights
High Torque Table Drive
Multi stage gearbox driven table provides high torque low speed turning capability for large diameter heavy jobs.
Live Tooling With C Axis
Integrated C Axis and live spindle arrangement supports complete turn mill machining in a single setup.
Large Section Ram
450 × 450 mm ram section provides superior rigidity during heavy milling, boring, and interpolation operations.
