CNC VTM 6000 Ram Type Vertical Turn Mill Machine
The CNC VTM 6000 Ram Type Vertical Turn Mill Machine is an ultra heavy duty double column turn mill solution developed for precision machining of mega sized industrial components requiring turning, milling, drilling, boring, tapping, and interpolation operations in a single setup.
Quick Technical Details
- Maximum Swing Diameter8000 mm
- Maximum Turning Diameter8000 mm
- Chuck Diameter6000 mm
- Maximum Load Capacity100000 kg
- Main Motor Power110 / 132 kW
- Live Spindle Motor37 kW
- CNC CapabilityC Axis + Live Tooling + Interpolation
Product Documents
Get all the technical details you need.
CNC VTM 6000 Vertical Turn Mill Machine
Full Technical Specifications | Sahil Machines • Turn Mill Division
| Description | Unit | Value |
|---|---|---|
| Model | - | CNC VTM 6000 |
| Machine Type | - | CNC Ram Type Vertical Turn Mill Machine |
| Structure | - | Double Column with Single Ram Head |
| Machining Capability | - | Turning, Milling, Drilling, Boring, Tapping |
| CNC Capability | - | Simultaneous Turning + Milling + C Axis Control |
| Application | - | Precision Machining of Mega Sized Components |
| Accuracy Standard | - | As per IS Standards / ISO 230 Compliance |
| Description | Unit | Value |
|---|---|---|
| Maximum Swing Diameter | mm | 8000 |
| Maximum Turning Diameter | mm | 8000 |
| Maximum Working Height | mm | 3000 |
| Optional Working Height | mm | Up to 4000 |
| Maximum Load Capacity | kg | 100000 |
| Description | Unit | Value |
|---|---|---|
| Chuck Diameter | mm | 6000 |
| Chuck Type | - | 4 Jaw Manual / Hydraulic Optional |
| Main Drive Motor | kW | 110 / 132 |
| Speed Range | rpm | 0.5 – 16 |
| Main Drive Type | - | Heavy Duty Servo + Multi Stage Gearbox |
| Table Bearing | - | Hydrostatic Optional |
| C Axis Resolution | Deg | 0.001° |
| Table Clamping | - | Hydraulic |
| Description | Unit | Value |
|---|---|---|
| Number of Columns | Nos | 2 |
| Column Construction | - | Meehanite Heavy Ribbed Cast Columns |
| Top Beam | - | Box Type Reinforced Bridge Beam |
| Base Construction | - | Stress Relieved Heavy Cast Base |
| Machine Design | - | Ultra Rigid Double Column Structure |
| Description | Unit | Value |
|---|---|---|
| Cross Rail Type | - | Fixed / Optional Movable |
| Guideways | - | Hardened & Ground Box Guideways |
| Ram Horizontal Travel (X Axis) | mm | 4000 |
| Ram Vertical Travel (Z Axis) | mm | 1500 Standard |
| Optional Ram Travel | mm | 2000 |
| Feed Rate | m/min | 0.1 – 3 |
| Rapid Traverse | m/min | 4 |
| Ram Section | mm | 400 × 400 |
| Maximum Tool Size | mm | 50 × 50 |
| Ram Balancing | - | Hydraulic Counter Balanced |
| Ram Material | - | EN9 Forged Steel |
| Description | Unit | Value |
|---|---|---|
| Spindle Taper | - | BT50 / ISO50 |
| Spindle Speed | rpm | Up to 1500 |
| Tool Clamping | - | Hydraulic |
| Live Spindle Motor | kW | 37 |
| Operations | - | Milling, Drilling, Tapping, Thread Milling, Interpolation |
| Description | Unit | Value |
|---|---|---|
| Tool Positions | Nos | 24 / 32 / 40 / 60 |
| Maximum Tool Length | mm | 500 |
| Maximum Tool Weight | kg | 40 |
| Tool Magazine Type | - | Chain Type |
| Description | Unit | Value |
|---|---|---|
| Gearbox | - | Flender / Bonfiglioli / ZF |
| Gears | - | Hardened Alloy Steel |
| Bearings | - | SKF / FAG / KOYO |
| Ball Screws | - | Hiwin / PMI |
| Feed Drives | - | Digital AC Servo Motors |
| Description | Unit | Value |
|---|---|---|
| Total Connected Power | hp | 240 |
| Main Motor | kW | 110 / 132 |
| Feed Motors | Nm | 50 / 50 |
| Live Spindle Motor | kW | 37 |
| Lubrication Motor | hp | 1 |
| Coolant Motor | hp | 7.5 |
| Hydraulic Motor | hp | 10 |
| Power Supply | - | 3 Phase, 440V, 50Hz |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Siemens One / Fanuc |
| Electricals | - | Siemens / ABB |
| Communication | - | Ethernet / USB |
| Functions | - | C Axis, Rigid Tapping, Polar Interpolation, Thread Milling |
| Description | Unit | Value |
|---|---|---|
| 4 Jaw Chuck | - | Included |
| Live Spindle | - | Included |
| C Axis | - | Included |
| Centralized Lubrication | - | Included |
| Hydraulic Counter Balance | - | Included |
| Coolant & Air Gun | - | Included |
| Telescopic Covers | - | Included |
| Work Light + Tower Lamp | - | Included |
| Foundation Bolts | - | Included |
| Description | Unit | Value |
|---|---|---|
| Hydraulic Chuck | - | Optional |
| Full Guarding | - | Optional |
| Through Spindle Coolant | - | Optional |
| Chip Conveyor | - | Optional |
| Linear Scales | - | Optional |
| Universal Head Manual / Automatic | - | Optional |
| 90° Angular Head | - | Optional |
| Tool Probe | - | Optional |
| Job Probe | - | Optional |
| Voltage Stabilizer / Transformer | - | Optional |
Application Components

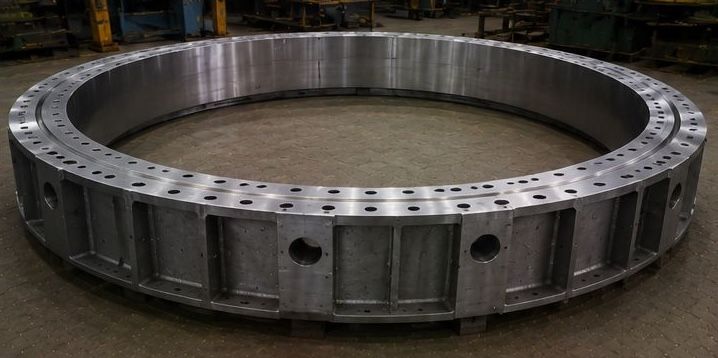

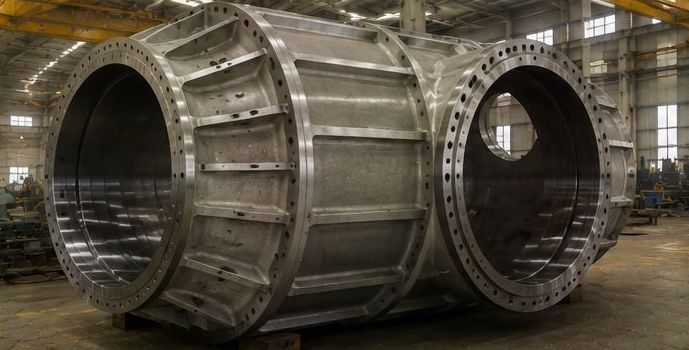

Bearing Ring Hub Ring Gear Wind Turbine Ring
Machine Highlights
High Torque Table Drive
Multi stage gearbox driven table delivers powerful low speed torque for large diameter heavy component machining.
Live Tooling With C Axis
Integrated live spindle and C Axis interpolation allow complete turn mill machining in a single setup.
Large Section Ram Design
400 × 400 mm ram section provides high rigidity during heavy boring and milling operations.
