CNC VTM 1000
TURRET TYPE VERTICAL TURN MILL MACHINE
The CNC VTM 1000 Vertical Turn Mill Machine is a heavy duty turret type multi tasking machine designed for simultaneous turning, milling, drilling, and tapping operations. Built with a rigid vertical column structure, servo spindle drive, and live tooling capability, the machine delivers high rigidity, precision, and productivity for heavy machining applications.
Quick Technical Details
- Maximum Swing Diameter1600 mm
- Maximum Turning Diameter1500 mm
- Maximum Turning Length1000 mm
- Main Spindle Power30 kW
- Maximum Chuck Diameter1000 mm
- Live Tool SpeedUp to 4000 RPM
- Accuracy StandardAs per IS Standards
Product Documents
Get all the technical details you need.
CNC VTM 1000 Vertical Turn Mill Machine
Full Technical Specifications | Sahil Machines • Turn Mill Division
| Description | Unit | Value |
|---|---|---|
| Model | - | CNC VTM 1000 |
| Machine Type | - | Turret Type Vertical Turn Mill Machine |
| Structure | - | Vertical Column Type with Heavy Duty Base |
| Machining Capability | - | Turning, Milling, Drilling, Tapping |
| CNC Capability | - | Simultaneous Turning + Milling + C Axis |
| Application | - | Precision Heavy Components & Multi Process Machining |
| Accuracy Standard | - | As per IS Standards |
| Description | Unit | Value |
|---|---|---|
| Maximum Swing of Job Diameter | mm | 1600 |
| Maximum Chuck Diameter | mm | 1000 |
| Maximum Turning Diameter | mm | 1500 |
| Maximum Turning Length | mm | 1000 |
| Maximum Load Capacity | kg | 4000 |
| Description | Unit | Value |
|---|---|---|
| Spindle Nose | - | A2-15 |
| Hole Through Spindle | mm | 130 |
| Spindle Speed | rpm | 800 |
| Main Spindle Motor | kW | 30 |
| Drive Type | - | Servo Main Drive |
| Chuck Type | - | Hydraulic Chuck 1000 mm |
| C Axis Resolution | Deg | 0.001° |
| Description | Unit | Value |
|---|---|---|
| X Axis Stroke | mm | 800 |
| Z Axis Stroke | mm | 1000 |
| X Axis Rapid | m/min | 18 |
| Z Axis Rapid | m/min | 18 |
| Guideways | - | Heavy Duty LM Linear Guideways |
| Feed Drives | - | AC Servo Motors |
| Description | Unit | Value |
|---|---|---|
| Turret Type | - | Heavy Duty Live Tool Turret |
| Turret Make | - | Pragati |
| Number of Stations | Nos | 12 |
| Rotation | - | Bi-Directional |
| Maximum Boring Bar Diameter | mm | 50 |
| Maximum Power Tool Drive | kW | 11 |
| Maximum Tool Speed | rpm | 4000 |
| Maximum Torque | Nm | 35 |
| Description | Unit | Value |
|---|---|---|
| Coolant Tank Capacity | Litre | 350 |
| Hydraulic Pump Capacity | lpm | 22 |
| Hydraulic Tank Capacity | Litre | 75 |
| Lubrication System | - | Centralized Automatic Lubrication |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Siemens 828D / Fanuc 0i TF |
| CNC Configuration | - | 2 Axis + C Axis + Live Tooling |
| Electricals | - | Siemens / ABB |
| Communication | - | Ethernet / USB |
| Description | Unit | Value |
|---|---|---|
| Dimensions (L × W × H) | m | 5.2 × 3.2 × 4.2 |
| Machine Weight | kg | 23000 |
| Description | Unit | Value |
|---|---|---|
| Hydraulic Chuck 1000 mm | - | Included |
| 12 Station Live Tool Turret | - | Included |
| Servo Main Drive | - | Included |
| Auto Lubrication | - | Included |
| Coolant Tank | - | Included |
| Interlocked Panel | - | Included |
| Work Light | - | Included |
| Tower Lamp | - | Included |
| Description | Unit | Value |
|---|---|---|
| Tool Probe | - | Optional |
| Touch Probe | - | Optional |
| Chip Conveyor | - | Optional |
| Mist Collector | - | Optional |
| Voltage Stabilizer | - | Optional |
| Through Coolant Tooling | - | Optional |
Application Components

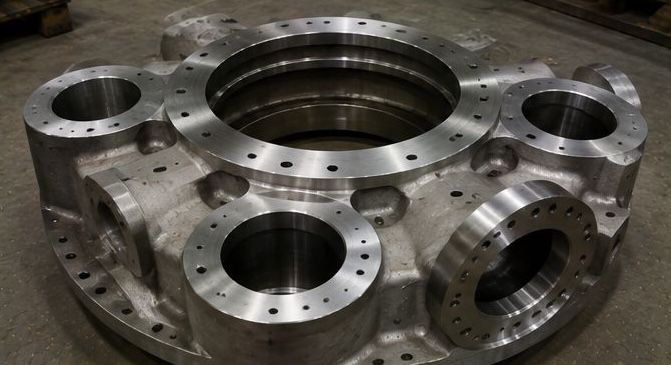

Body Casing Hyd Casing Ring Gear Blank
Machine Highlights
Heavy Duty Live Tooling
High torque live tool turret supports complex machining operations including drilling, tapping, and milling.
Rigid Vertical Construction
Heavy duty vertical column structure ensures stability during precision heavy machining operations.
Advanced CNC Integration
Supports Siemens and Fanuc CNC systems with Ethernet connectivity and C Axis interpolation capability.
