Multi Process Machining
Integrated turning, milling, drilling, and tapping operations improve machining productivity and reduce multiple setups.
Precision. Power. Performance.
CNC VTM 1250
TURRET TYPE VERTICAL TURN MILL MACHINE
The CNC VTM 1250 Vertical Turn Mill Machine is a heavy duty turret type multi tasking machine designed for simultaneous turning, milling, drilling, and tapping operations. Built with a rigid vertical column structure, servo spindle drive with gearbox, and live tooling capability, the machine delivers high rigidity, precision, and productivity for heavy component machining.
Quick Technical Details
- Maximum Swing Diameter1800 mm
- Maximum Turning Diameter1700 mm
- Maximum Turning Length1100 mm
- Main Spindle Power37 kW
- Maximum Chuck Diameter1250 mm
- Live Tool SpeedUp to 4000 RPM
- Accuracy StandardAs per IS Standards
Product Documents
Get all the technical details you need.
CNC VTM 1250 Vertical Turn Mill Machine
Full Technical Specifications | Sahil Machines • Turn Mill Division
| Description | Unit | Value |
|---|---|---|
| Model | - | CNC VTM 1250 |
| Machine Type | - | Turret Type Vertical Turn Mill Machine |
| Structure | - | Vertical Column Type with Heavy Base |
| Machining Capability | - | Turning, Milling, Drilling, Tapping |
| CNC Capability | - | Simultaneous Turning + Milling + C Axis |
| Application | - | Precision Heavy Components & Multi Process Machining |
| Accuracy Standard | - | As per IS Standards |
| Description | Unit | Value |
|---|---|---|
| Maximum Swing of Job Diameter | mm | 1800 |
| Maximum Chuck Diameter | mm | 1250 |
| Maximum Turning Diameter | mm | 1700 |
| Maximum Turning Length | mm | 1100 |
| Maximum Load Capacity | kg | 6000 |
| Description | Unit | Value |
|---|---|---|
| Spindle Nose | - | A2-15 |
| Hole Through Spindle | mm | 130 |
| Spindle Speed | rpm | 600 |
| Main Spindle Motor | kW | 37 |
| Drive Type | - | Servo Main Drive with Gearbox |
| Chuck Type | - | Hydraulic Chuck 1250 mm |
| C Axis Resolution | Deg | 0.001° |
| Description | Unit | Value |
|---|---|---|
| X Axis Stroke | mm | 900 |
| Z Axis Stroke | mm | 1100 |
| X Axis Rapid | m/min | 18 |
| Z Axis Rapid | m/min | 18 |
| Guideways | - | Heavy Duty LM / Box Guideway Hybrid |
| Feed Drives | - | AC Servo Motors |
| Description | Unit | Value |
|---|---|---|
| Turret Type | - | Heavy Duty Live Tool Turret |
| Turret Make | - | Pragati / Duplomatic Optional |
| Number of Stations | Nos | 12 |
| Rotation | - | Bi-Directional |
| Maximum Boring Bar Diameter | mm | 50 |
| Maximum Power Tool Drive | kW | 11 |
| Maximum Tool Speed | rpm | 4000 |
| Maximum Torque | Nm | 45 |
| Operations | - | Milling, Drilling, Tapping, Thread Milling |
| Description | Unit | Value |
|---|---|---|
| Coolant Tank Capacity | Litre | 450 |
| Hydraulic Pump Capacity | lpm | 25 |
| Hydraulic Tank Capacity | Litre | 100 |
| Lubrication System | - | Centralized Automatic Lubrication |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Siemens 828D / Siemens One / Fanuc 0i TF |
| CNC Configuration | - | 2 Axis + C Axis + Live Tooling |
| Electricals | - | Siemens / ABB |
| Communication | - | Ethernet / USB |
| Description | Unit | Value |
|---|---|---|
| Dimensions (L × W × H) | m | 5.8 × 3.6 × 4.8 |
| Machine Weight | kg | 28000 |
| Description | Unit | Value |
|---|---|---|
| Hydraulic Chuck 1250 mm | - | Included |
| 12 Station Live Tool Turret | - | Included |
| Servo Main Drive | - | Included |
| Auto Lubrication | - | Included |
| Coolant Tank | - | Included |
| Interlocked Electrical Panel | - | Included |
| Work Light | - | Included |
| Tower Lamp | - | Included |
| Tool Kit | - | Included |
| Description | Unit | Value |
|---|---|---|
| Tool Probe | - | Optional |
| Touch Probe | - | Optional |
| Chip Conveyor | - | Optional |
| Mist Collector | - | Optional |
| Voltage Stabilizer | - | Optional |
| Transformer | - | Optional |
| Full Enclosure Guarding | - | Optional |
Application Components

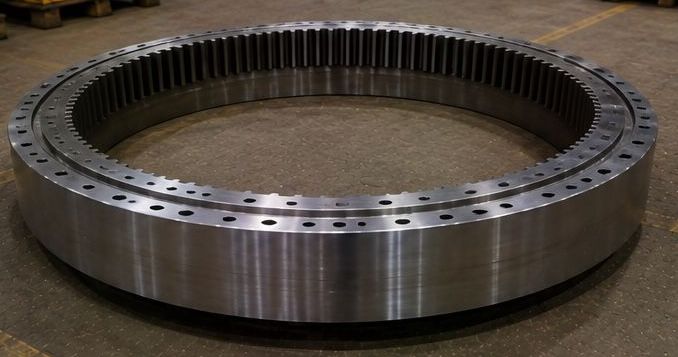

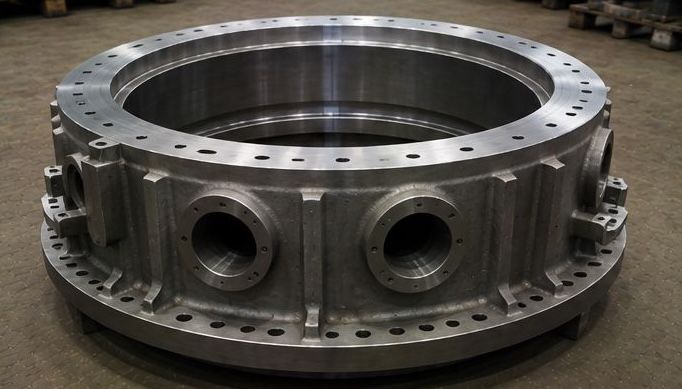

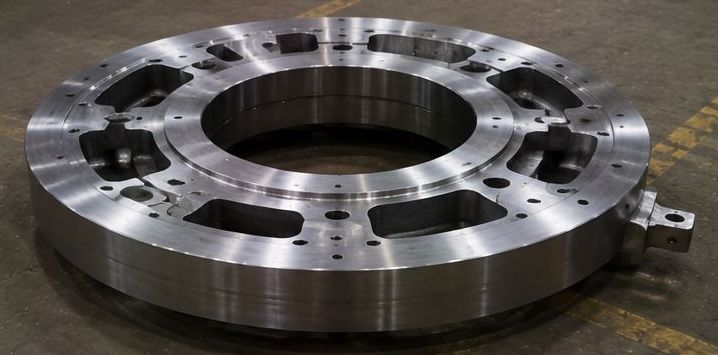

Casing Hyd Casing Ring Gear Blank Turbine Casing
Machine Highlights
Heavy Duty Live Tooling
High torque live tool turret supports milling, drilling, tapping, and thread milling operations.
Hybrid Guideway Construction
Heavy duty LM and box guideway hybrid structure provides rigidity with smooth axis movement.
Advanced CNC Integration
Supports Siemens and Fanuc CNC systems with Ethernet communication and live tooling functionality.
