Ram Type CNC Turning
Rigid ram head construction supports stable turning, facing, boring, and grooving operations.
Precision. Power. Performance.
CNC VTL 1000 Ram Type Vertical Turning Lathe
The CNC VTL 1000 is a ram type CNC Vertical Turning Lathe designed for turning, facing, boring, grooving, drilling, and heavy duty machining of large circular components. Available in VFD main motor 2-axis configuration and servo main motor C-axis ready configuration, the machine provides flexible CNC capability for standard turning as well as advanced interpolation and live tooling applications.
Quick Technical Details
- Table Diameter1000 mm
- Maximum Turning Diameter1500 mm
- Maximum Working Height1000 / 1500 mm
- Maximum Job Load3 MT
- CNC Configuration2 Axis / 2 + 1 Axis C Axis Ready
- Servo Spindle Power18.5 kW Standard
- Accuracy StandardAs per IS / ISO Standards
Product Documents
Get all the technical details you need.
CNC VTL 1000
Full Technical Specifications | Sahil Machines • Vertical Turning Division
| Description | Unit | Value |
|---|---|---|
| Model | - | CNC VTL 1000 |
| Machine Type | - | Ram Type CNC Vertical Turning Lathe |
| Variants Available | - | VFD Main Motor (2 Axis) / Servo Main Motor (C Axis Ready) |
| Structure | - | Twin Column Vertical Turning Center |
| Application | - | Turning, Facing, Boring, Grooving, Drilling, Heavy Duty Machining |
| Description | Unit | Value |
|---|---|---|
| Maximum Turning Diameter | mm | 1500 |
| Maximum Working Height | mm | 1000 / 1500 |
| Maximum Job Load | MT | 3 |
| Description | Unit | Value |
|---|---|---|
| Table Diameter | mm | 1000 |
| Chuck Type | - | 4 Jaw Chuck |
| Main Motor | hp | 15 |
| Drive Type | - | VFD with AC Motor |
| Table Speed Range | rpm | 5 – 40 |
| Control Configuration | - | 2 Axis (X + Z) |
| Description | Unit | Value |
|---|---|---|
| Table Diameter | mm | 1000 |
| Chuck Type | - | 4 Jaw Chuck |
| Main Motor | kW | 18.5 Standard / 15 Optional / 22 Heavy Duty |
| Drive Type | - | Servo Spindle Drive |
| Table Speed Range | rpm | 5 – 160 |
| C Axis | - | Available |
| Control Configuration | - | 2 + 1 Axis (X + Z + C) |
| Description | Unit | Value |
|---|---|---|
| Number of Columns | - | 2 |
| Guide Ways | - | Integral Guide Ways |
| Guide Way Protection | - | Bellow Covers |
| Top Support | - | Heavy Duty Beam Support |
| Description | Unit | Value |
|---|---|---|
| Vertical Travel | mm | 1000 / 1500 |
| Guide Ways | - | Integral / Hardened & Ground Steel Guide Ways |
| Protection | - | Bellow Covers |
| Rail Movement | - | Automatic Lifting & Lowering |
| Description | Unit | Value |
|---|---|---|
| Finish | - | Precision Ground Finish |
| Balancing | - | Hydraulic Counter Balanced |
| Horizontal Travel | mm | 600 |
| Vertical Ram Travel | mm | 600 / 800 |
| Feed Range | m/min | 0.1 – 1 |
| Rapid Traverse | m/min | 2 |
| Ram Cross Section | mm | 150 × 150 |
| Maximum Tool Size | mm | 30 × 30 |
| Description | Unit | Value |
|---|---|---|
| Number of Positions | Nos | 12 |
| Maximum Tool Section | mm | 40 |
| Maximum Tool Length | mm | 300 |
| Maximum Tool Weight | kg | 25 |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Fanuc 0i TF Plus / Siemens 828D |
| VFD Version | - | 2 Axis CNC |
| Servo Version | - | 2 + 1 Axis with C Axis |
| Optional Functions | - | Live Tooling, Milling, Rigid Tapping, Interpolation |
| Description | Unit | Value |
|---|---|---|
| Ram Head | - | Single Ram Head |
| Chuck | - | 1000 mm 4 Jaw Chuck |
| Lubrication | - | Centralized System |
| Electrical Panel | - | Interlocked Control Panel |
| Coolant Tank | - | Included |
| Tool Kit | - | Included |
| Description | Unit | Value |
|---|---|---|
| C Axis | - | Servo Version |
| Live Tooling | - | Optional |
| Milling Attachment | - | Optional |
| Tool Probe | - | Optional |
| ATC | - | Optional |
| Side Ram Head | - | Optional |
| Grinding Attachment | - | Optional |
| Chip Conveyor | - | Optional |
Application Components

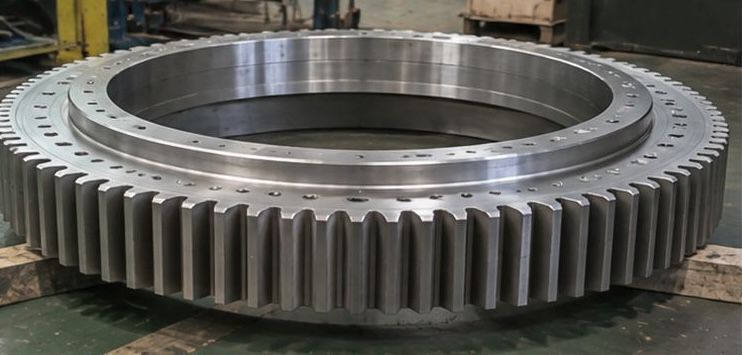

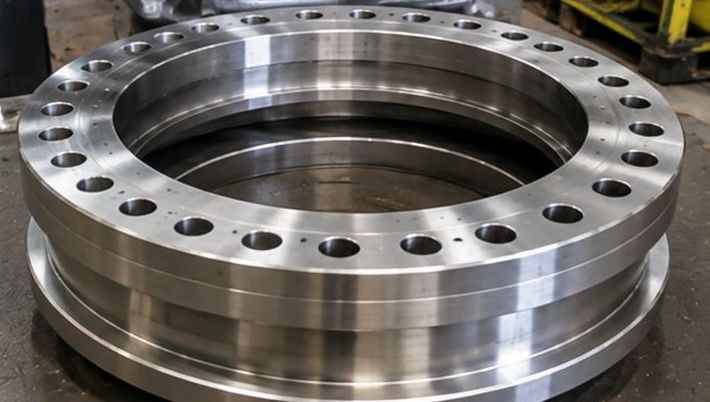

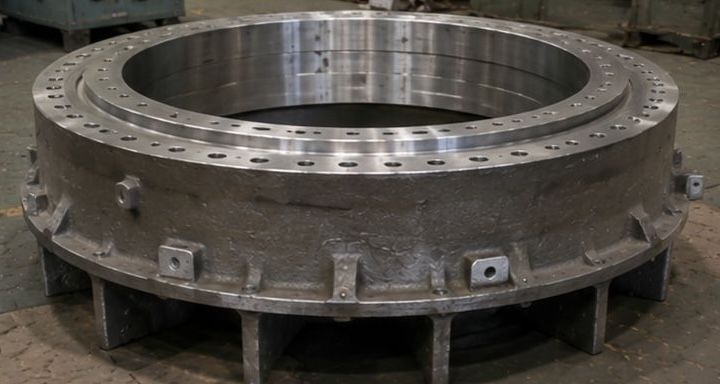

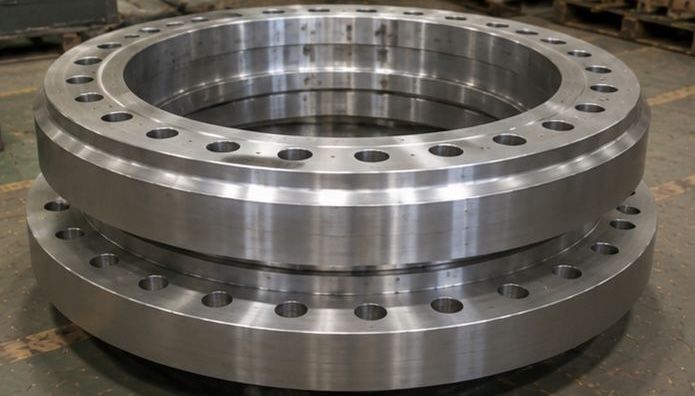

Casing Coupling Flange Gear
Machine Highlights
Dual Drive Configuration
Available with VFD main motor for 2-axis CNC turning or servo main motor for C-axis ready machining.
C Axis Ready Platform
Servo version supports C Axis, interpolation, live tooling, milling, and rigid tapping options.
Heavy Duty Twin Column Design
Twin column structure with automatic cross rail movement ensures rigidity for large component machining.
Want to See Our Product Videos?
Explore Sahil Machines’ YouTube channel for machine demonstrations, machining applications, and engineering insights.
