Heavy Duty Ram Type Construction
Rigid ram structure with twin column design ensures excellent cutting stability during heavy turning and boring operations.
Precision. Power. Performance.
CNC VTL 2000 Ram Type Vertical Turning Lathe
The CNC VTL 2000 is a heavy duty ram type CNC Vertical Turning Lathe engineered for turning, facing, boring, grooving, drilling, and precision machining of large diameter industrial components. Designed with a rigid twin column structure, hardened guideways, and optional servo spindle with C Axis capability, the machine delivers stable heavy duty machining performance for demanding industries.
Quick Technical Details
- Table Diameter2000 mm
- Maximum Turning Diameter2500 mm
- Maximum Working Height1500 / 2000 mm
- Maximum Job Load6 MT
- CNC Configuration2 Axis / 2 + 1 Axis C Axis Ready
- Servo Spindle PowerUp to 45 kW
- Accuracy StandardAs per IS / ISO Standards
Product Documents
Get all the technical details you need.
CNC VTL 2000
Full Technical Specifications | Sahil Machines • Vertical Turning Division
| Description | Unit | Value |
|---|---|---|
| Model | - | CNC VTL 2000 |
| Machine Type | - | Ram Type CNC Vertical Turning Lathe |
| Variants Available | - | VFD Main Motor (2 Axis) / Servo Main Motor (C Axis Ready) |
| Structure | - | Twin Column Vertical Turning Center |
| Application | - | Turning, Facing, Boring, Grooving, Drilling, Heavy Duty Machining |
| Description | Unit | Value |
|---|---|---|
| Maximum Turning Diameter | mm | 2500 |
| Maximum Working Height | mm | 1500 / 2000 |
| Maximum Job Load | MT | 6 |
| Description | Unit | Value |
|---|---|---|
| Table Diameter | mm | 2000 |
| Chuck Type | - | 4 Jaw Chuck |
| Main Motor | hp | 30 |
| Drive Type | - | VFD with AC Motor |
| Table Speed Range | rpm | 5 – 40 |
| Control Configuration | - | 2 Axis (X + Z) |
| Description | Unit | Value |
|---|---|---|
| Table Diameter | mm | 2000 |
| Chuck Type | - | 4 Jaw Chuck |
| Main Motor | kW | 30 Standard / 37 Optional / 45 Heavy Duty |
| Drive Type | - | Servo Spindle Drive |
| Table Speed Range | rpm | 5 – 120 |
| C Axis | - | Available |
| Control Configuration | - | 2 + 1 Axis (X + Z + C) |
| Description | Unit | Value |
|---|---|---|
| Number of Columns | - | 2 |
| Guide Ways | - | Integral Guide Ways |
| Guide Way Protection | - | Bellow Covers |
| Top Support | - | Heavy Duty Beam Support |
| Description | Unit | Value |
|---|---|---|
| Vertical Travel | mm | 1500 / 2000 |
| Guide Ways | - | Integral / Hardened & Ground Steel Guide Ways |
| Protection | - | Bellow Covers |
| Rail Movement | - | Automatic Lifting & Lowering |
| Description | Unit | Value |
|---|---|---|
| Finish | - | Precision Ground Finish |
| Balancing | - | Hydraulic Counter Balanced |
| Horizontal Travel | mm | 1050 |
| Vertical Ram Travel | mm | 800 / 1100 |
| Feed Range | m/min | 0.1 – 1 |
| Rapid Traverse | m/min | 2 |
| Ram Cross Section | mm | 220 × 220 |
| Maximum Tool Size | mm | 40 × 40 |
| Description | Unit | Value |
|---|---|---|
| Number of Positions | Nos | 12 |
| Maximum Tool Section | mm | 40 |
| Maximum Tool Length | mm | 300 |
| Maximum Tool Weight | kg | 25 |
| Description | Unit | Value |
|---|---|---|
| Gearbox Make | - | Bonfiglioli / Reputed Make |
| Gears Material | - | Alloy Steel EN9 / EN353 |
| Description | Unit | Value |
|---|---|---|
| Lubrication Type | - | Centrally Controlled Automatic Lubrication |
| Make | - | Cenlub / Lubrite |
| Description | Unit | Value |
|---|---|---|
| Ram Material | - | EN9 Forged Steel |
| Bearings | - | SKF / KOYO / FAG |
| Description | Unit | Value |
|---|---|---|
| Power Supply | - | 3 Phase, 440V, 50Hz |
| Voltage Fluctuation | - | ±10% |
| Auxiliary Drives | - | AC / Servo Motors |
| Electrical Components | - | Siemens / ABB |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Fanuc 0i TF Plus / Siemens 828D |
| VFD Version | - | 2 Axis CNC |
| Servo Version | - | 2 + 1 Axis with C Axis |
| Optional Functions | - | Live Tooling, Milling, Rigid Tapping, Interpolation |
| Description | Unit | Value |
|---|---|---|
| Feed Motor | Nm | 22 / 22 |
| Lubrication Motor | hp | 0.5 |
| Coolant Motor | hp | 1 |
| Description | Unit | Value |
|---|---|---|
| Length | mm | 5000 |
| Width | mm | 5000 |
| Height | mm | 3500 |
| Description | Unit | Value |
|---|---|---|
| Machine Accuracy | - | As per IS / ISO Standards |
| Description | Unit | Value |
|---|---|---|
| Ram Head | - | Single Ram Head |
| Chuck | - | 2000 mm 4 Jaw Chuck |
| Main Drive | - | VFD Drive |
| Lubrication | - | Centralized System |
| Electrical Panel | - | Interlocked Control Panel |
| Coolant Tank | - | Included |
| Tool Kit | - | Included |
| Description | Unit | Value |
|---|---|---|
| Additional Ram Head | - | Optional |
| Turret Head on Cross Rail | - | Optional |
| Threading Head | - | Optional |
| Side Ram Head | - | Optional |
| Milling Attachment | - | Optional |
| Grinding Attachment | - | Optional |
| Slotting Attachment | - | Optional |
| Coolant System | - | Optional |
| Live Tooling | - | Optional |
| Servo Main Motor with C Axis | - | Optional |
Application Components

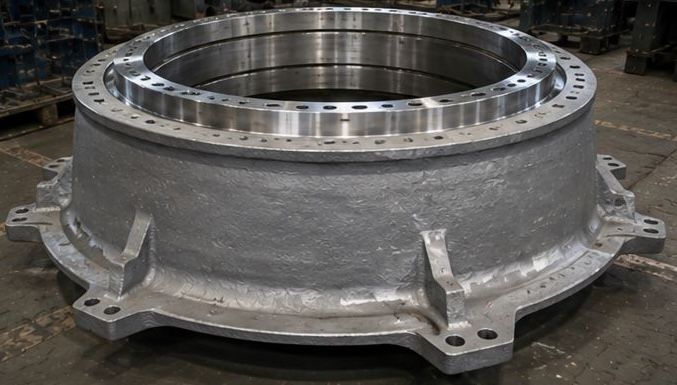

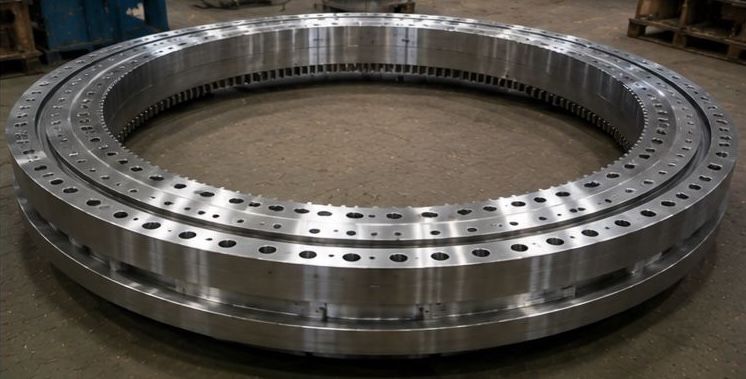

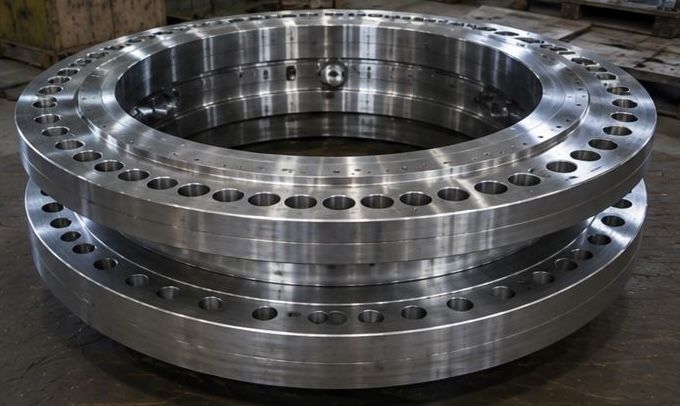

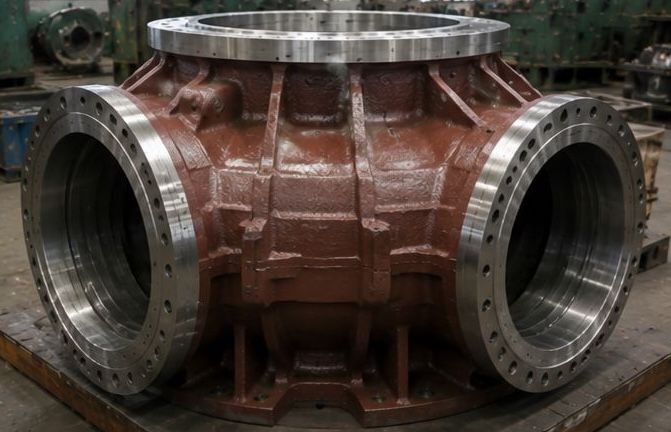

Casing Coupling Slew Ring Bearing Turbine Casing
Machine Highlights
Dual CNC Configuration
Available in economical VFD-based 2-axis configuration or advanced servo spindle version with C Axis capability.
Advanced Machining Capability
Optional live tooling, milling, interpolation, rigid tapping, and slotting attachments support multi-operation machining.
Precision Guideway Design
Integral hardened guideways with hydraulic counter balanced ram ensure long-term machining accuracy and rigidity.
