Ultra Heavy Duty Vertical Turning
Designed for continuous machining of oversized and high weight industrial components with high rigidity and stable cutting performance.
Precision. Power. Performance.
CNC VTL 6000 Ram Type Vertical Turning Lathe
The CNC VTL 6000 is an ultra heavy duty ram type CNC Vertical Turning Lathe engineered for machining large diameter and high weight industrial components requiring powerful cutting performance, rigidity, and precision. Designed with a twin column structure, hydraulic counter balanced ram, heavy duty table drive system, and CNC automation capability, the machine supports turning, facing, boring, grooving, drilling, and advanced interpolation operations.
Quick Technical Details
- Table Diameter6000 mm
- Maximum Turning Diameter8000 mm
- Maximum Working Height2000 / 4000 mm
- Maximum Job Load40 MT
- CNC Configuration2 Axis / 2 + 1 Axis C Axis Ready
- Servo Spindle PowerUp to 132 kW
- Accuracy StandardAs per IS / ISO Standards
Product Documents
Get all the technical details you need.
CNC VTL 6000 - Ram Type CNC Vertical Turning Lathe
Full Technical Specifications | Sahil Machines • Vertical Turning Division
| Description | Unit | Value |
|---|---|---|
| Model | - | CNC VTL 6000 |
| Machine Type | - | Ram Type CNC Vertical Turning Lathe |
| Variants Available | - | VFD Main Motor (2 Axis) / Servo Main Motor (C Axis Ready) |
| Structure | - | Twin Column Vertical Turning Center |
| Application | - | Turning, Facing, Boring, Grooving, Drilling, Ultra Heavy Duty Machining |
| Description | Unit | Value |
|---|---|---|
| Maximum Turning Diameter | mm | 8000 |
| Maximum Working Height | mm | 2000 / 4000 |
| Maximum Job Load | MT | 40 |
| Description | Unit | Value |
|---|---|---|
| Table Diameter | mm | 6000 |
| Chuck Type | - | 4 Jaw Chuck |
| Main Motor | hp | 100 |
| Drive Type | - | VFD with AC Motor |
| Table Speed Range | rpm | 3 – 30 |
| Control Configuration | - | 2 Axis (X + Z) |
| Description | Unit | Value |
|---|---|---|
| Table Diameter | mm | 6000 |
| Chuck Type | - | 4 Jaw Chuck |
| Main Motor | kW | 100 Standard / 110 Optional / 132 Heavy Duty |
| Drive Type | - | Servo Spindle Drive |
| Table Speed Range | rpm | 3 – 50 |
| C Axis | - | Available |
| Control Configuration | - | 2 + 1 Axis (X + Z + C) |
| Description | Unit | Value |
|---|---|---|
| Number of Columns | - | 2 |
| Guide Ways | - | Integral Guide Ways |
| Guide Way Protection | - | Bellow Covers |
| Top Support | - | Heavy Duty Beam Support |
| Description | Unit | Value |
|---|---|---|
| Vertical Travel | mm | 2000 / 4000 |
| Guide Ways | - | Integral / Hardened & Ground Steel Guide Ways |
| Protection | - | Bellow Covers |
| Rail Movement | - | Automatic Lifting & Lowering |
| Description | Unit | Value |
|---|---|---|
| Finish | - | Precision Ground Finish |
| Balancing | - | Hydraulic Counter Balanced |
| Horizontal Travel | mm | 3750 |
| Vertical Ram Travel | mm | 1100 / 2000 |
| Feed Range | m/min | 0.1 – 1 |
| Rapid Traverse | m/min | 2 |
| Ram Cross Section | mm | 250 × 250 |
| Maximum Tool Size | mm | 40 × 40 |
| Description | Unit | Value |
|---|---|---|
| Number of Positions | Nos | 12 |
| Maximum Tool Section | mm | 40 |
| Maximum Tool Length | mm | 300 |
| Maximum Tool Weight | kg | 25 |
| Description | Unit | Value |
|---|---|---|
| Gearbox Make | - | Nord / Bonfiglioli / Reputed Make |
| Gears Material | - | Alloy Steel EN9 / EN353 |
| Description | Unit | Value |
|---|---|---|
| Lubrication Type | - | Centrally Controlled Automatic Lubrication |
| Make | - | Cenlub / Lubrite |
| Description | Unit | Value |
|---|---|---|
| Ram Material | - | EN9 Forged Steel |
| Bearings | - | SKF / KOYO / FAG |
| Description | Unit | Value |
|---|---|---|
| Power Supply | - | 3 Phase, 440V, 50Hz |
| Voltage Fluctuation | - | ±10% |
| Auxiliary Drives | - | AC / Servo Motors |
| Electrical Components | - | Siemens / ABB |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Fanuc 0i TF Plus / Siemens 828D Latest |
| VFD Version | - | 2 Axis CNC |
| Servo Version | - | 2 + 1 Axis with C Axis |
| Optional Functions | - | Live Tooling, Milling, Rigid Tapping, Interpolation |
| Description | Unit | Value |
|---|---|---|
| Feed Motor | Nm | 36 / 36 |
| Lubrication Motor | hp | 0.5 (2 Nos.) |
| Coolant Motor | hp | Optional |
| Description | Unit | Value |
|---|---|---|
| Machine Accuracy | - | As per IS / ISO Standards |
| Description | Unit | Value |
|---|---|---|
| Ram Head | - | Single Ram Head |
| Chuck | - | 6000 mm 4 Jaw Chuck |
| Main Drive | - | VFD Drive |
| Lubrication | - | Centralized System |
| Electrical Panel | - | Interlocked Control Panel |
| CNC Controller | - | Siemens 828D / Fanuc 0i TF |
| Tool Kit | - | Included |
| Description | Unit | Value |
|---|---|---|
| Additional Ram Head | - | Optional |
| Linear Scales | - | Optional |
| Automatic Tool Changer | - | Optional |
| Probing System | - | Optional |
| Machine Guard | - | Optional |
| Chip Conveyor | - | Optional |
| Coolant System & Tank | - | Optional |
| Live Tooling | - | Optional |
| Servo Main Motor with C Axis | - | Optional |
Application Components

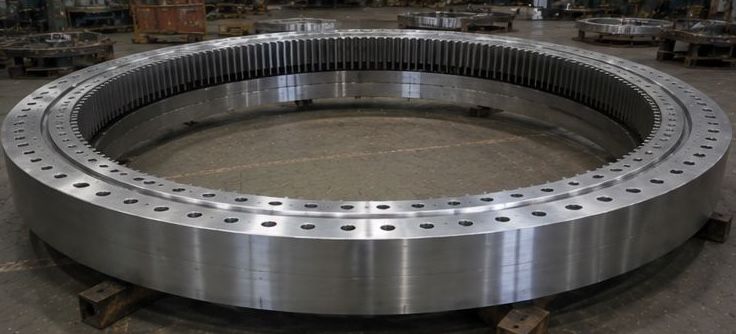

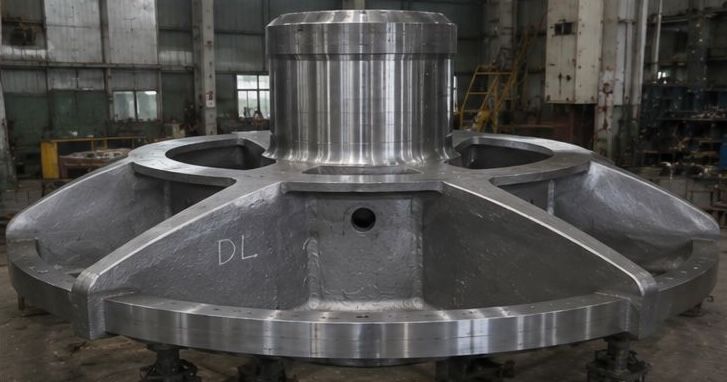

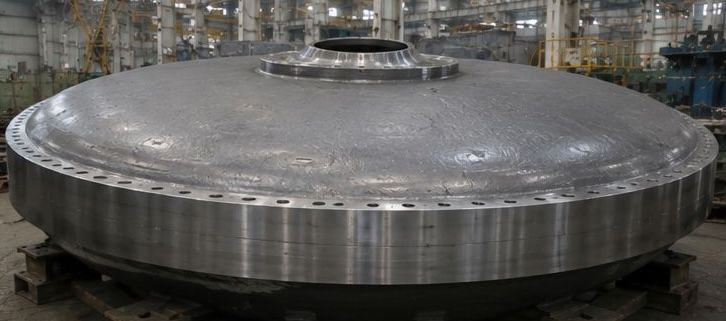

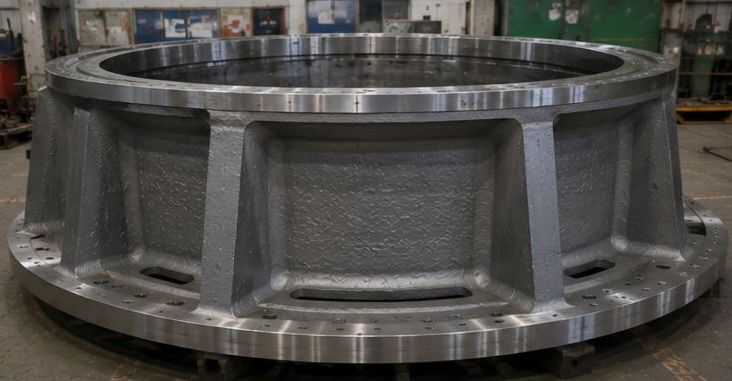

Guide Housing Pressure Vessel Propeller Base Ring Bearing
Machine Highlights
Servo Spindle with C Axis Capability
Optional servo spindle configuration enables interpolation, live tooling, milling, and rigid tapping for multi-process machining.
Massive Twin Column Construction
Heavy duty twin column structure with hardened guideways ensures long-term geometric stability and vibration resistance.
Advanced CNC Integration
Supports Siemens and Fanuc CNC systems with advanced diagnostics, interpolation functions, and optional Industry 4.0 capability.
