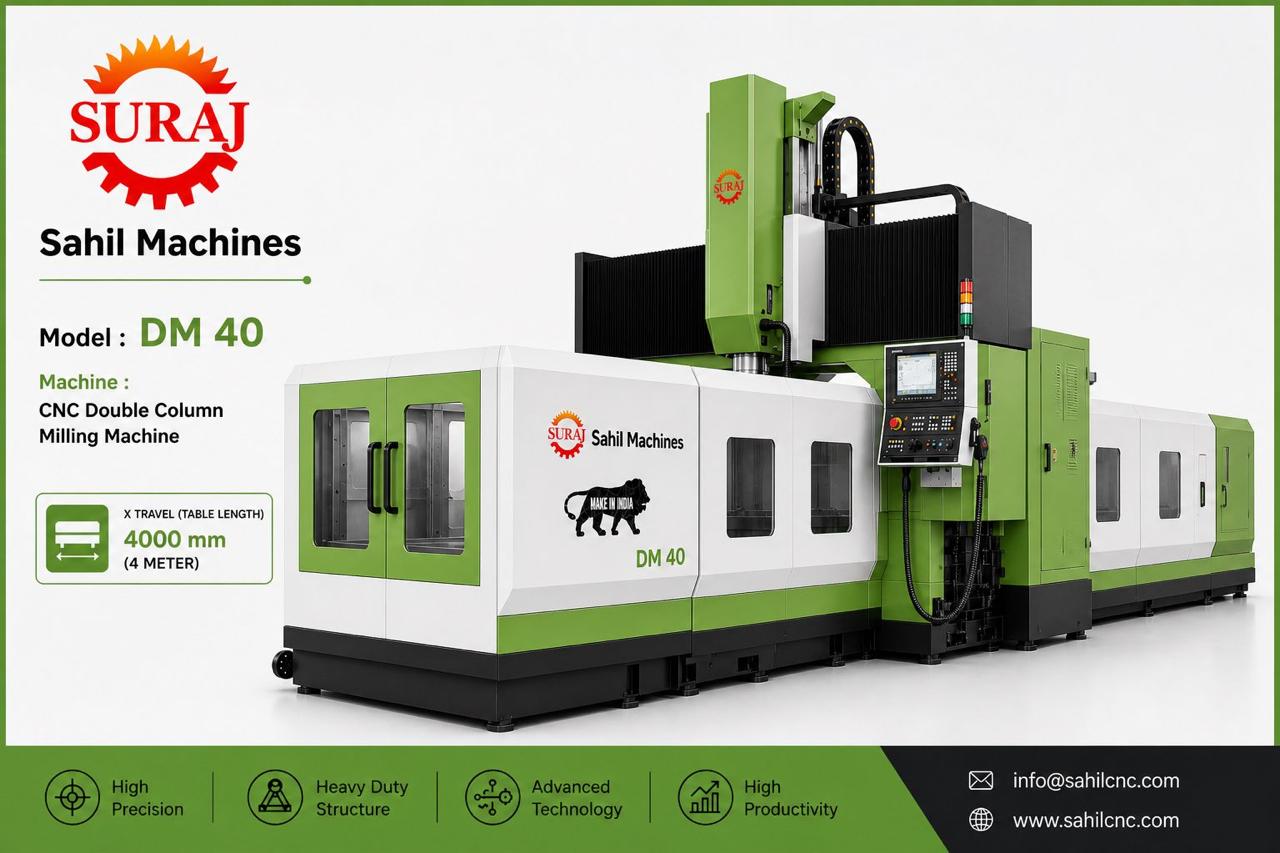

3-Axis Double Column Milling Machines
3-Axis Double Column Milling Machines from Sahil Machines are designed for precision machining of large fabricated structures, heavy castings, and oversized industrial components requiring exceptional rigidity and stable cutting performance.
- Heavy Duty Double Column Structure
- Wide Cross Rail & Box Guideways
- High Torque Milling Spindle
- Large Table Load Capacity
- Fanuc / Siemens CNC Compatible
TECHNICAL DATA
| Product Specs | |||||
|---|---|---|---|---|---|
| Table Size | 4000 × 2000 mm | 6000 × 2500 mm | 8000 × 3000 mm | 10000 × 3500 mm | 15000 × 4000 mm |
| X Axis Travel | 4200 mm | 6200 mm | 8200 mm | 10200 mm | 15200 mm |
| Distance Between Columns | 2500 mm | 3000 mm | 3500 mm | 4000 mm | 4500 mm |
| Table Load Capacity | 10 MT | 18 MT | 25 MT | 35 MT | 50 MT |
| Main Motor Power | 22 kW | 30 kW | 37 kW | 45 kW | 55 kW |
| CNC Controller | Fanuc / Siemens | Fanuc / Siemens | Fanuc / Siemens | Fanuc / Siemens | Fanuc / Siemens |
From Heavy Plate Milling to Large Structure CNC Machining
Modern 3-Axis Double Column Milling Machines combine high structural rigidity with wide machining envelopes to deliver stable cutting performance, high metal removal rates, and precision machining for large industrial components.
