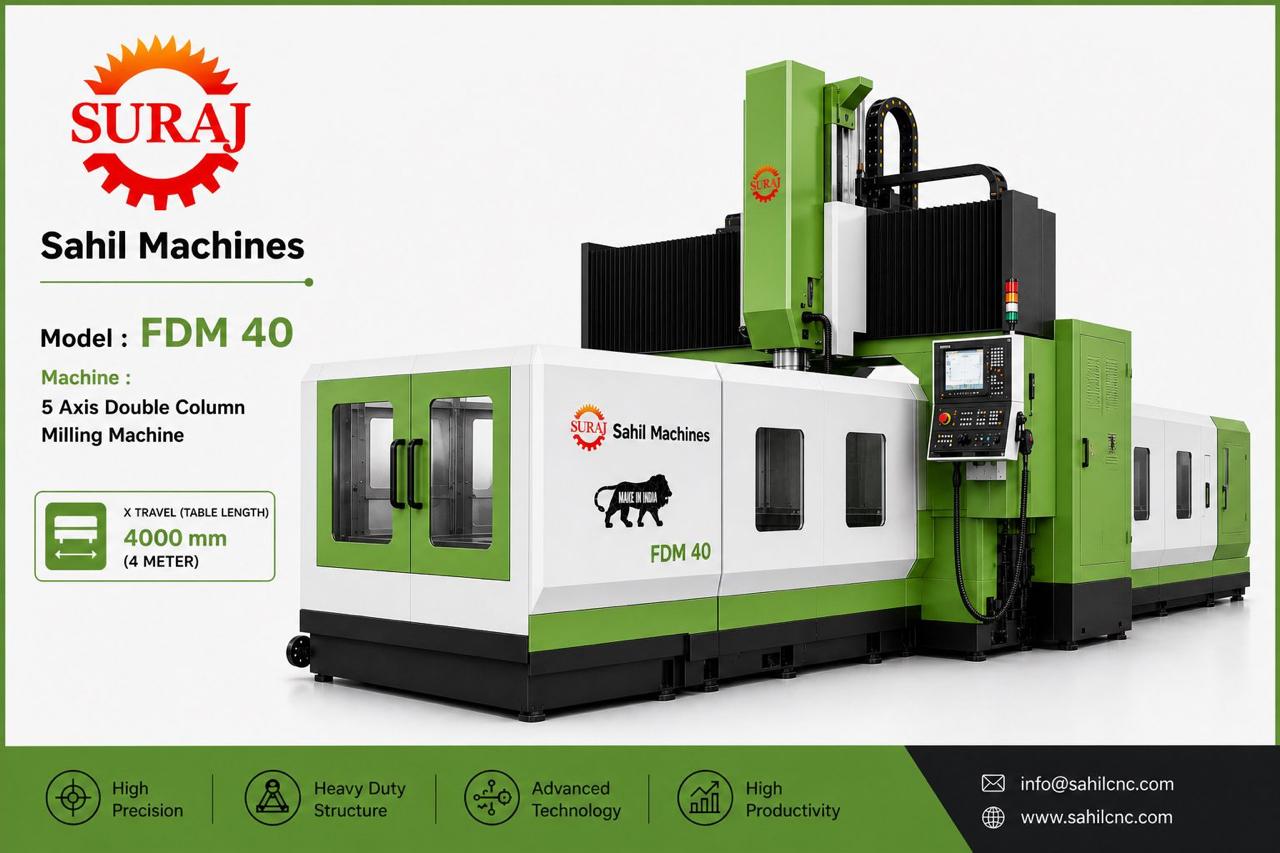

5-Axis Double Column Milling Machines
5-Axis Double Column Milling Machines from Sahil Machines are designed for simultaneous multi-axis machining of large and complex components requiring exceptional precision, reduced setup time, and superior surface finish.
- Simultaneous 5-Axis Machining Capability
- Heavy Duty Double Column Structure
- Universal / Automatic 5-Axis Head
- High Torque BT50 / HSK Spindle System
- Fanuc / Siemens 5-Axis CNC Control
TECHNICAL DATA
| Product Specs | |||||
|---|---|---|---|---|---|
| Table Size | 4000 × 2000 mm | 6000 × 2500 mm | 8000 × 3000 mm | 10000 × 3500 mm | 15000 × 4000 mm |
| X Axis Travel | 4200 mm | 6200 mm | 8200 mm | 10200 mm | 15200 mm |
| Distance Between Columns | 2500 mm | 3000 mm | 3500 mm | 4000 mm | 4500 mm |
| Table Load Capacity | 12 MT | 20 MT | 30 MT | 40 MT | 60 MT |
| Main Motor Power | 30 kW | 37 kW | 45 kW | 55 kW | 75 kW |
| CNC Controller | Fanuc / Siemens 5-Axis | Fanuc / Siemens 5-Axis | Fanuc / Siemens 5-Axis | Fanuc / Siemens 5-Axis | Fanuc / Siemens 5-Axis |
From Multi-Side Machining to Simultaneous 5-Axis Manufacturing
Modern 5-Axis Double Column Milling Machines combine simultaneous multi-axis interpolation with rigid double column construction to deliver exceptional flexibility, accuracy, and productivity for machining complex heavy-duty components.
