Extra Heavy Duty Structure
Rigid box structure design provides excellent vibration damping and superior machining stability during heavy-duty cutting operations.
Precision. Power. Performance.

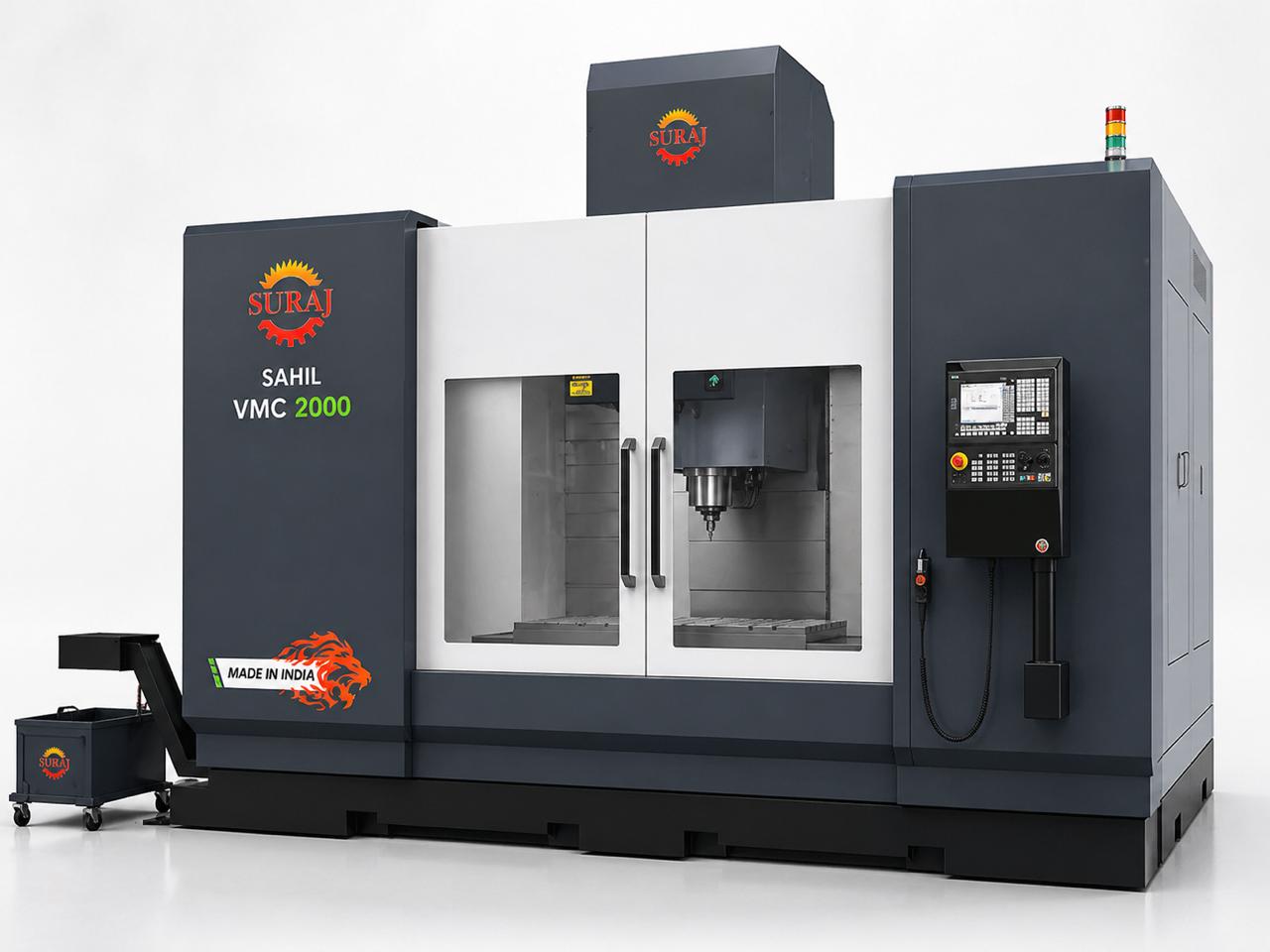

VMC 2000
CNC VERTICAL MACHINING CENTER
The VMC 2000 CNC Vertical Machining Center from Sahil Machines is an extra heavy-duty 3-axis machining solution engineered for high precision milling, drilling, tapping, and boring operations on medium to large industrial components. Built with a rigid box structure, high torque spindle system, precision servo-driven axes, and automatic tool changing capability, the machine delivers outstanding machining stability, high metal removal rates, and reliable production accuracy.
Quick Technical Details
- Table Size2000 × 900 mm
- X Axis Travel1800 mm
- Y Axis Travel900 mm
- Z Axis Travel850 mm
- Spindle Speed8000 RPM
- Spindle Power22 kW
- ATC Capacity24 Tools
Product Documents
Get all the technical details you need.
VMC 2000 - CNC Vertical Machining Center
Full Technical Specifications | Sahil Machines • Machining Center Division
| Description | Unit | Value |
|---|---|---|
| Model | – | VMC 2000 |
| Machine Type | – | CNC Vertical Machining Center |
| Structure | – | Extra Heavy Duty Box Structure |
| Application | – | Heavy Milling, Drilling, Tapping & Large Component Machining |
| Control Axes | – | 3 Axis CNC |
| Description | Unit | Value |
|---|---|---|
| Table Size | mm | 2000 × 900 |
| T Slot Dimension | mm | 5 × 22 × 150 |
| Distance from Floor to Table | mm | 1250 |
| Maximum Load on Table | kg | 2200 |
| Description | Unit | Value |
|---|---|---|
| X Axis Travel | mm | 1800 |
| Y Axis Travel | mm | 900 |
| Z Axis Travel | mm | 850 |
| Distance from Spindle Face to Table | mm | 180 – 1030 |
| Description | Unit | Value |
|---|---|---|
| Rapid Traverse (X / Y / Z) | m/min | 20 |
| Cutting Feed Rate | m/min | 10 |
| Description | Unit | Value |
|---|---|---|
| ATC Type | – | Arm / Disc Type |
| Number of Tools | Nos | 24 |
| Maximum Tool Diameter | mm | 90 / 150 |
| Maximum Tool Weight | kg | 8 |
| Maximum Tool Length | mm | 300 |
| Tool Change Time | sec | 6 |
| Description | Unit | Value |
|---|---|---|
| Spindle Speed Range | rpm | 0 – 8000 |
| Spindle Power | kW | 22 |
| Continuous Power | kW | 18.5 |
| Front Bearing Bore | mm | 70 |
| Spindle Nose | – | BT40 / Optional BT50 |
| Description | Unit | Value |
|---|---|---|
| Positioning Accuracy | mm | ±0.010 |
| Repeat Positioning Accuracy | mm | ±0.005 |
| Accuracy Standard | – | VDI / DGQ 3441 |
| Description | Unit | Value |
|---|---|---|
| Approximate Weight | kg | 13,500 |
| Approximate Size (L × W × H) | mm | 4200 × 3600 × 3600 |
| Description | Unit | Value |
|---|---|---|
| Siemens 828D CNC Controller | – | Included |
| Automatic Tool Changer | – | Included |
| Auto Coolant System | – | Included |
| Automatic Lubrication System | – | Included |
| Work Light | – | Included |
| Machine Manuals | – | Included |
| Description | Unit | Value |
|---|---|---|
| Chip Conveyor | – | Optional |
| 4th Axis Rotary Table | – | Optional |
| 5th Axis Trunnion | – | Optional |
| Through Spindle Coolant | – | Optional |
| Tool Probe | – | Optional |
| Fanuc CNC System | – | Optional |
| Mitsubishi CNC System | – | Optional |
Application Components

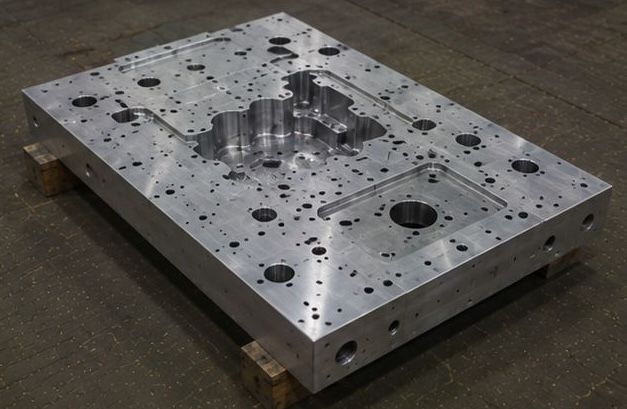

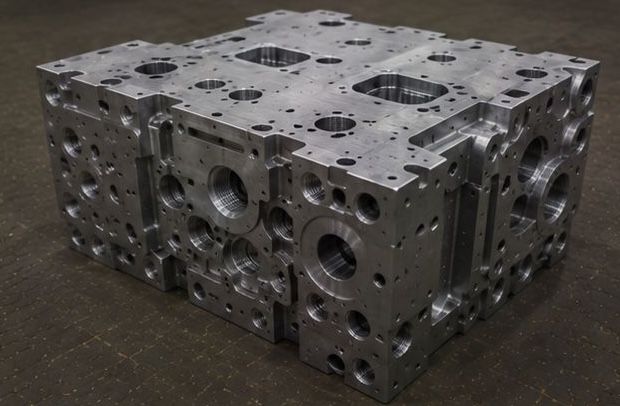

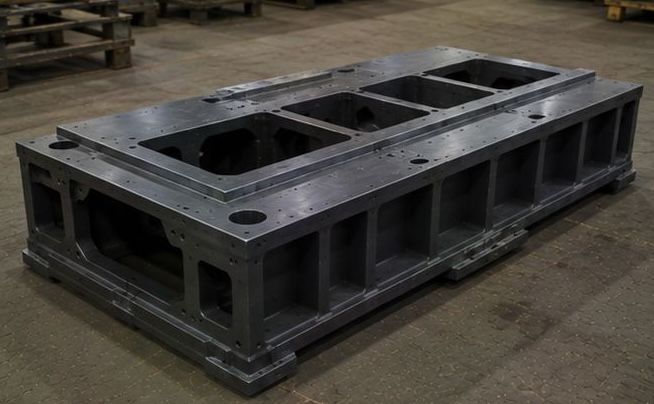

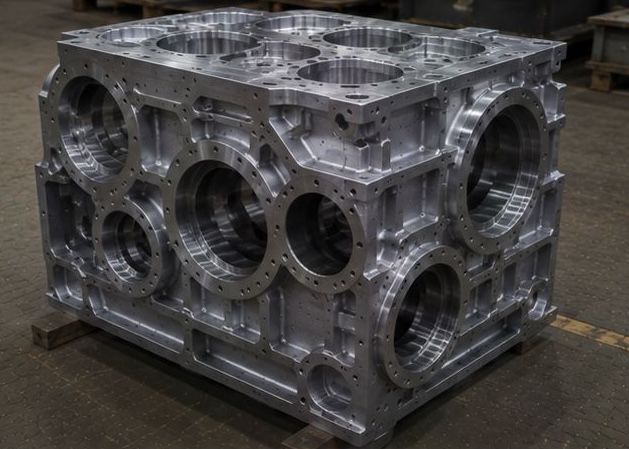

Bed Housing Hydraulic Body Mold Base Plate
Machine Highlights
High Torque Spindle
The 22 kW spindle system enables high metal removal rates while maintaining excellent machining precision and surface finish quality.
Fast Tool Changing
The 24-tool automatic changer minimizes non-cutting time and significantly improves overall production efficiency.
Precision CNC Control
Advanced Siemens CNC technology ensures smooth interpolation, accurate positioning, and dependable production performance.
