Rigid Double Column
The FDM 80 is built with a table moving double column structure that improves rigidity, vibration damping, and machining stability.
Precision. Power. Performance.
FDM 80 5-Axis Double Column Milling Machine
Advanced 5 Axis CNC Double Column Milling Machine engineered for aerospace components, precision molds, structural parts, turbine components, medical tooling, and complex industrial applications. The FDM 80 is built with a rigid table moving double column construction, continuous B + C axis universal milling head, RTCP-enabled CNC platform, high torque spindle system, and precision rotary axes, the machine delivers exceptional contour accuracy, machining stability, and high precision surface finishing for advanced manufacturing industries.
Quick Technical Details
- X Axis Travel8000 mm
- Table Size8000 × 1800 mm
- Distance Between Columns2200 mm
- Spindle Speed6000 RPM
- CNC CapabilitySimultaneous 5 Axis
- Spindle TaperBT50
- Tool Magazine Capacity40 Tools
Product Documents
Get all the technical details you need.
FDM 80 5-Axis Double Column Milling Machine
Full Technical Specifications | Sahil Machines • Advanced Multi Axis Machining Division
| Description | Unit | Value |
|---|---|---|
| Machining Capability | – | Simultaneous 5 Axis + 3+2 |
| Distance Between Columns | mm | 2200 |
| Table Load Capacity | Ton/m | 3 |
| Application | – | Aerospace, Mold & Die, Precision & Structural Machining |
| Description | Unit | Value |
|---|---|---|
| Table Size | mm | 8000 × 1800 |
| T Slot Dimensions | mm | 12 × 22 × 160 |
| Distance from Floor to Table | mm | 750 |
| Table Construction | – | Heavy Ribbed Cast Iron / Fabricated Base |
| Description | Unit | Value |
|---|---|---|
| X Axis Travel | mm | 8000 |
| Y Axis Travel | mm | 2200 |
| Z Axis Travel | mm | 1200 |
| Spindle Nose to Table | mm | 200 – 1400 |
| Description | Unit | Value |
|---|---|---|
| Head Type | – | Universal Continuous 2 Axis Head |
| B Axis Travel | Deg | ±100° |
| C Axis Travel | Deg | ±180° |
| B Axis Rotation Speed | rpm | 50 |
| C Axis Rotation Speed | rpm | 70 |
| Description | Unit | Value |
|---|---|---|
| Spindle Speed Range | rpm | 0 – 6000 |
| Spindle Motor Power | kW | 30 |
| Continuous Power | kW | 25 |
| Spindle Nose | – | BT50 |
| Cooling System | – | Oil / Air Cooling |
| Rigid Tapping | – | Included |
| Description | Unit | Value |
|---|---|---|
| Number of Tools | Nos | 40 |
| Tool Change Type | – | Automatic Arm Type |
| Tool Length | mm | 350 |
| Tool Diameter | mm | 100 |
| Tool Weight | kg | 10 |
| Tool Change Time | sec | 6 – 8 |
| Description | Unit | Value |
|---|---|---|
| Rapid Traverse X | m/min | 6 |
| Rapid Traverse Y | m/min | 6 |
| Rapid Traverse Z | m/min | 6 |
| Cutting Feed | m/min | 3 |
| Rotary Interpolation | – | Supported |
| Description | Unit | Value |
|---|---|---|
| X Axis Motor | Nm | 60 |
| Y Axis Motor | Nm | 30 |
| Z Axis Motor | Nm | 30 |
| B Axis Motor | – | Precision Servo |
| C Axis Motor | – | Precision Servo |
| Description | Unit | Value |
|---|---|---|
| Lubrication Type | – | Automatic Centralized |
| Lubrication Motor | HP | 1 |
| Coolant Type | – | Flood Coolant |
| Coolant Motor | HP | 3 |
| Chip Conveyor | – | Included |
| Description | Unit | Value |
|---|---|---|
| Controller Options | – | Siemens / Fanuc / Heidenhain |
| Programming | – | Simultaneous 5 Axis RTCP Ready |
| Data Transfer | – | Ethernet / USB |
| Look Ahead Function | – | Included |
| Description | Unit | Value |
|---|---|---|
| Linear Positioning Accuracy | mm | ±0.020 |
| Linear Repeatability | mm | ±0.010 |
| Rotary Axis Accuracy | sec | ±8 |
| Rotary Repeatability | sec | ±4 |
| Standard | – | ISO / VDI Tested |
| Description | Unit | Value |
|---|---|---|
| Length | mm | 17500 |
| Width | mm | 4300 |
| Height | mm | 4200 |
| Approximate Weight | kg | 42000 |
| Standard Accessories | Workpiece Clamping System | Tool Holders |
| Coolant System | Lubrication System | Chip Conveyor |
| Machine Enclosure | Automatic Tool Changer | Technical Manuals |
| Optional Accessories | Renishaw Probe System | Through Spindle Coolant |
| High Speed 10000 RPM Spindle | Tool Presetter | Mist Collector |
Application Components

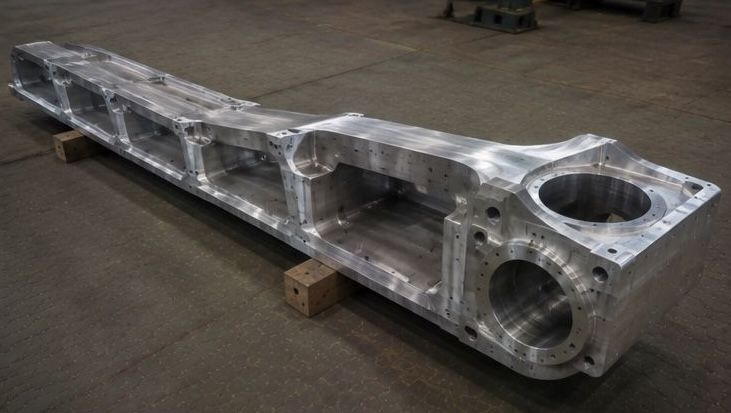

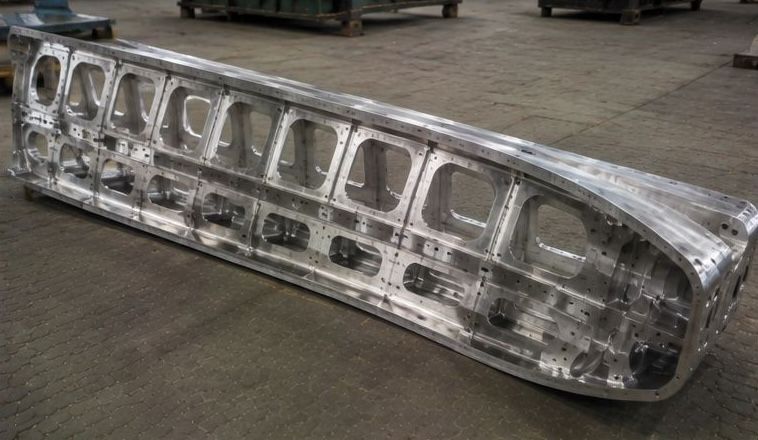

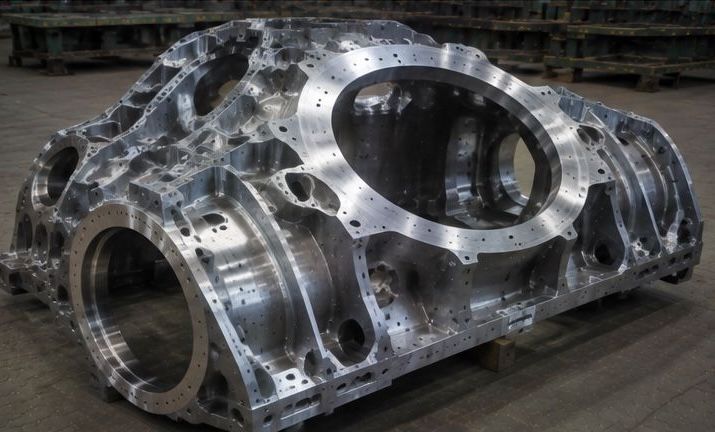

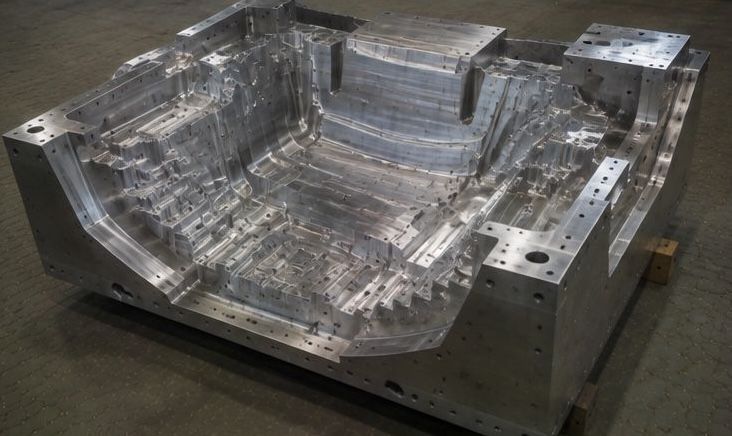

Casing Mold & Die Cavity Rib Spar
Machine Highlights
Precision 5 Axis
The universal continuous 2-axis milling head supports B and C axis machining for complex contours, angular surfaces, and multi-face operations.
Flexible CNC Control
The machine can be configured with Siemens, Fanuc, or Heidenhain CNC systems.
Productive Machining
With BT50 spindle power, automatic tool changer, rapid traverse movements, coolant system, and chip conveyor, the FDM 80 reduces setup time and improves production flow.
