Slant Bed Rigidity
Heavy duty FG260 graded cast iron slant bed construction ensures superior vibration damping and machining stability.
Precision. Power. Performance.

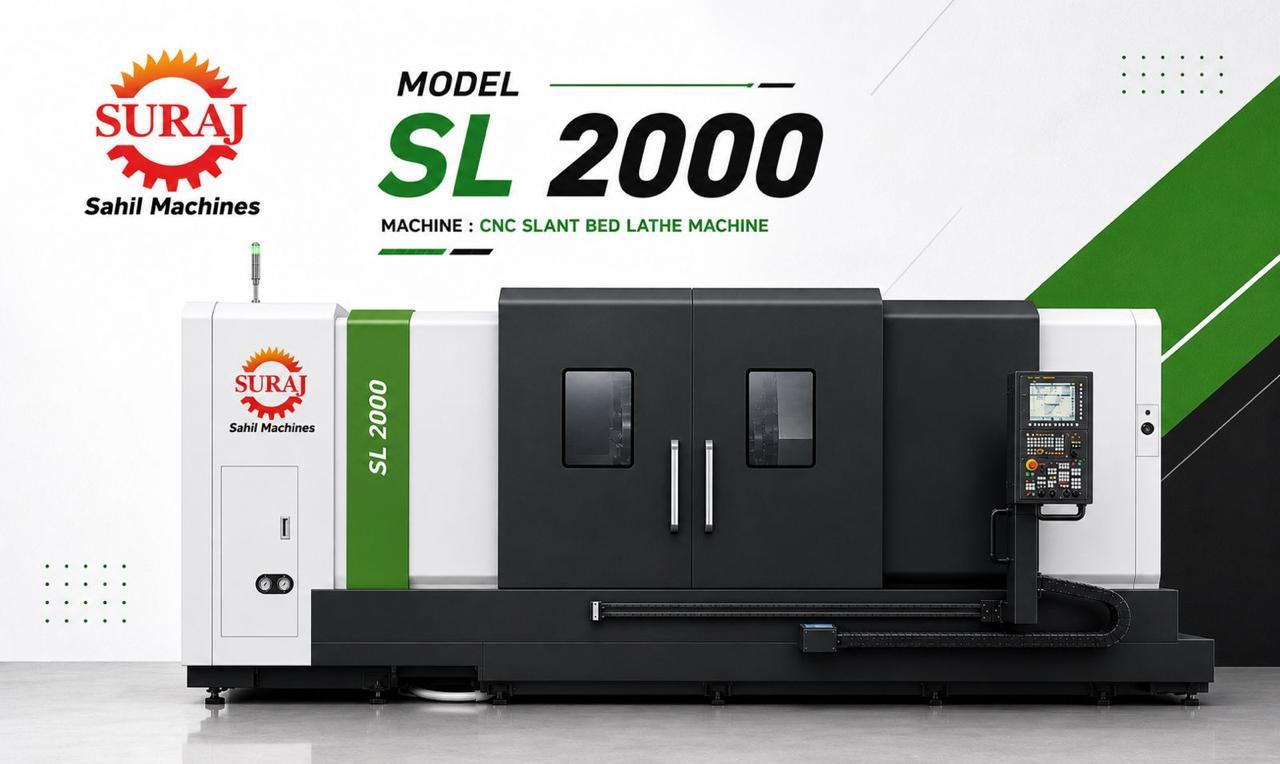

SL 2000 CNC Slant Bed Lathe
The SL 2000 CNC Slant Bed Lathe Machine is a heavy duty CNC turning solution designed for precision machining of shafts, flanges, hydraulic components, pipes, and large cylindrical industrial parts. Built with FG260 graded cast iron construction, rigid slant bed design, hardened guideways, and advanced CNC systems, the machine delivers stable cutting performance, excellent chip evacuation, and high machining accuracy during continuous heavy duty operations.
Quick Technical Details
- Swing Over Bed2000 mm
- Swing Over Cross Slide1450 mm
- Distance Between Centers2000 – 14000 mm
- Main Spindle Power50 kW
- Spindle Speed Range5 – 400 RPM
- CNC CapabilityOptional C Axis + Milling Attachment
- Accuracy StandardAs per IS Standards
Product Documents
Get all the technical details you need.
SL 2000 CNC Slant Bed Lathe Machine
Full Technical Specifications | Sahil Machines • Turning Division
| Description | Unit | Value |
|---|---|---|
| Model | - | SL 2000 |
| Machine Type | - | CNC Slant Bed Lathe Machine |
| Structure | - | Heavy Duty FG260 Graded Cast Iron Construction |
| Bed Type | - | Slant Bed |
| Bed Angle | Degree | 30° / 45° |
| Application | - | Precision Turning, Shaft Machining, Pipe Machining, General Engineering |
| Description | Unit | Value |
|---|---|---|
| Swing Over Bed | mm | 2000 |
| Swing Over Cross Slide | mm | 1450 |
| Center Height | mm | 1000 |
| Distance Between Centers | mm | 2000 – 14000 |
| Description | Unit | Value |
|---|---|---|
| Spindle Nose | - | A2-15 |
| Spindle Speed Range | rpm | 5 – 400 |
| Spindle Bore | mm | 210 |
| Main Spindle Motor | kW | 50 |
| Drive Type | - | AC Spindle Drive |
| Cutting Capacity | - | Heavy Duty |
| Description | Unit | Value |
|---|---|---|
| Number of Tools | Nos | 8 / 12 |
| Tool Size | mm | 32 × 32 |
| Turret Type | - | Hydraulic / Servo Indexing |
| Description | Unit | Value |
|---|---|---|
| X Axis Travel | mm | 1010 |
| Z Axis Travel | mm | 2000 – 14000 |
| X Axis Rapid Traverse | m/min | 6 |
| Z Axis Rapid Traverse | m/min | 6 |
| X Axis Servo Motor | Nm | 36 |
| Z Axis Servo Motor | Nm | 50 |
| Description | Unit | Value |
|---|---|---|
| Quill Diameter | mm | 200 |
| Quill Travel | mm | 200 |
| Tailstock Center | - | MT7 |
| Description | Unit | Value |
|---|---|---|
| Coolant Pump Motor | hp | 1 |
| Hydraulic Pump Motor | hp | 1 |
| Lubrication Pump Motor | hp | 0.5 |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Siemens 828D / Fanuc 0i TF Latest |
| Optional Features | - | C Axis, Milling Attachment, Tool Presetter, Tool Probe, Touch Probe |
| Description | Unit | Value |
|---|---|---|
| Manual Chuck 4 Jaw | - | Included |
| Auto Coolant System | - | Included |
| Hydraulic System | - | Included |
| Lubrication System | - | Included |
| Box Way on Cross Slide | - | Included |
| Work Light | - | Included |
| Tri Colour Light | - | Included |
| Tool Box with Tools | - | Included |
| Description | Unit | Value |
|---|---|---|
| Splash Guard | - | Optional |
| Chip Conveyor | - | Optional |
| Spindle Oil Chiller | - | Optional |
| Hydraulic / Manual Chuck 3 Jaw | - | Optional |
| Face Plate | - | Optional |
| C Axis | - | Optional |
| Steady Rest / Follow Rest | - | Optional |
| Heavy Duty Milling Attachment | - | Optional |
| Grinding Head on Cross Slide | - | Optional |
| Voltage Stabilizer | - | Optional |
| Isolation Transformer | - | Optional |
| CE Mark | - | Optional |
Application Components

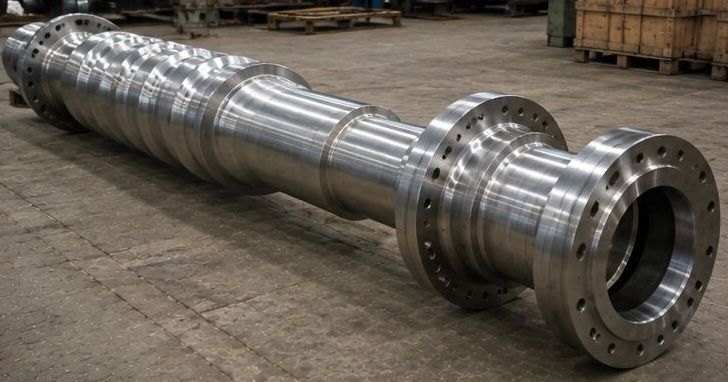

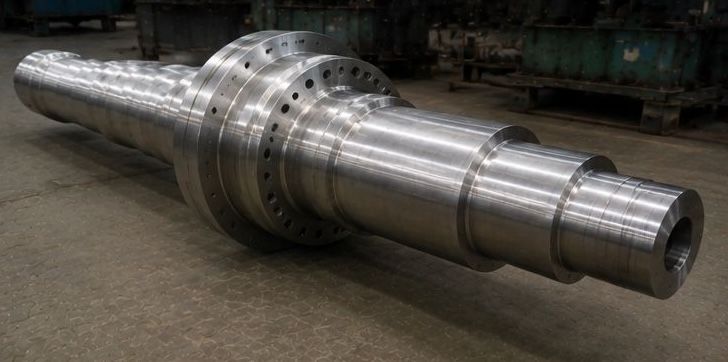

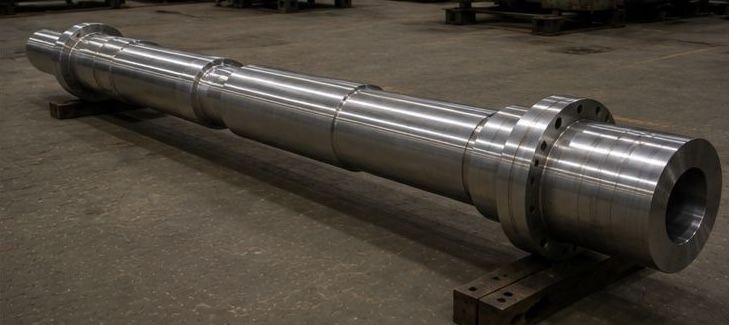

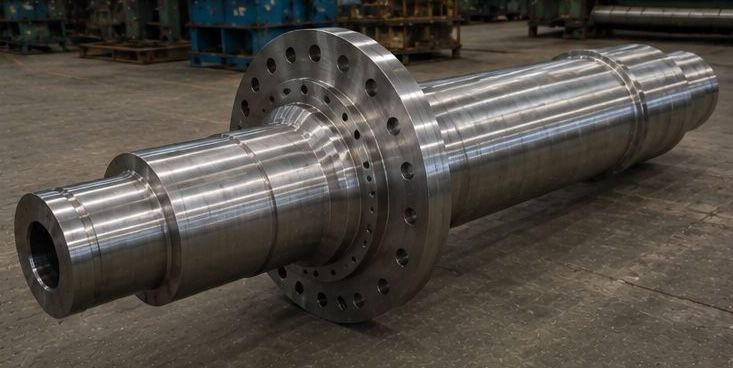

Rotor Shaft Screw Barrel Spindle Shafts Transmission Shaft
Machine Highlights
Heavy Duty Turning Performance
50 kW spindle drive delivers reliable machining capability for heavy cylindrical components and long shaft applications.
Advanced CNC Integration
Supports Siemens 828D and Fanuc 0i TF CNC systems with optional C Axis and milling attachment capability.
Flexible Machining Platform
Supports optional steady rests, grinding heads, probes, milling attachments, and automation systems.
