Heavy Duty Fixed Bed Construction
Rigid fixed bed structure with moving column design ensures excellent machining stability and vibration resistance during heavy cutting operations.
Precision. Power. Performance.

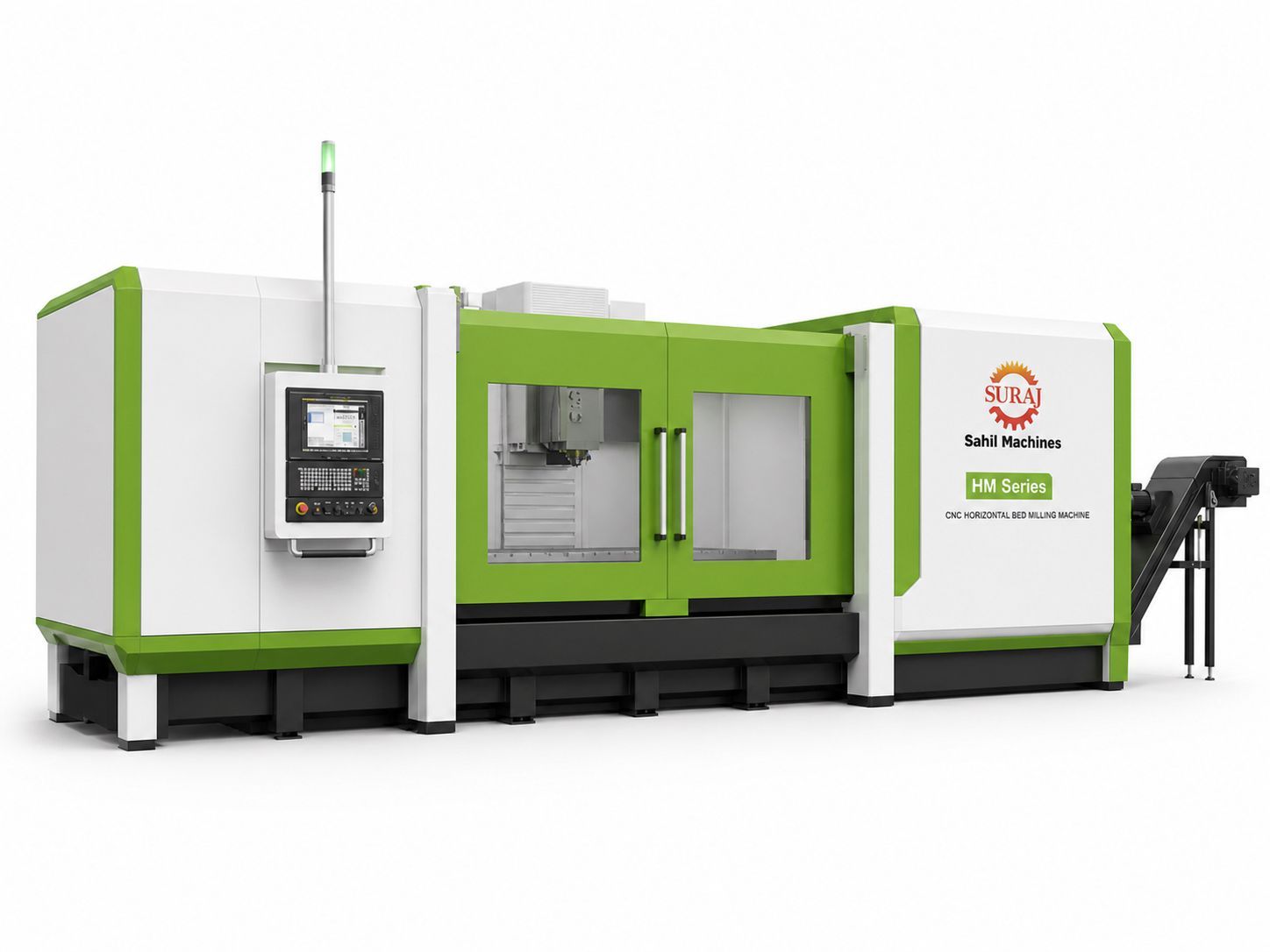

HM SERIES
CNC HORIZONTAL BED MILLING MACHINES
The HM Series CNC Horizontal Bed Milling Machines are fixed bed type heavy duty machining systems designed for precision milling, boring, drilling, and heavy component machining applications. Built with moving column construction, high torque spindle systems, rigid box structures, and precision CNC controls, the HM Series delivers excellent machining stability and high metal removal capability for large fabricated structures and precision heavy engineering components.
Quick Technical Details
- Spindle Diameter Range110 mm – 180 mm
- Maximum X Axis TravelUp to 10000 mm
- Maximum Table LoadUp to 25 Ton
- CNC Capability3 Axis / 4 Axis Ready
- Spindle Speed RangeUp to 3500 RPM
- Main Motor PowerUp to 45 kW
- Accuracy StandardPositioning Accuracy up to ±0.015 mm
Product Documents
Get all the technical details you need.
HM Series CNC Horizontal Bed Milling Machines
Full Technical Specifications | Sahil Machines • Milling Division
| Description | Unit | HM 40 | HM 60 | HM 80 | HM 100 |
|---|---|---|---|---|---|
| Machine Type | - | CNC Horizontal Bed Milling Machine | CNC Horizontal Bed Milling Machine | CNC Horizontal Bed Milling Machine | CNC Horizontal Bed Milling Machine |
| Construction Type | - | Fixed Bed Type | Fixed Bed Type | Fixed Bed Type | Fixed Bed Type |
| Column Movement | - | Moving Column | Moving Column | Moving Column | Moving Column |
| Table Movement | - | Longitudinal Assist / Fixed Bed Support | Longitudinal Assist / Fixed Bed Support | Longitudinal Assist / Fixed Bed Support | Longitudinal Assist / Fixed Bed Support |
| Application | - | Heavy Milling / Boring | Heavy Milling / Boring | Precision Heavy Machining | Large Component Machining |
| CNC Capability | - | 3 Axis / 4 Axis Ready | 3 Axis / 4 Axis Ready | 3 Axis / 4 Axis Ready | 3 Axis / 4 Axis Ready |
| Description | Unit | HM 40 | HM 60 | HM 80 | HM 100 |
|---|---|---|---|---|---|
| X Axis Travel | mm | 4000 | 6000 | 8000 | 10000 |
| Y Axis Travel | mm | 1500 | 1800 | 2200 | 2500 |
| Z Axis Travel | mm | 1500 | 1800 | 2200 | 2500 |
| W Axis Quill Travel | mm | 500 | 600 | 700 | 800 |
| Bed Table Size | mm | 4500 × 1200 | 6500 × 1400 | 8500 × 1600 | 10500 × 1800 |
| Maximum Table Load | Ton | 8 | 12 | 18 | 25 |
| Description | Unit | HM 40 | HM 60 | HM 80 | HM 100 |
|---|---|---|---|---|---|
| Spindle Taper | - | ISO 50 | ISO 50 | ISO 50 | ISO 50 |
| Spindle Speed Range | rpm | 20 – 3500 | 20 – 3000 | 20 – 2500 | 20 – 2200 |
| Main Motor Power | kW | 22 | 30 | 37 | 45 |
| Spindle Torque | Nm | 900 | 1200 | 1600 | 2200 |
| Spindle Diameter | mm | 110 | 130 | 160 | 180 |
| Description | Unit | HM 40 | HM 60 | HM 80 | HM 100 |
|---|---|---|---|---|---|
| Rapid Traverse X / Y / Z | m/min | 12 | 12 | 10 | 8 |
| Cutting Feed | mm/min | 1 – 8000 | 1 – 8000 | 1 – 6000 | 1 – 5000 |
| Description | Unit | HM 40 | HM 60 | HM 80 | HM 100 |
|---|---|---|---|---|---|
| Standard Head | - | Horizontal Milling Head | Horizontal Milling Head | Horizontal Milling Head | Horizontal Milling Head |
| Automatic Universal Head | - | Optional | Optional | Optional | Optional |
| Right Angle Head | - | Optional | Optional | Optional | Optional |
| Facing Head | - | Optional | Optional | Optional | Optional |
| Description | Unit | HM 40 | HM 60 | HM 80 | HM 100 |
|---|---|---|---|---|---|
| Positioning Accuracy | mm | ±0.015 | ±0.020 | ±0.020 | ±0.025 |
| Repeatability | mm | ±0.010 | ±0.012 | ±0.015 | ±0.015 |
| Description | Unit | HM 40 | HM 60 | HM 80 | HM 100 |
|---|---|---|---|---|---|
| Controller | - | Siemens / Fanuc / Heidenhain | Siemens / Fanuc / Heidenhain | Siemens / Fanuc / Heidenhain | Siemens / Fanuc / Heidenhain |
Application Components

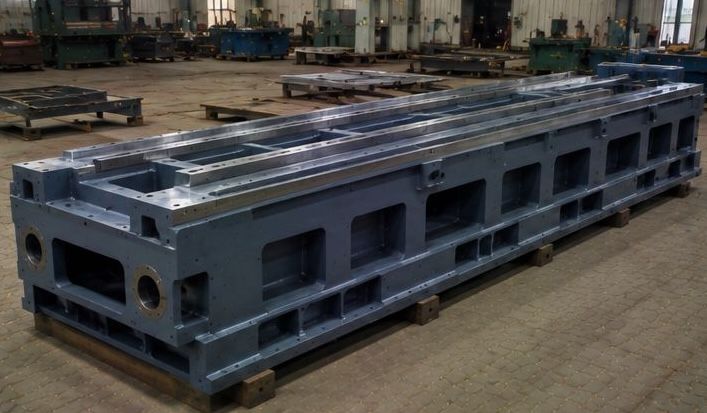

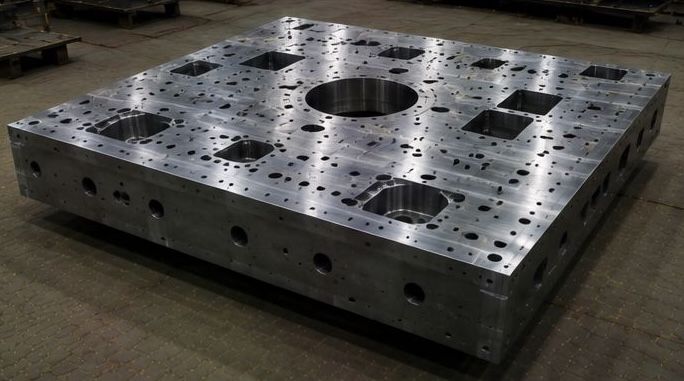

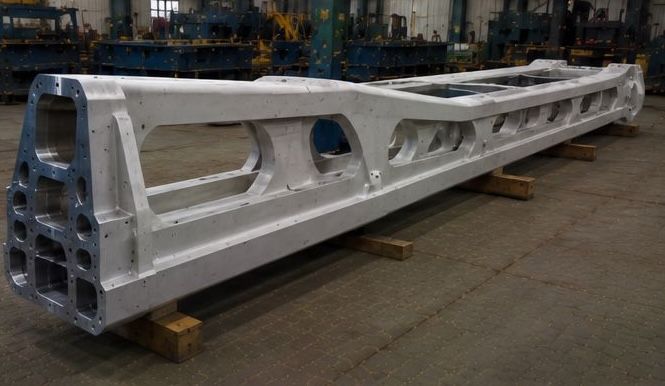

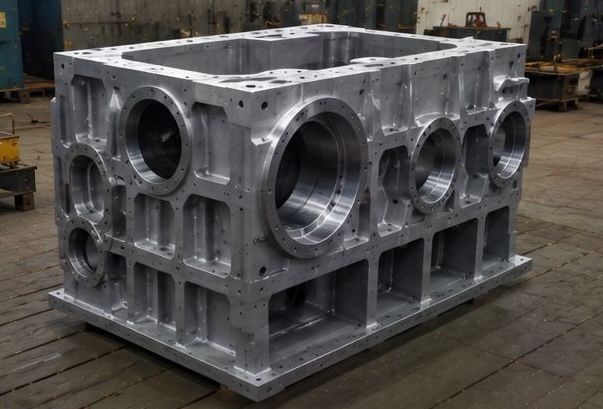

Bed Housing Mold Base Plate Structural Beam
Machine Highlights
High Torque Spindle Technology
Large spindle diameters with powerful high torque motors enable aggressive milling and boring applications.
Large Component Machining Capability
Designed for long bed heavy components including fabricated structures, machine beds, and wind energy parts.
Flexible Head Configurations
Optional universal heads, right angle heads, and facing heads available for multi surface machining flexibility.
