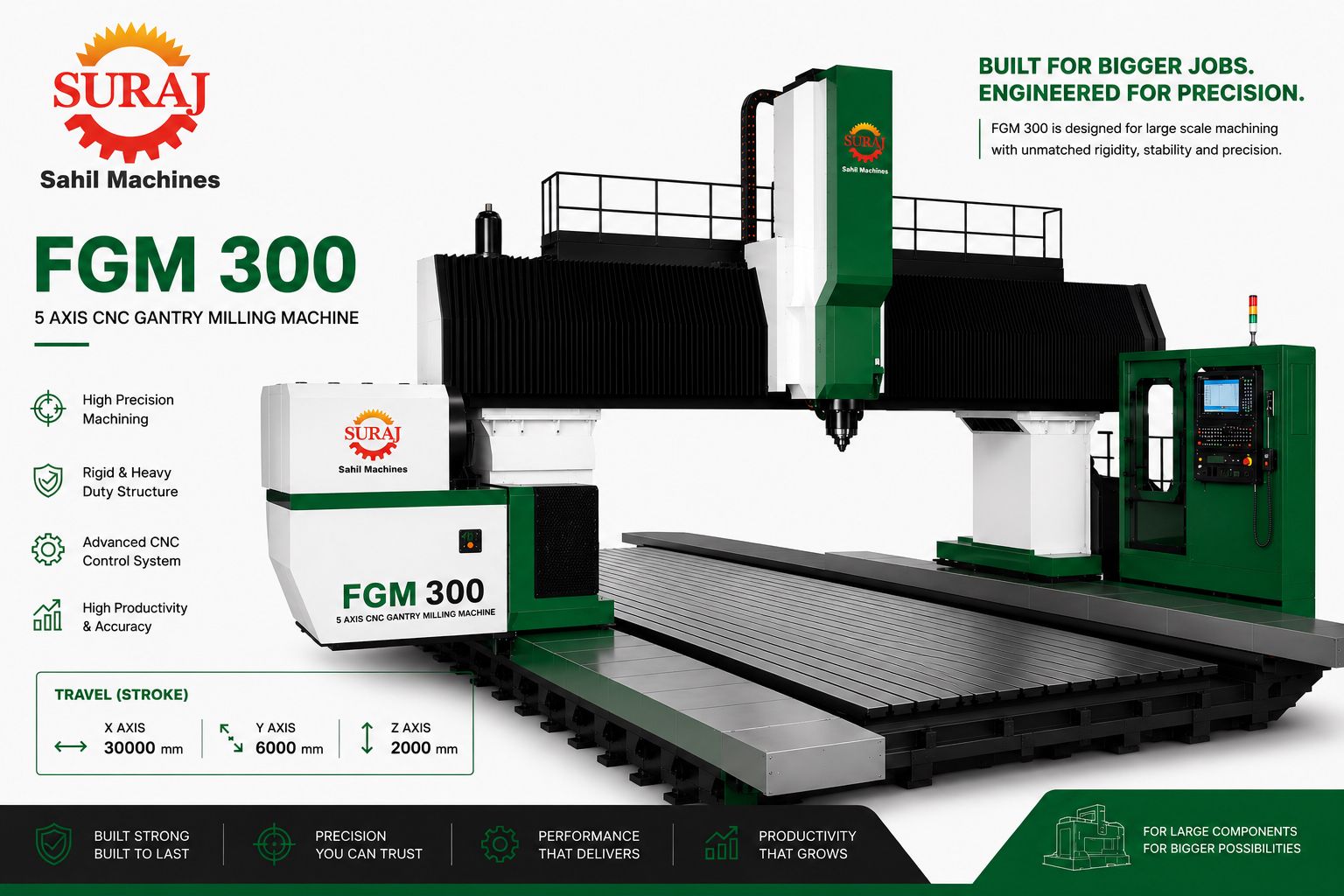

FGM 300 5-Axis Gantry Milling Machine
Ultra Heavy Duty Simultaneous 5 Axis Gantry Machining Solution for Aerospace, Shipbuilding, Defense & Mega Structural Components. The FGM 300 is an ultra heavy duty 5 Axis CNC Gantry Milling Machine engineered for machining mega fabricated structures, aerospace assemblies, turbine structures, bogie frames, shipbuilding panels, large mold plates, and precision mega engineering components.
Quick Technical Details
- X Axis Travel30000 mm
- Table Size30000 × 6000 mm
- Table Load Capacity300 MT
- Spindle Speed8000 RPM
- CNC CapabilitySimultaneous 5 Axis
- Rotary HeadContinuous B + C Axis
- Spindle TypeUltra Heavy Duty Geared Milling Spindle
Product Documents
Get all the technical details you need.
FGM 300 5-Axis Gantry Milling Machine
Full Technical Specifications | Sahil Machines • Advanced Multi Axis Machining Division
| Description | Unit | Value |
|---|---|---|
| X Axis Travel | mm | 30000 |
| Y Axis Travel | mm | 8000 |
| Z Axis Travel | mm | 1500 |
| B Axis Travel | Deg | ±110° |
| C Axis Travel | Deg | ±360° Continuous |
| Total Job Height | mm | 1500 |
| Distance Between Columns | mm | 8000 |
| Description | Unit | Value |
|---|---|---|
| Table Size | mm | 30000 × 6000 |
| Table Type | - | Fixed Floor Table / Modular CI Table |
| Load Carrying Capacity | MT | 300 |
| T Slot Size | mm | 36 |
| T Slot Pitch | mm | 300 |
| Table Material | - | FG260 Grade CI Casting |
| Table Construction | - | Multi-Piece Heavy Duty Modular Floor Table |
| Spindle Type | - | Continuous Universal Head / Ultra Heavy Duty Geared Milling Spindle |
| Maximum Spindle Speed | rpm | 8000 |
| Spindle Motor | kW | 45 / 55 |
| Gearbox | - | 2 Speed Gearbox |
| Spindle Taper | - | BT50 |
| Spindle Cooling | - | Spindle Cooler Included |
| Rigid Tapping | - | Included |
| Description | Unit | Value |
|---|---|---|
| Head Type | - | Automatic Continuous Universal Milling Head |
| B Axis Resolution | Deg | 0.001° |
| C Axis Resolution | Deg | 0.001° |
| Rotary Positioning Accuracy | Arc Sec | ±10 |
| Rotary Repeatability | Arc Sec | ±5 |
| Description | Unit | Value |
|---|---|---|
| X Axis Motors | Nm | 4 × 60 Nm with Gearboxes |
| X Axis Drive Layout | - | Quad Servo Synchronized Gantry Drive |
| Y Axis Motor | Nm | 75 with Gearbox |
| Z Axis Motor | Nm | 75 with Gearbox |
| B Axis Motor | Nm | Direct Drive / Servo |
| C Axis Motor | Nm | Direct Drive / Servo |
| Gantry Synchronization | - | CNC Electronic Master-Slave Control |
| Description | Unit | Value |
|---|---|---|
| X Axis Rapid | mm/min | 3500 |
| Y Axis Rapid | mm/min | 2500 |
| Z Axis Rapid | mm/min | 2500 |
| Cutting Feed Rate | mm/min | 5 – 3500 |
| Description | Unit | Value |
|---|---|---|
| Machine Structure | - | Fixed Table / Moving Gantry Type |
| X Axis Guideways | - | Heavy Roller Type, 2 + 2 Guideways |
| Y Axis Guideways | - | Heavy Roller Type Guideways |
| Z Axis Guideways | - | Heavy Roller Type Guideways |
| X Axis Drive | - | Rack & Pinion |
| Y Axis Drive | - | Rack & Pinion / Heavy Ballscrew |
| Z Axis Drive | - | Precision Ballscrew |
| Bearings | - | SKF / RHP / FAG |
| Linear Guideways | - | Hiwin / THK / PMI Precision Grade |
| Description | Unit | Value |
|---|---|---|
| Ram Type | - | Ultra Heavy Box Type |
| Ram Section | mm | 400 × 400 |
| Ram Construction | - | Stress Relieved Ribbed Structure |
| Ram Movement | - | Servo Controlled Vertical Axis |
| Ram Balancing | - | Hydraulic Counter Balance |
| Description | Unit | Value |
|---|---|---|
| CNC Controller | - | Siemens 840D / Heidenhain TNC7 / Fanuc |
| 5 Axis Functions | - | RTCP / TCPM / Kinematic Compensation |
| Communication | - | Ethernet / USB / RS232 |
| Description | Unit | Value |
|---|---|---|
| Electrical Panel Items | - | Siemens / ABB / Fanuc |
| Drag Chain | - | Kabel Schlepp |
| Power Requirement | kVA | Approx. 340 |
| Description | Unit | Value |
|---|---|---|
| Accuracy Standard | - | As per IS Standards |
| Description | Unit | Value |
|---|---|---|
| Simultaneous 5 Axis Machining | - | Included |
| Universal Head | - | Included |
| BT50 Spindle | - | Included |
| Centralized Lubrication | - | Included |
| Coolant System | - | Included |
| Hydraulic Counter Balance | - | Included |
| Telescopic Covers | - | Included |
| Machine Lamp / Tower Lamp | - | Included |
| Operator Monitor | - | Included |
| Manuals | - | Included |
| Description | Unit | Value |
|---|---|---|
| Automatic Tool Changer | - | 60 / 120 / 200 Tools |
| Angular Head BT50 / ISO50 | - | Optional |
| Linear Glass Scale | - | Optional |
| Probing System | - | Optional |
| Full Splash Guard | - | Optional |
| Scraper Conveyor | - | Optional |
| Voltage Stabilizer | - | Optional |
| Spindle Mounted Probe | - | Optional |
| Auto Workpiece Measurement | - | Optional |
| Tool Probe | - | Optional |
| Workpiece Probe | - | Optional |
| Z Axis Extension | mm | Up to 2000 |
| W Axis Movable Cross Rail | mm | 2000 / 2500 / 3000 / 4000 |
Application Components

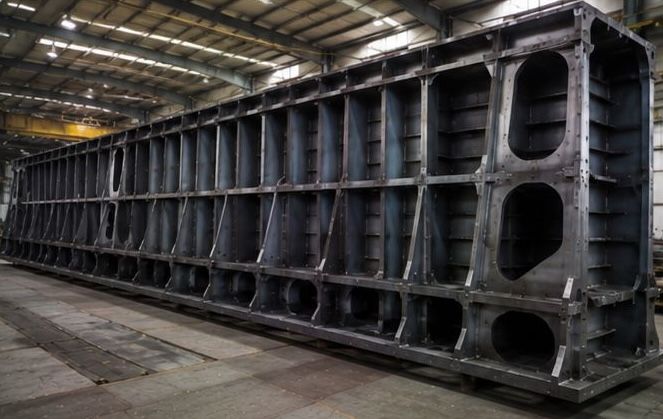

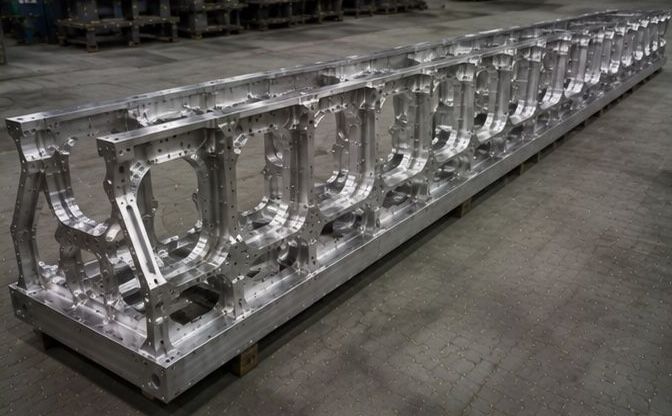

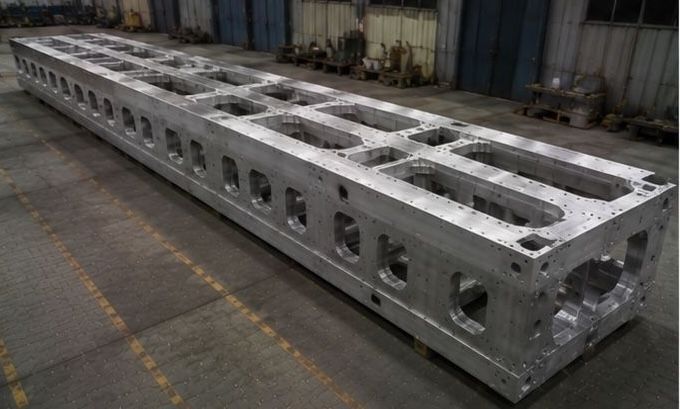

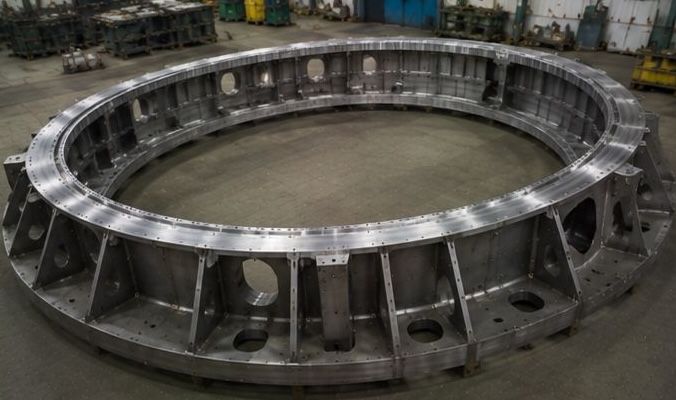

Base Frame Hull Block Section Spar Structure Wind Turbine Ring
