FGM 80 5-Axis Gantry Milling Machine

High Rigidity Simultaneous 5 Axis Gantry Machining Solution for Aerospace, Defense & Heavy Structural Applications. The FGM 80 is a high-performance 5 Axis CNC Gantry Milling Machine engineered for simultaneous contour machining of aerospace structures, turbine bases, bogie frames, mold bases, and large fabricated engineering components. Its moving gantry architecture provides exceptional rigidity and stability for heavy-duty cutting applications.

Quick Technical Details

  • X Axis Travel8000 mm
  • Table Size8000 × 3500 mm
  • Table Load Capacity45 MT
  • Spindle Speed12000 RPM
  • CNC CapabilitySimultaneous 5 Axis
  • Rotary HeadContinuous B + C Axis
  • Spindle TaperBT50
Product video playlistSahil Machines YT Channel

Product Documents

Get all the technical details you need.

FGM 80 5-Axis Gantry Milling Machine

Full Technical Specifications | Sahil Machines • Advanced Multi Axis Machining Division

Make in India
DescriptionUnitValue
X Axis Travelmm8000
Y Axis Travelmm4500
Z Axis Travelmm1500
B Axis TravelDeg±110°
C Axis TravelDeg±360° Continuous
Total Job Heightmm1500
Distance Between Columnsmm4500
DescriptionUnitValue
Table Sizemm8000 × 3500
Table Type-Fixed Floor Table
Load CapacityMT45
T Slot Sizemm26
T Slot Pitchmm250
Table Material-FG260 Grade CI Casting
DescriptionUnitValue
Spindle Type-BT50 Electro Spindle
Maximum Speedrpm12000
Spindle MotorkW30 / 37
Spindle Taper-BT50
Cooling-Oil / Air
Rigid Tapping-Included
DescriptionUnitValue
Head Type-Automatic Universal Milling Head
B Axis ResolutionDeg0.001°
C Axis ResolutionDeg0.001°
Positioning AccuracyArc Sec±10
RepeatabilityArc Sec±5
DescriptionUnitValue
X1 / X2 Axis MotorNm27 / 27
Y Axis MotorNm27
Z Axis MotorNm27
B Axis MotorNmDirect Drive / Servo
C Axis MotorNmDirect Drive / Servo
DescriptionUnitValue
X Guideways-63 mm Roller Type, 2 + 2
Y Guideways-63 mm Roller Type
Z Guideways-63 mm Roller Type
X Drive-Dual Drive Rack & Pinion
Y Drive-Precision Ballscrew Ø63
Z Drive-Precision Ballscrew Ø63
Bearings-SKF / FAG / RHP
Linear Guideways-Hiwin / THK / PMI
DescriptionUnitValue
X Rapidmm/min7000
Y Rapidmm/min4000
Z Rapidmm/min4000
Cutting Feedmm/min5 – 5000
DescriptionUnitValue
Ram Type-Heavy Box Type
Ram Sectionmm300 × 300
Construction-Stress Relieved Ribbed Structure
Movement-Servo Controlled
DescriptionUnitValue
Gantry / Saddle / Columns-FG260 Grade CI Castings
Work Table-FG260 Grade CI Casting
Structural Design-High Rigidity Gantry Frame
DescriptionUnitValue
CNC Controller-Siemens 840D / Heidenhain TNC7 / Fanuc
5 Axis Functions-RTCP / TCPM / Kinematic Compensation
Communication-Ethernet / USB / RS232
Electrical Components-Siemens / ABB / Fanuc
Drag Chain-Kabel Schlepp
DescriptionUnitValue
Lubrication-Programmable Centralized
Coolant System-Flood / Through Spindle Optional
Coolant Pressurebar30
DescriptionUnitValue
Power RequirementkVAApprox. 110
DescriptionUnitValue
Machine Accuracy Standard-As per IS Standards
DescriptionUnitValue
Simultaneous 5 Axis Capability-Included
Universal Head-Included
BT50 Spindle-Included
Rigid Tapping-Included
Absolute Encoders-Included
Operator Console-Included
Machine Lamp-Included
Manuals-Included
DescriptionUnitValue
Automatic Tool Changer-30 / 60 / 120 Tools
Linear Glass Scale-Optional
Probe System-Optional
Chip Conveyor-Optional
Tool Probe-Optional
Workpiece Probe-Optional
Voltage Stabilizer-Optional

Application Components

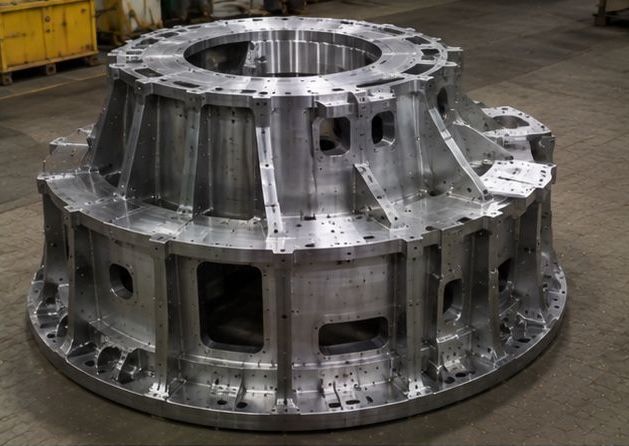

  • Base Frame

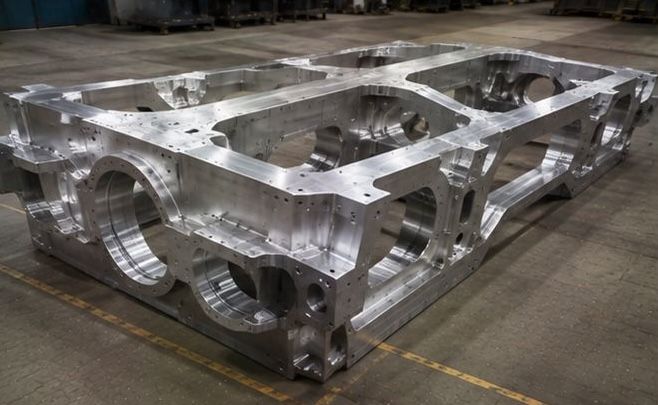

  • Loco Frame

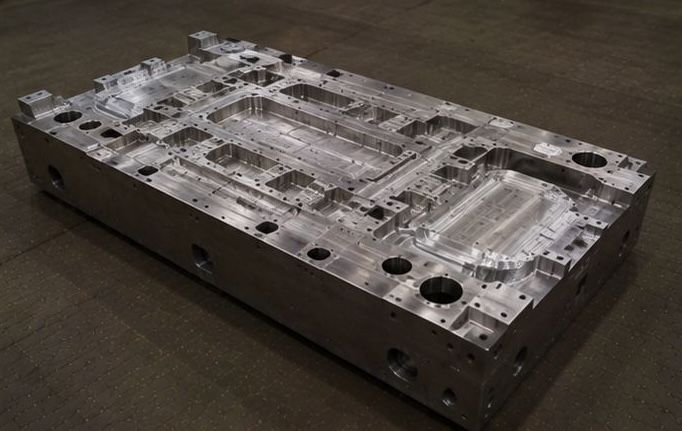

  • Mold Base

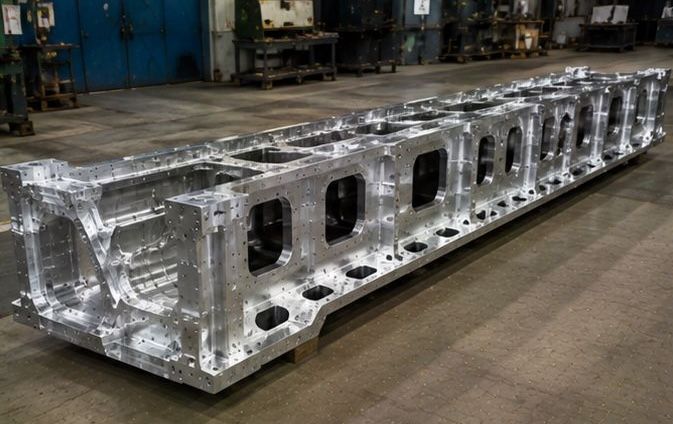

  • Wing Spar

Machine Highlights

  • Simultaneous 5 Axis Machining

    Designed for advanced contour machining and simultaneous multi-axis interpolation of complex geometries.

  • Continuous Universal Milling Head

    Automatic universal head supports continuous B & C axis movement for angular and multi-surface machining.

  • High Speed Electro Spindle

    BT50 electro spindle with oil chiller cooling ensures thermal stability and high speed precision machining capability.

  • Advanced CNC Kinematics

    Supports RTCP, TCPM, and advanced kinematic compensation for accurate 5-axis machining.

Want to See Our Product Videos?

Explore Sahil Machines’ YouTube channel for machine demonstrations, machining applications, and engineering insights.

Sahil Machines YouTube

Accessories

Service

Advanced Technology Options

  • CNC Systems

    Configure the machine with Siemens 840D, Heidenhain TNC7, or Fanuc CNC controls to match application requirements and operator familiarity.

  • Probing

    Tool and workpiece probing systems improve setup accuracy, reduce manual intervention, and support in-process measurement capabilities.

  • Workholding

    Customized fixtures and advanced clamping arrangements can be integrated to enhance machining stability and improve productivity.

  • Accessories Integration

    Automation-ready architecture supports ATCs, conveyors, stabilization systems, and future technological upgrades.
