CLTM SERIES

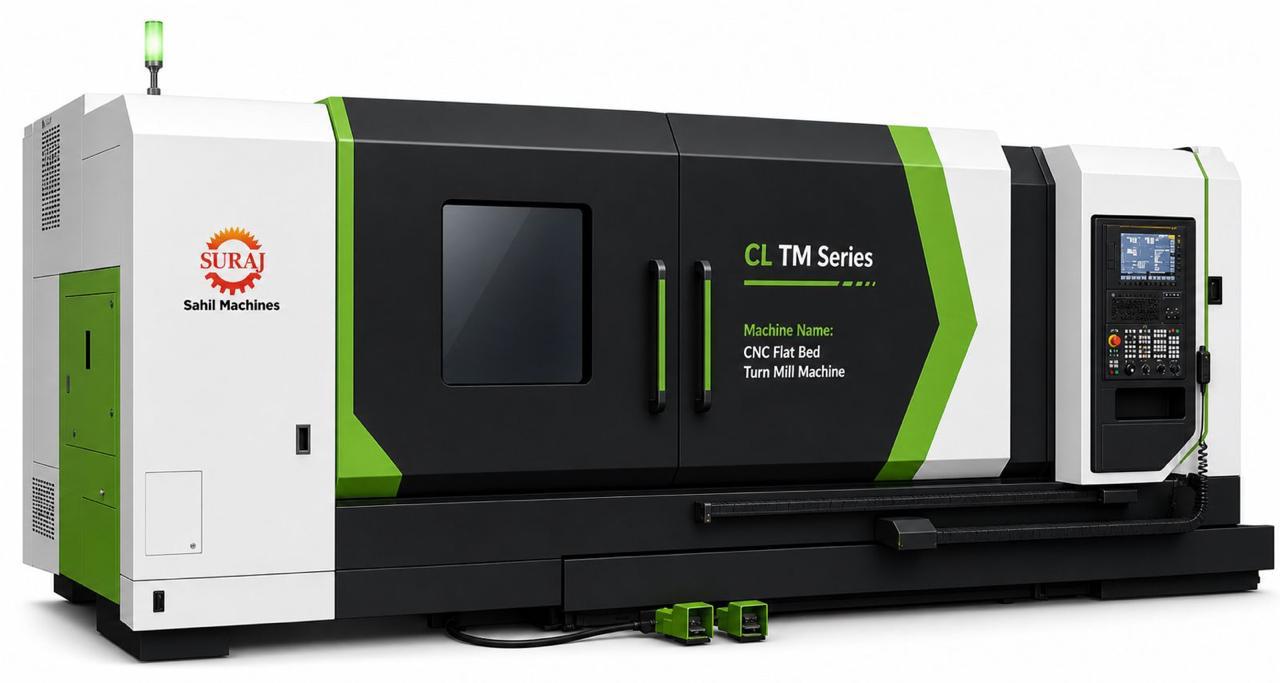

CNC FLAT BED TURN MILL MACHINE

The CLTM Series CNC Flat Bed Turn Mill Machines are heavy duty multi tasking CNC machines designed for turning, milling, drilling, tapping, and C Axis machining operations on medium to ultra heavy industrial components. Built with rigid box way construction, servo spindle drives, and live tooling capability, the machines deliver high precision machining with reduced setup time and increased productivity.

Quick Technical Details

  • Swing Over Bed Range1000 – 2500 mm
  • Maximum Turning DiameterUp to 2350 mm
  • Turning Length Range2000 – 14000 mm
  • Main Spindle PowerUp to 60 kW
  • CNC CapabilityC Axis + Live Tooling
  • Live Tool OperationsMilling, Drilling, Tapping
  • Accuracy StandardAs per IS Standards
Playlist of CLTM SERIESSahil Machines YT Channel

Product Documents

Get all the technical details you need.

CLTM Series CNC Flat Bed Turn Mill Machines

Full Technical Specifications | Sahil Machines • Turn Mill Division

Make in India
DescriptionUnitCLTM 1000CLTM 1500CLTM 2000CLTM 2500
Machine Type-CNC Flat Bed Turn Mill MachineCNC Flat Bed Turn Mill MachineCNC Flat Bed Turn Mill MachineCNC Flat Bed Turn Mill Machine
Structure-Heavy Duty Flat Bed Box Way ConstructionHeavy Duty Flat Bed Box Way ConstructionHeavy Duty Flat Bed Box Way ConstructionHeavy Duty Flat Bed Box Way Construction
Bed Type-One Piece Stress Relieved CI BedOne Piece Stress Relieved CI BedOne Piece Stress Relieved CI BedOne Piece Stress Relieved CI Bed
Machining Capability-Turning, Milling, Drilling, Tapping, C Axis MachiningTurning, Milling, Drilling, Tapping, C Axis MachiningTurning, Milling, Drilling, Tapping, C Axis MachiningTurning, Milling, Drilling, Tapping, C Axis Machining
Application-Shafts, Flanges, Cylinders & Medium Heavy ComponentsLarge Shafts, Flanges & Heavy Precision ComponentsExtra Heavy Shafts & Precision Heavy ComponentsUltra Heavy Shafts & Precision Mega Components
Accuracy Standard-As per IS StandardsAs per IS StandardsAs per IS StandardsAs per IS Standards
DescriptionUnitCLTM 1000CLTM 1500CLTM 2000CLTM 2500
Swing Over Bedmm1000150020002500
Swing Over Saddlemm650110014501900
Maximum Turning Diametermm900140018502350
Center Heightmm50075010001250
Distance Between Centersmm2000 – 140002000 – 140002000 – 140002000 – 14000
Maximum Turning Lengthmm2000 – 140002000 – 140002000 – 140002000 – 14000
DescriptionUnitCLTM 1000CLTM 1500CLTM 2000CLTM 2500
Spindle Nose-A2-11A2-11A2-15A2-15 / Special Heavy Duty Nose
Spindle Bore-MT6MT6210210 / 260 Optional
Spindle Speed Rangerpm9 – 6009 – 6005 – 4004 – 300
Main Spindle MotorkW20305060
Drive Type-AC Servo Main DriveAC Servo Main DriveAC Servo Main Drive with GearboxAC Servo Main Drive with Heavy Duty Gearbox
Chuck Type-Manual 4 Jaw / Hydraulic OptionalManual 4 Jaw / Hydraulic OptionalManual 4 Jaw / Hydraulic OptionalManual 4 Jaw / Hydraulic Optional
C Axis ResolutionDeg0.001°0.001°0.001°0.001°
DescriptionUnitCLTM 1000CLTM 1500CLTM 2000CLTM 2500
Turret Make-Pragati / Duplomatic OptionalPragati / Duplomatic OptionalPragati / Duplomatic OptionalPragati / Duplomatic Optional
Turret Type-Rotary Live Tool TurretRotary Live Tool TurretRotary Live Tool TurretRotary Live Tool Turret
Tool StationsNos8 / 128 / 128 / 128 / 12
Rotary Tool MotorkW5557.5
Tool Sizemm32 × 3232 × 3232 × 3240 × 40
Maximum Boring Bar Diametermm60606080
Operations-Milling, Drilling, TappingMilling, Drilling, TappingMilling, Drilling, Tapping, Thread MillingMilling, Drilling, Tapping, Thread Milling
DescriptionUnitCLTM 1000CLTM 1500CLTM 2000CLTM 2500
X Axis Travelmm52076010101260
Z Axis Travelmm2000 – 140002000 – 140002000 – 140002000 – 14000
X Axis Rapidm/min6655
Z Axis Rapidm/min6655
X Servo MotorNm22303650
Z Servo MotorNm22305050
Guideways-Hardened & Ground Box WaysHardened & Ground Box WaysHardened & Ground Box WaysHardened & Ground Box Ways
DescriptionUnitCLTM 1000CLTM 1500CLTM 2000CLTM 2500
Tailstock Type-Manual / Hydraulic OptionalManual / Hydraulic OptionalHydraulic / Programmable OptionalHydraulic / Programmable Optional
Quill Diametermm150150200220
Quill Travelmm200200200250
Center-MT6MT6MT7MT7
DescriptionUnitCLTM 1000CLTM 1500CLTM 2000CLTM 2500
Total Connected Loadhp35457590
Coolant Pump Motorhp1112
Hydraulic Pump Motorhp1155
Lubrication Pumphp0.50.511
Power Supply-3 Phase, 440V, 50Hz3 Phase, 440V, 50Hz3 Phase, 440V, 50Hz3 Phase, 440V, 50Hz
DescriptionUnitCLTM 1000CLTM 1500CLTM 2000CLTM 2500
Controller Options-Siemens 828D / Fanuc 0i TF PlusSiemens 828D / Fanuc 0i TF PlusSiemens 828D / Siemens One / Fanuc 0i TF PlusSiemens 828D / Siemens One / Fanuc 0i TF Plus
Electricals-Siemens / ABBSiemens / ABBSiemens / ABBSiemens / ABB
Communication-Ethernet / USBEthernet / USBEthernet / USBEthernet / USB
Functions-C Axis, Live Tooling, Rigid TappingC Axis, Live Tooling, Rigid TappingC Axis, Live Tooling, Rigid Tapping, Polar InterpolationC Axis, Live Tooling, Rigid Tapping, Polar Interpolation
DescriptionUnitCLTM 1000CLTM 1500CLTM 2000CLTM 2500
Manual 4 Jaw Chuck-Included
Live Tool Turret-Included
C Axis-Included
Auto Lubrication-Included
Coolant System-Included
Hydraulic System-Included
Work Light-Included
Tower Lamp-Included
Tool Box with Tools-Included
DescriptionUnitCLTM 1000CLTM 1500CLTM 2000CLTM 2500
Hydraulic Chuck-Optional
Face Plate-Optional
Splash Guard-Optional
Chip Conveyor-Optional
Steady Rest-Optional
Follow Rest-Optional
Grinding Head-Optional
Tool Probe-Optional
Job Probe-Optional
Voltage Stabilizer-Optional
Isolation Transformer-Optional

Application Components

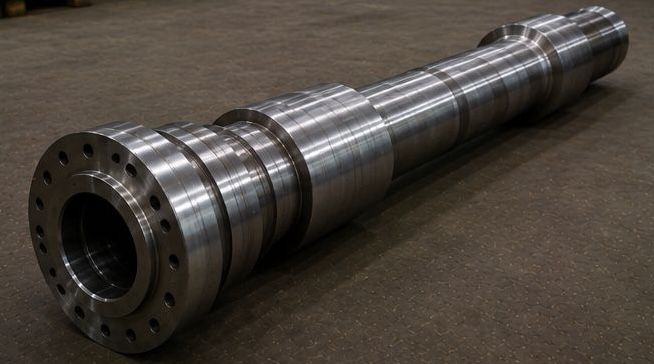

  • Alloy Shaft

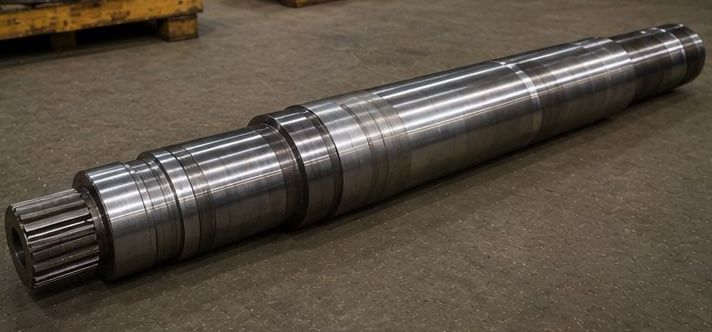

  • Forged Shaft

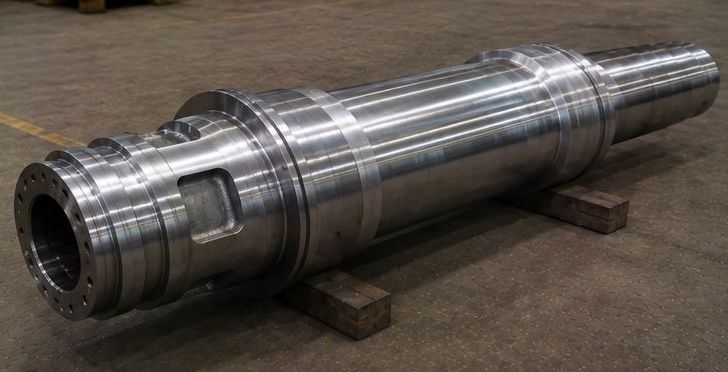

  • Main Shaft

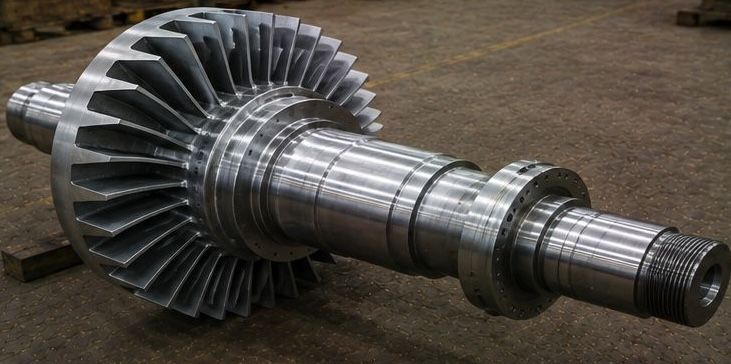

  • Rotor

Machine Highlights

  • Turn Mill Technology

    Integrated turning, milling, drilling, tapping, and C Axis machining capability in a single setup.

  • Heavy Duty Construction

    Stress relieved cast iron bed with hardened box guideways ensures excellent rigidity and stability.

  • Live Tooling Capability

    Rotary live tool turret supports milling, drilling, tapping, and thread milling operations.

  • Flexible CNC Integration

    Supports Siemens and Fanuc CNC systems with rigid tapping and polar interpolation functions.
