Heavy Duty Vertical Turning Construction
Rigid single column structure with heavy duty box guideways ensures superior vibration damping and machining stability during high load operations.
Precision. Power. Performance.
CNC VTL 1250 Turret Vertical Turning Lathe
The CNC VTL 1250T is a heavy duty turret type CNC Vertical Turning Lathe engineered for precision machining of large diameter components requiring turning, facing, boring, grooving, and drilling operations. Built with a rigid single column structure, heavy duty box guideways, servo spindle drive, and high rigidity turret system, the machine delivers excellent stability, high metal removal rates, and consistent machining accuracy during continuous heavy duty operations.
Quick Technical Details
- Chuck Diameter1250 mm
- Maximum Turning Diameter1700 mm
- Maximum Turning Height1200 mm
- Maximum Job Weight5000 kg
- Main Spindle Power45 kW
- Turret Stations12 Station Servo Turret
- Accuracy StandardAs per IS Standards
Product Documents
Get all the technical details you need.
CNC VTL 1250T
Full Technical Specifications | Sahil Machines • Vertical Turning Division
| Description | Unit | Value |
|---|---|---|
| Model | - | CNC VTL 1250T |
| Machine Type | - | Turret Type CNC Vertical Turning Lathe |
| Structure | - | Single Column Vertical Turning Center |
| Application | - | Heavy Precision Turning, Facing, Boring, Grooving, Drilling |
| Description | Unit | Value |
|---|---|---|
| Chuck Diameter | mm | 1250 |
| Maximum Turning Diameter | mm | 1700 |
| Maximum Swing Diameter | mm | 1850 |
| Maximum Turning Height | mm | 1200 |
| Maximum Job Weight | kg | 5000 |
| Description | Unit | Value |
|---|---|---|
| Spindle Nose | - | Custom Heavy Duty |
| Spindle Bore | mm | 160 |
| Spindle Speed Range | rpm | 10 – 500 |
| Spindle Drive | - | AC Servo Spindle |
| Main Motor Power | kW | 45 |
| Spindle Torque | Nm | High Torque Low RPM Output |
| Bearing Type | - | Precision Roller Bearings |
| Description | Unit | Value |
|---|---|---|
| X Axis Travel | mm | 850 |
| Z Axis Travel | mm | 1200 |
| X Axis Rapid Traverse | m/min | 14 |
| Z Axis Rapid Traverse | m/min | 14 |
| Positioning Accuracy | mm | ±0.010 |
| Repeatability | mm | ±0.006 |
| Description | Unit | Value |
|---|---|---|
| X Axis Guideway | - | Heavy Duty Box Guideways |
| Z Axis Guideway | - | Heavy Duty Box Guideways |
| Ballscrews | - | Precision Preloaded Ballscrews |
| Servo Motors | - | Fanuc / Siemens Compatible |
| Description | Unit | Value |
|---|---|---|
| Turret Type | - | Servo Indexing |
| Stations | Nos | 12 |
| Tool Size OD | mm | 40 × 40 |
| Boring Bar Capacity | mm | 63 |
| Index Time | sec | Fast Indexing |
| Tool Clamping | - | High Rigidity |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Fanuc 0i TF Plus / Siemens 828D |
| Display | - | Color LCD |
| Programming | - | ISO Standard G Code |
| Functions | - | Rigid Tapping / Diagnostics / Memory |
| Description | Unit | Value |
|---|---|---|
| Lubrication System | - | Automatic Centralized |
| Coolant Tank Capacity | L | 400 |
| Coolant Pump | hp | 1 |
| Chip Disposal | - | Conveyor Optional |
| Description | Unit | Value |
|---|---|---|
| Power Requirement | kVA | 65 |
| Voltage | - | 415V ±10%, 3 Phase, 50Hz |
| Electrical Components | - | Siemens / Schneider / ABB |
| Description | Unit | Value |
|---|---|---|
| Floor Space | mm | 3800 × 3600 |
| Machine Height | mm | 4200 |
| Approx Weight | kg | 22000 |
| Description | Unit | Value |
|---|---|---|
| Hydraulic Chuck | - | Included |
| Lubrication Unit | - | Included |
| Coolant System | - | Included |
| Work Lamp | - | Included |
| Full Enclosure | - | Included |
| Leveling Pads | - | Included |
| Tool Kit | - | Included |
| Description | Unit | Value |
|---|---|---|
| C Axis | - | Optional |
| Live Tooling | - | Optional |
| Tool Probe | - | Optional |
| Touch Probe | - | Optional |
| Chip Conveyor | - | Optional |
| Mist Collector | - | Optional |
| Auto Door | - | Optional |
| Industry 4.0 | - | Optional |
Application Components

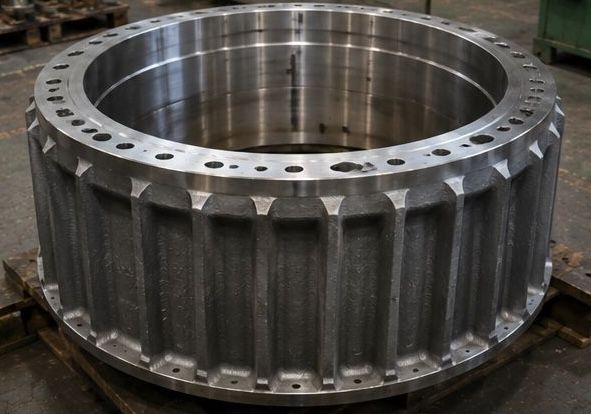

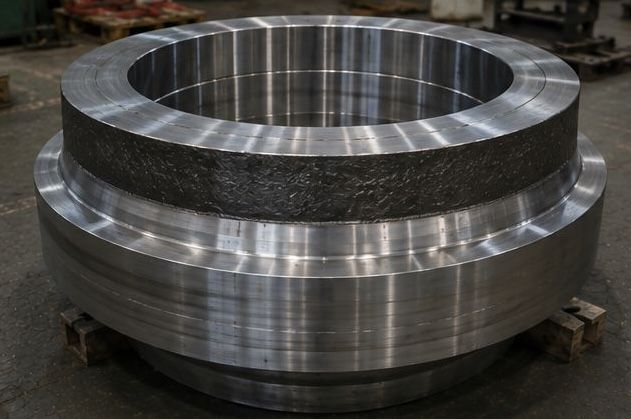

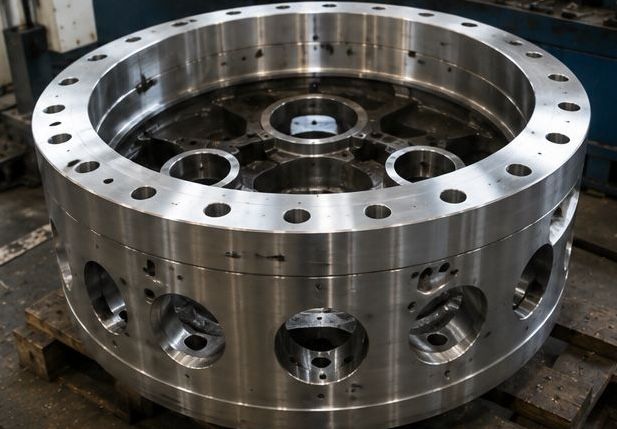

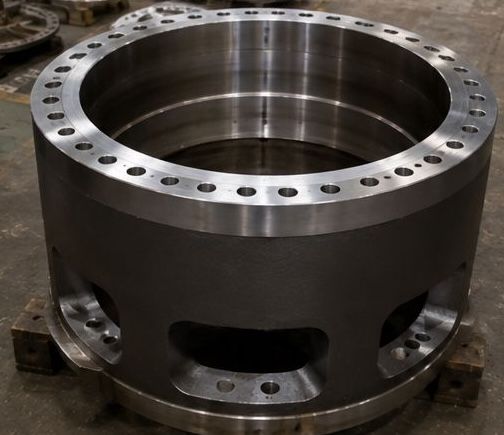

Carrier Drive Housing Drum Forging
Machine Highlights
Precision Turret Machining
Servo indexing 12 station turret enables accurate turning, facing, boring, and grooving operations with fast indexing performance.
High Torque Spindle System
45 kW AC servo spindle drive delivers powerful low RPM torque for heavy metal removal applications.
Advanced CNC Integration
Supports Fanuc 0i TF Plus and Siemens 828D CNC systems with optional C Axis and live tooling capability.
