Heavy Duty Vertical Turning Platform
Designed for stable machining of large diameter and high weight industrial components.
Precision. Power. Performance.

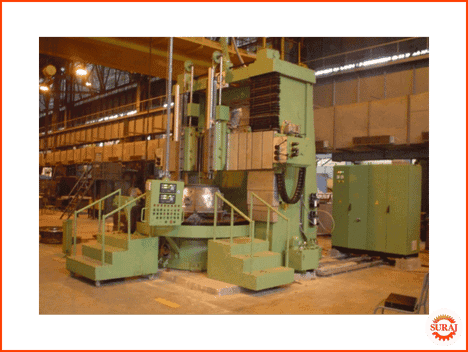

VTL 2000 Vertical Turning Lathe
The VTL 2000 Conventional Vertical Turning Lathe is engineered for precision machining of large diameter and heavy industrial components. Built with a rigid twin column construction, precision ground forged steel ram, heavy duty cross rail assembly, and high torque table drive system, the machine delivers stable and reliable machining performance under continuous heavy cutting conditions.
Quick Technical Details
- Table Diameter2000 mm
- Maximum Turning Diameter2500 mm
- Maximum Working Height1500 / 2000 mm
- Maximum Job Load Capacity12 MT
- Main Drive Motor30 HP
- Table Speed Range5 – 50 RPM
- Accuracy StandardAs per IS Standards
Product Documents
Get all the technical details you need.
VTL 2000 Conventional Vertical Turning Lathe
Full Technical Specifications | Sahil Machines • Turning Division
| Description | Unit | Value |
|---|---|---|
| Model | - | VTL 2000 |
| Maximum Turning Diameter | mm | 2500 |
| Maximum Working Height | mm | 1500 / 2000 |
| Maximum Job Load Capacity | MT | 12 |
| Description | Unit | Value |
|---|---|---|
| Table Diameter | mm | 2000 |
| Chuck Type | - | 4 Jaw Chuck |
| Main Drive Motor | hp | 30 |
| Table Speed Range | rpm | 5 – 50 |
| Main Drive System | - | VFD with AC Motor |
| Description | Unit | Value |
|---|---|---|
| Number of Columns | - | 2 |
| Column Design | - | Heavy Duty Twin Column Construction |
| Column Guide Ways | - | Integral Guide Ways |
| Top Support | - | Heavy Duty Beam Support for Column Rigidity |
| Base Structure | - | Graded Cast Iron Construction |
| Description | Unit | Value |
|---|---|---|
| Vertical Travel | mm | 1500 / 2000 |
| Rail Guide Ways | - | Integral / Hardened & Ground Steel Guide Ways |
| Rail Lifting | - | Automatic Lifting & Lowering System |
| Description | Unit | Value |
|---|---|---|
| Ram Finish | - | Precision Ground Finish |
| Ram Material | - | EN9 Forged Steel |
| Ram Cross Section | mm | 200 × 200 |
| Horizontal Travel | mm | 1050 |
| Vertical Ram Travel | mm | 800 / 1100 |
| Ram Swivel Range | deg | ±30° |
| Counter Balance | - | Mechanical / Hydraulic |
| Maximum Tool Size | mm | 40 × 40 |
| Standard Head | - | Single Ram Head on Cross Rail |
| Description | Unit | Value |
|---|---|---|
| Feed Range | m/min | 0.1 – 2 |
| Rapid Traverse | m/min | 3 |
| Description | Unit | Value |
|---|---|---|
| Gearbox Make | - | Bonfiglioli |
| Gears Material | - | Alloy Steel EN9 / EN353 |
| Description | Unit | Value |
|---|---|---|
| Lubrication Type | - | Centrally Controlled Automatic Lubrication |
| Make | - | Cenlub / Lubrite |
| Description | Unit | Value |
|---|---|---|
| Coolant Tank | - | Standard Supply |
| Coolant Motor | hp | 1 |
| Description | Unit | Value |
|---|---|---|
| Power Supply | - | 3 Phase, 440V, 50Hz |
| Voltage Tolerance | - | ±10% |
| Electrical Components | - | Siemens / ABB |
| Feed Drives | - | AC Motors for Auxiliary Drives |
| Description | Unit | Value |
|---|---|---|
| Total Installed Power | hp | 45 |
| Main Motor | hp | 30 |
| Feed Motor | hp | 3 |
| Lubrication Motor | hp | 0.5 |
| Coolant Motor | hp | 1 |
| Description | Unit | Value |
|---|---|---|
| Bearings | - | SKF / KOYO |
| Machine Castings | - | High Grade Cast Iron |
| Ram Material | - | EN9 Forged Steel |
| Description | Unit | Value |
|---|---|---|
| Length | mm | 5000 |
| Width | mm | 5000 |
| Height | mm | 3500 |
| Description | Unit | Value |
|---|---|---|
| Chuck | - | 2000 mm 4 Jaw |
| Ram Head | - | Single Ram Head |
| Control Panel | - | Interlocked Electrical Control Station |
| Lubrication | - | Centralized on Sliding Ways |
| Coolant Tank | - | Included |
| Tool Kit | - | Service Tools Set |
| Description | Unit | Value |
|---|---|---|
| Additional Ram Head | - | Optional |
| Turret Head | - | Optional |
| Threading Head | - | Optional |
| Side Ram Head | - | Optional |
| Milling Attachment | - | Optional |
| Grinding Attachment | - | Optional |
| Slotting Attachment | - | Optional |
| Telescopic Covers | - | Optional |
| CNC Compatibility Upgrade | - | Available |
Application Components

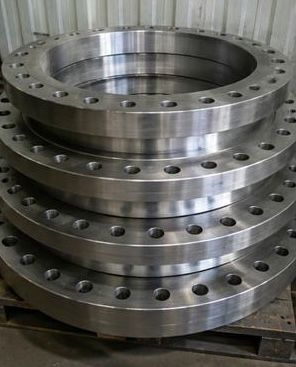

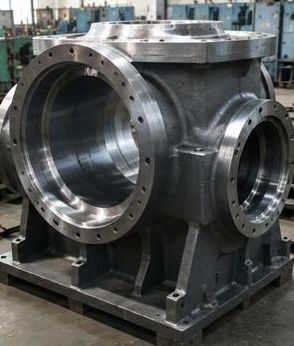

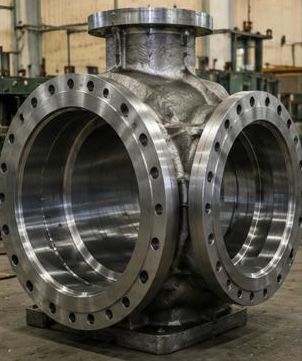

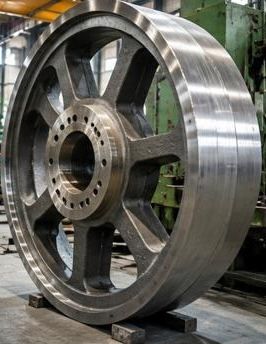

Body Casing Flanges Flywheels
Machine Highlights
Precision Forged Steel Ram
EN9 forged ram structure ensures rigidity, accuracy, and reliable heavy cutting performance.
High Torque Table Drive
VFD controlled AC drive system delivers smooth low speed torque for heavy turning applications.
Flexible Machining Capability
Supports optional turret heads, side heads, slotting, milling, grinding, and CNC retrofit systems.
