Extreme Heavy Duty Structure
Massive reinforced twin column structure provides exceptional rigidity and vibration damping during continuous heavy machining operations.
Precision. Power. Performance.
VTL 6000 Vertical Turning Lathe
The VTL 6000 Conventional Vertical Turning Lathe is designed for ultra heavy machining applications involving massive diameter, high weight, and large structural industrial components. Built with a reinforced twin column structure, hydraulic counter balanced ram system, hardened guideways, and ultra high torque table drive, the machine delivers maximum rigidity and stable machining performance under continuous heavy cutting operations.
Quick Technical Details
- Table Diameter6000 mm
- Maximum Turning Diameter8000 mm
- Maximum Working Height3000 / 4000 mm
- Maximum Job Load Capacity75 MT
- Main Drive Motor100 HP
- Table Speed Range3 – 30 RPM
- Accuracy StandardAs per IS Standards
Product Documents
Get all the technical details you need.
VTL 6000 Conventional Vertical Turning Lathe
Full Technical Specifications | Sahil Machines • Turning Division
| Description | Unit | Value |
|---|---|---|
| Model | - | VTL 6000 |
| Maximum Turning Diameter | mm | 8000 |
| Maximum Working Height | mm | 3000 / 4000 |
| Maximum Job Load Capacity | MT | 75 |
| Description | Unit | Value |
|---|---|---|
| Table Diameter | mm | 6000 |
| Chuck Type | - | 4 Jaw Chuck |
| Main Drive Motor | hp | 100 |
| Table Speed Range | rpm | 3 – 30 |
| Main Drive System | - | VFD with AC Motor |
| Description | Unit | Value |
|---|---|---|
| Number of Columns | - | 2 |
| Column Design | - | Heavy Duty Twin Column Construction |
| Column Guide Ways | - | Integral Guide Ways |
| Top Support | - | Heavy Duty Beam Support for Column Rigidity |
| Base Structure | - | Graded Cast Iron Construction |
| Description | Unit | Value |
|---|---|---|
| Vertical Travel | mm | 2000 / 4000 |
| Rail Guide Ways | - | Hardened & Ground Steel Guide Ways |
| Rail Lifting | - | Automatic Lifting & Lowering System |
| Description | Unit | Value |
|---|---|---|
| Ram Finish | - | Precision Ground Finish |
| Ram Material | - | EN9 Forged Steel |
| Ram Cross Section | mm | 250 × 250 |
| Horizontal Travel | mm | 3750 |
| Vertical Ram Travel | mm | 1100 / 1600 / 2000 |
| Ram Swivel Range | deg | ±30° |
| Counter Balance | - | Hydraulic Counter Balanced |
| Maximum Tool Size | mm | 50 × 50 |
| Standard Head | - | Single Ram Head on Cross Rail |
| Description | Unit | Value |
|---|---|---|
| Feed Range | m/min | 0.1 – 1 |
| Rapid Traverse | m/min | 2 |
| Description | Unit | Value |
|---|---|---|
| Gearbox Make | - | Nord / Bonfiglioli / Reputed Make |
| Gears Material | - | Alloy Steel EN9 / EN353 |
| Description | Unit | Value |
|---|---|---|
| Lubrication Type | - | Centrally Controlled Automatic Lubrication |
| Description | Unit | Value |
|---|---|---|
| Coolant System | - | Optional |
| Coolant Tank | - | Optional |
| Description | Unit | Value |
|---|---|---|
| Power Supply | - | 3 Phase, 440V, 50Hz |
| Voltage Tolerance | - | ±10% |
| Electrical Components | - | Siemens / ABB |
| Feed Drives | - | AC Motors |
| Description | Unit | Value |
|---|---|---|
| Total Installed Power | hp | 140 |
| Main Motor | hp | 100 |
| Feed Motor | hp | 7.5 |
| Lubrication Motor | hp | 0.5 (2 Nos.) |
| Description | Unit | Value |
|---|---|---|
| Bearings | - | SKF / KOYO |
| Machine Castings | - | High Grade Cast Iron |
| Ram Material | - | EN9 Forged Steel |
| Description | Unit | Value |
|---|---|---|
| Machine Accuracy | - | As per IS Standards |
| Description | Unit | Value |
|---|---|---|
| Chuck | - | 6000 mm 4 Jaw |
| Ram Head | - | Single Ram Head |
| Control Panel | - | Interlocked Electrical Control Station |
| Lubrication | - | Centralized on Sliding Ways |
| Cross Rail Lift | - | Automatic |
| Electricals | - | Siemens / ABB |
| Description | Unit | Value |
|---|---|---|
| Additional Ram Head | - | Optional |
| Chip Conveyor | - | Optional |
| DRO | - | Optional |
| Linear Scales | - | Optional |
| Machine Guard | - | Optional |
| Telescopic Covers | - | Optional |
| Service Tools | - | Optional |
| CNC Compatibility Upgrade | - | Available |
Application Components

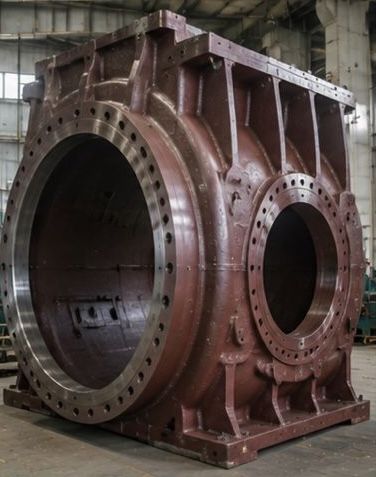

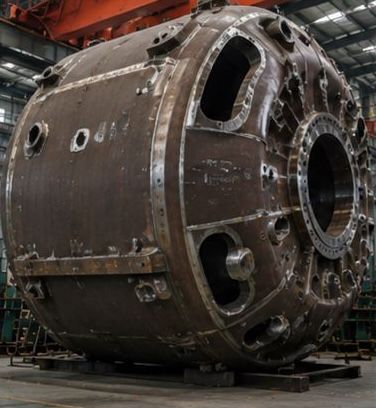

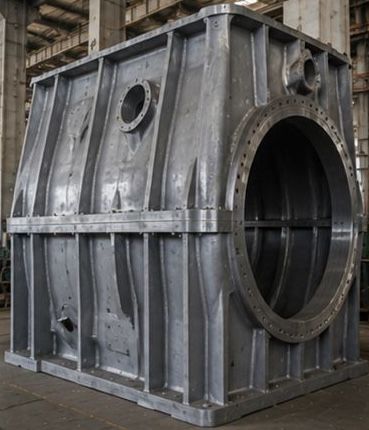

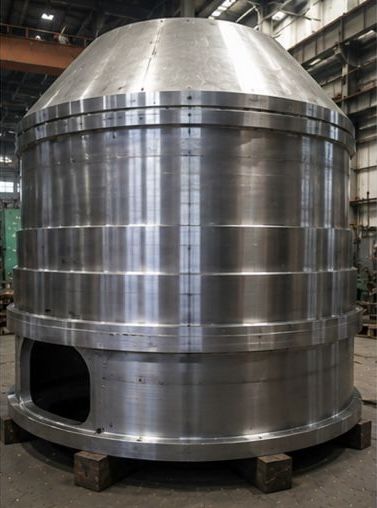

Casing Covers Housing Vessel
Machine Highlights
High Torque Table Drive
100 HP VFD controlled drive system ensures stable low RPM machining performance for mega diameter industrial components.
Hydraulic Counter Balanced Ram
Hydraulic balancing mechanism improves machining stability and smooth ram movement during deep heavy cuts.
Multi Purpose Heavy Machining Platform
Supports optional ram heads, DRO systems, machine guarding, linear scales, CNC retrofit upgrades, and customized tooling systems.
