CNC Facing Lathes

Machine Structure

Heavy Duty Flat Bed Construction

Machining Capability

Facing, Turning, Boring

Drive System

Servo Main Drive

Accuracy

As per IS Standards

Precision. Power. Performance.

CNC FL Series

CNC Facing Lathe Machines

Heavy duty CNC Facing Lathe Machines designed for machining large diameter short-length components requiring high rigidity, precision turning, facing, boring, and heavy material removal capability.

Quick Technical Details

  • Swing Over Bed2000 mm / 3000 mm
  • Distance Between Centers1500 mm / 1500 mm
  • Main Motor Power30 kW / 40 kW
  • Spindle Speed Range10 – 400 rpm / 10 – 400 rpm
  • Bed Width1400 mm / 1800 mm
  • CNC SystemSiemens / Fanuc
Playlist of CNC FL SeriesSahil Machines YT Channel

Product Documents

Get all the technical details you need.

CNC FL Series - CNC Facing Lathe Machines

Full Technical Specifications | Sahil Machines • Heavy Duty Turning Division

Make in India
DescriptionUnitCNC FL 2000CNC FL 3000
Model-CNC FL 2000CNC FL 3000
Machine Type-CNC Facing Lathe MachineCNC Facing Lathe Machine
Structure-Heavy Duty Flat Bed ConstructionExtra Heavy Duty Flat Bed Construction
Application-Large Diameter Facing, Turning, Boring, Heavy Duty Short-Length ComponentsExtra Large Diameter Facing, Turning, Boring, Heavy Components
DescriptionUnitCNC FL 2000CNC FL 3000
Swing Over Bedmm20003000
Swing Over Cross Slidemm13002300
Bed Widthmm14001800
Distance Between Centersmm15001500
DescriptionUnitCNC FL 2000CNC FL 3000
Spindle Nose-A2-15A2-20
Spindle Boremm230230
Spindle Speed Rangerpm10 – 40010 – 400
Main MotorkW3040
Drive Type-Servo Main DriveServo Main Drive
DescriptionUnitCNC FL 2000CNC FL 3000
Cross Travel (X Axis)mm10101510
X Axis Rapid Traversem/min55
Z Axis Rapid Traversem/min55
Cutting Feed Ratem/min0 – 40 – 4
DescriptionUnitCNC FL 2000CNC FL 3000
X Axis Servo MotorNm2736
Z Axis Servo MotorNm5050
DescriptionUnitCNC FL 2000CNC FL 3000
X Axis Ball Screw-50 mm / Pitch 1050 mm / Pitch 10
Z Axis Ball Screw-80 mm / Pitch 1080 mm / Pitch 10
DescriptionUnitCNC FL 2000CNC FL 3000
Lubrication Pumphp11
Coolant Pumphp11
Hydraulic Tank Pumphp3 (Optional)3 (Optional)
DescriptionUnitCNC FL 2000CNC FL 3000
Hydraulic TankL2020
Lubrication TankL88
DescriptionUnitCNC FL 2000CNC FL 3000
Controller Options-Siemens / Fanuc LatestSiemens / Fanuc Latest
Programming-ISO Standard G CodeISO Standard G Code
Optional Functions-Live Tooling, Probing, High Pressure CoolantLive Tooling, Probing, High Pressure Coolant
DescriptionUnitCNC FL 2000CNC FL 3000
Tailstock-OptionalOptional
DescriptionUnitCNC FL 2000CNC FL 3000
Machine Accuracy-As per IS Standards
DescriptionUnitCNC FL 2000CNC FL 3000
Chuck-IncludedIncluded
Tool Holders-IncludedIncluded
Tailstock-Included / Optional as per scopeIncluded / Optional as per scope
Coolant System-IncludedIncluded
Chip Conveyor-IncludedIncluded
Automatic Lubrication-IncludedIncluded
Work Light-IncludedIncluded
Control Panel-IncludedIncluded
DescriptionUnitCNC FL 2000CNC FL 3000
Bar Feeder-OptionalOptional
Parts Catcher-OptionalOptional
Live Tooling-OptionalOptional
High Pressure Coolant-OptionalOptional
Programmable Steady Rest-OptionalOptional
Coolant Through Spindle-OptionalOptional
Probing System-OptionalOptional

Application Components

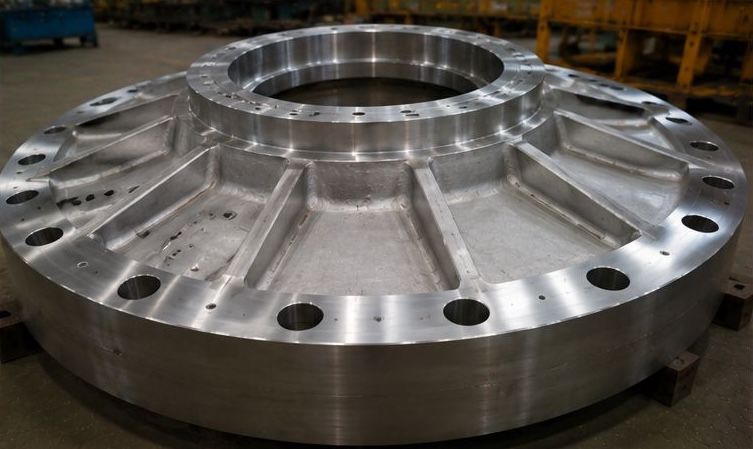

  • Cover

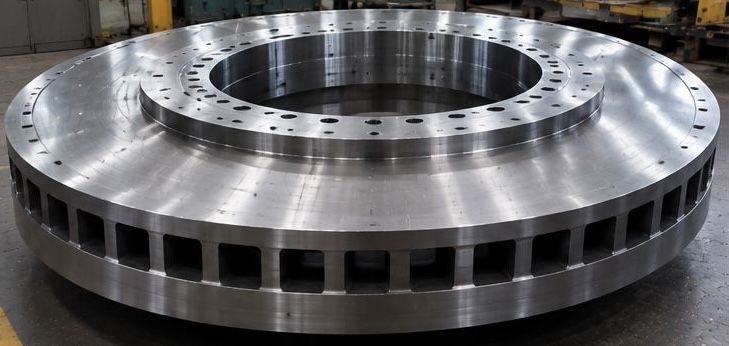

  • Disc Brake

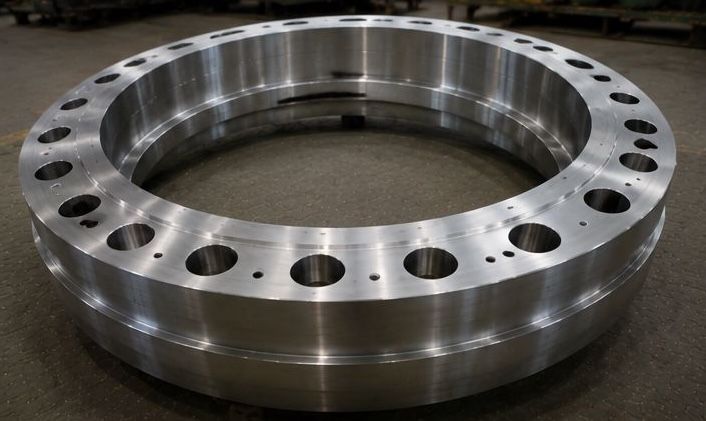

  • Flange

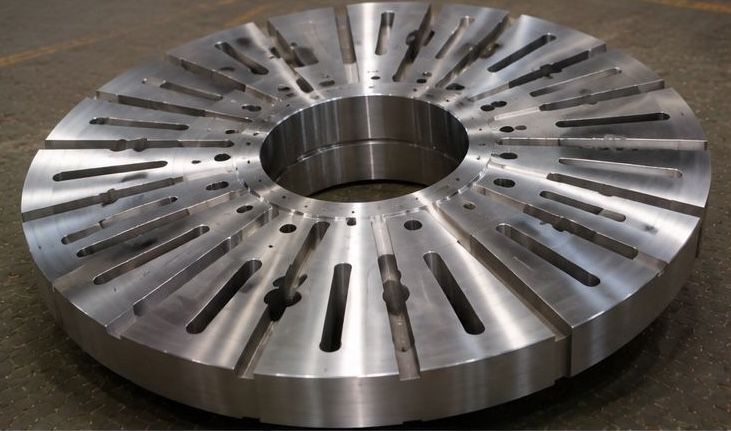

  • SPM Fixture

Machine Highlights

  • Heavy Duty Flat Bed Construction

    Rigid flat bed structure ensures machining stability during heavy facing and turning operations.

  • Servo Main Drive System

    Advanced servo spindle drive provides smooth speed control and stable cutting performance.

  • Large Diameter Machining Capability

    Machine is designed for precision machining of heavy short-length components with large diameters.

  • Precision CNC Turning Platform

    Supports accurate turning, facing, boring, and contour machining applications.

Want to See Our Product Videos?

Explore Sahil Machines’ YouTube channel for machine demonstrations, machining applications, and engineering insights.

Sahil Machines YouTube

Accessories

Service

Advanced Technology Options

  • Programmable Steady Rest

    Optional steady rest improves support for larger and heavier workpieces.

  • Probing System

    Optional probing systems improve setup accuracy and process repeatability.

  • Through Spindle Coolant

    Optional coolant through spindle improves cutting efficiency during deep boring operations.

  • Automation Ready

    Machine can be configured with automation and custom workholding solutions.
