Heavy Duty Turning Construction
Rigid flat bed structure with hardened box guideways ensures stable heavy duty turning operations.
Precision. Power. Performance.
CFL 2000
CNC FLAT BED LATHE
The CFL 2000 CNC Flat Bed Lathe is a heavy duty CNC turning machine designed for large rotor turning, turbine component machining, heavy pipe turning, flange machining, and long bed precision turning operations. Built with rigid flat bed construction, hardened box guideways, heavy duty spindle systems, and CNC automation, the machine delivers stable high torque machining performance for large industrial components.
Quick Technical Details
- Swing Over Bed2000 mm
- Swing Over Cross Slide1450 mm
- Distance Between Centers2000 – 14000 mm
- Main Motor Power50 kW
- Spindle Speed Range5 – 400 RPM
- CNC SystemFanuc 0i TF / Siemens 828D
- Accuracy StandardAs per IS Standards
Product Documents
Get all the technical details you need.
CFL 2000 CNC Flat Bed Lathe
Full Technical Specifications | Sahil Machines • Turning Division
| Description | Unit | Value |
|---|---|---|
| Machine Type | - | CNC Flat Bed Lathe |
| Structure | - | Heavy Duty Flat Bed |
| Guideway Type | - | Hardened Box Ways |
| Application | - | Large Rotor Turning |
| Description | Unit | Value |
|---|---|---|
| Swing Over Bed | mm | 2000 |
| Swing Over Cross Slide | mm | 1450 |
| Center Height | mm | 1000 |
| Distance Between Centers | mm | 2000 – 14000 |
| Description | Unit | Value |
|---|---|---|
| Spindle Nose | - | A2-15 |
| Spindle Speed Range | rpm | 5 – 400 |
| Spindle Bore | mm | 210 |
| Main Motor Power | kW | 50 |
| Description | Unit | Value |
|---|---|---|
| Turret Make | - | Pragati |
| Stations | Nos | 8 / 12 |
| Tool Size | mm | 32 × 32 |
| Description | Unit | Value |
|---|---|---|
| X Axis Travel | mm | 1010 |
| X Axis Rapid | m/min | 5 |
| Servo Motor | Nm | 36 |
| Description | Unit | Value |
|---|---|---|
| Z Axis Travel | mm | 2000 – 14000 |
| Z Axis Rapid | m/min | 5 |
| Servo Motor | Nm | 50 |
| Description | Unit | Value |
|---|---|---|
| Quill Diameter | mm | 200 |
| Quill Travel | mm | 200 |
| Tailstock Center | - | MT7 |
| Description | Unit | Value |
|---|---|---|
| Coolant Pump | hp | 1 |
| Hydraulic Pump | hp | 5 |
| Lubrication Pump | hp | 1 |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Fanuc 0i TF / Siemens 828D |
| Optional Features | - | C Axis, Live Tooling |
| Description | Unit | Value |
|---|---|---|
| Chuck | - | 4 Jaw Manual |
| Turret | - | Included |
| Coolant / Hydraulic / Lubrication | - | Auto |
| Work Light | - | Included |
| Tool Box | - | Included |
| Description | Unit | Value |
|---|---|---|
| Chip Conveyor | - | Optional |
| Splash Guard | - | Optional |
| Face Plate | - | Optional |
| Hydraulic Chuck | - | Optional |
| Steady Rest / Follow Rest | - | Optional |
| Milling Attachment | - | Optional |
| Grinding Head | - | Optional |
| Tool Probe / Presetter | - | Optional |
| Voltage Stabilizer | - | Optional |
Application Components

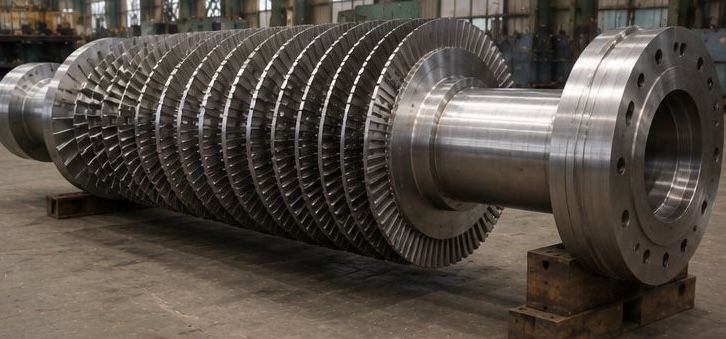

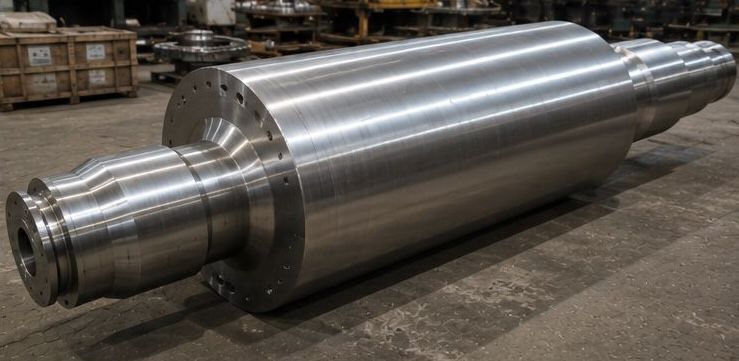

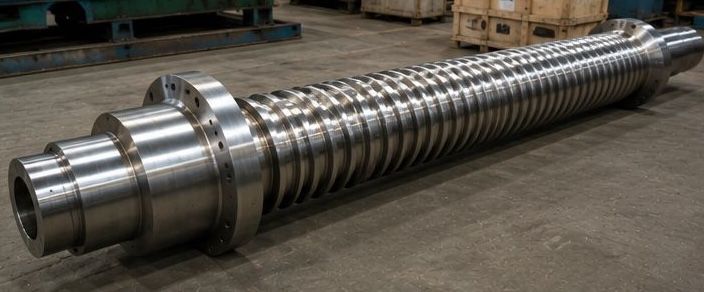

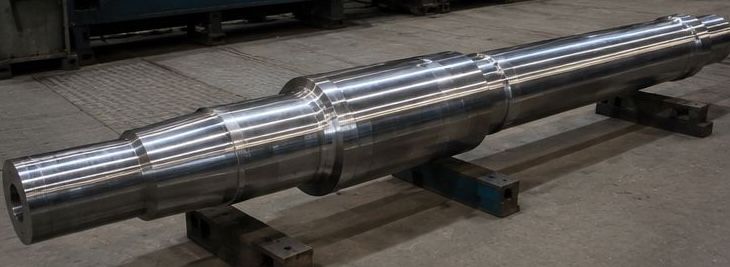

Long Shaft Paper Mill Roller Screw Shaft Turbine Rotor
Machine Highlights
High Torque Spindle System
50 kW spindle drive delivers high machining torque for large rotor and turbine component machining.
Long Bed Flexibility
Distance between centers up to 14000 mm supports long shaft, rotor, pipe, and cylindrical job machining.
Flexible CNC Automation
Supports optional C Axis, live tooling, milling attachment, grinding head, and automation accessories.
