Ultra Heavy Duty Turning Platform
Rigid flat bed construction with hardened box guideways supports stable machining under high cutting loads.
Precision. Power. Performance.
CFL 2500
CNC FLAT BED LATHE
The CFL 2500 CNC Flat Bed Lathe is an ultra heavy duty CNC turning machine engineered for long shaft machining, rotor turning, roll machining, flange turning, and large cylindrical component manufacturing. Built with rigid flat bed construction, hardened box guideways, heavy duty spindle systems, and CNC automation capability, the machine delivers stable machining performance under high cutting loads.
Quick Technical Details
- Swing Over Bed2500 mm
- Swing Over Cross Slide2000 mm
- Distance Between Centers2000 – 14000 mm
- Main Motor Power60 kW
- Spindle Speed Range5 – 400 RPM
- CNC CapabilityOptional C Axis + Live Tooling
- Accuracy StandardAs per IS Standards
Product Documents
Get all the technical details you need.
CFL 2500 CNC Flat Bed Lathe
Full Technical Specifications | Sahil Machines • Turning Division
| Description | Unit | Value |
|---|---|---|
| Machine Type | - | CNC Flat Bed Lathe |
| Structure | - | Heavy Duty Flat Bed |
| Guideway Type | - | Hardened Box Ways |
| Application | - | Ultra Heavy Long Job Turning |
| Description | Unit | Value |
|---|---|---|
| Swing Over Bed | mm | 2500 |
| Swing Over Cross Slide | mm | 2000 |
| Center Height | mm | 1250 |
| Distance Between Centers | mm | 2000 – 14000 |
| Description | Unit | Value |
|---|---|---|
| Spindle Nose | - | A2-15 |
| Spindle Speed Range | rpm | 5 – 400 |
| Spindle Bore | mm | 210 |
| Main Motor Power | kW | 60 |
| Description | Unit | Value |
|---|---|---|
| Turret Make | - | Pragati |
| Stations | Nos | 8 / 12 |
| Tool Size | mm | 32 × 32 |
| Description | Unit | Value |
|---|---|---|
| X Axis Travel | mm | 1260 |
| X Axis Rapid | m/min | 5 |
| Servo Motor | Nm | 50 |
| Description | Unit | Value |
|---|---|---|
| Z Axis Travel | mm | 2000 – 14000 |
| Z Axis Rapid | m/min | 5 |
| Servo Motor | Nm | 50 |
| Description | Unit | Value |
|---|---|---|
| Quill Diameter | mm | 200 |
| Quill Travel | mm | 200 |
| Tailstock Center | - | MT7 |
| Description | Unit | Value |
|---|---|---|
| Coolant Pump | hp | 1 |
| Hydraulic Pump | hp | 5 |
| Lubrication Pump | hp | 1 |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Fanuc 0i TF / Siemens 828D |
| Optional Features | - | C Axis, Live Tooling |
| Description | Unit | Value |
|---|---|---|
| Chuck | - | 4 Jaw Manual |
| Turret | - | Included |
| Coolant / Hydraulic / Lubrication | - | Auto |
| Work Light | - | Included |
| Tool Box | - | Included |
| Description | Unit | Value |
|---|---|---|
| Chip Conveyor | - | Optional |
| Splash Guard | - | Optional |
| Face Plate | - | Optional |
| Hydraulic Chuck | - | Optional |
| Steady Rest / Follow Rest | - | Optional |
| Milling Attachment | - | Optional |
| Grinding Head | - | Optional |
| Tool Probe / Presetter | - | Optional |
| Voltage Stabilizer | - | Optional |
Application Components

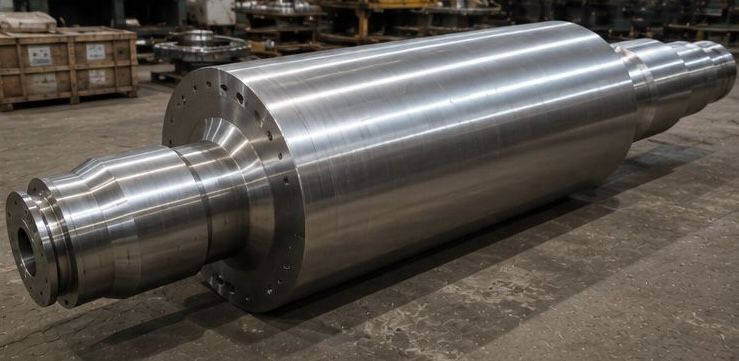

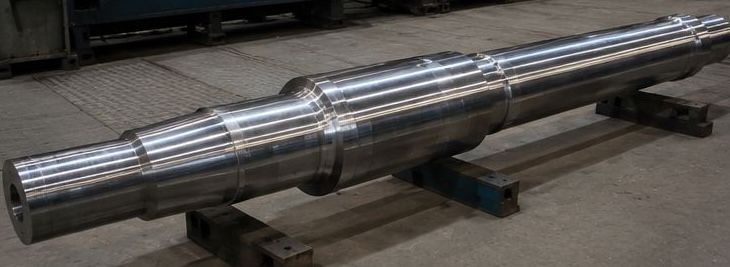

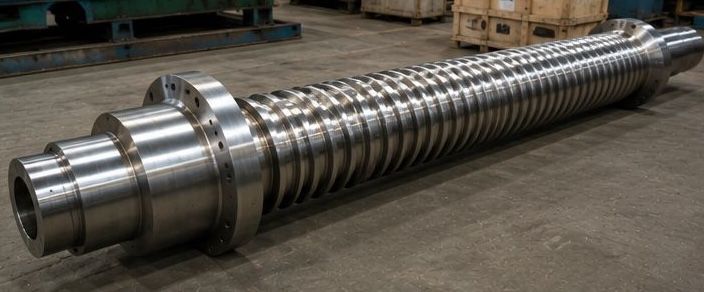

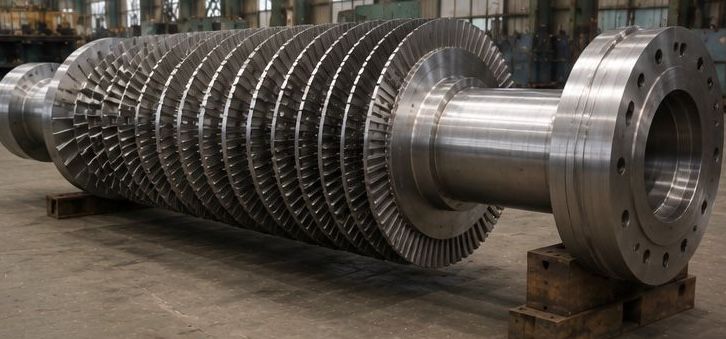

Long Shaft Paper Mill Roller Screw Shaft Turbine Rotor
Machine Highlights
High Torque Spindle Performance
60 kW spindle drive delivers excellent torque for machining large diameter heavy cylindrical components.
Long Bed Machining Capability
Distance between centers up to 14000 mm supports long shaft, rotor, and roll turning applications.
Flexible CNC Automation
Supports optional C Axis, live tooling, milling attachment, grinding head, and automation systems.
