Heavy Duty Flat Bed Construction
Rigid flat bed construction with hardened box guideways ensures stable machining of heavy shafts and cylindrical components.
Precision. Power. Performance.
CFL 1500
CNC FLAT BED LATHE
The CFL 1500 CNC Flat Bed Lathe is a heavy duty CNC turning machine designed for heavy shaft turning, roll machining, spindle machining, cylindrical component machining, and long bed precision turning operations. Built with rigid flat bed construction, hardened box guideways, CNC automation, and high torque spindle drive systems, the machine delivers stable machining performance for medium to heavy industrial components.
Quick Technical Details
- Swing Over Bed1500 mm
- Swing Over Cross Slide1100 mm
- Distance Between Centers2000 – 14000 mm
- Main Motor Power30 kW
- Spindle Speed Range9 – 600 RPM
- CNC SystemFanuc 0i TF / Siemens 828D
- Accuracy StandardAs per IS Standards
Product Documents
Get all the technical details you need.
CFL 1500 CNC Flat Bed Lathe
Full Technical Specifications | Sahil Machines • Turning Division
| Description | Unit | Value |
|---|---|---|
| Machine Type | - | CNC Flat Bed Lathe |
| Structure | - | Heavy Duty Flat Bed |
| Guideway Type | - | Hardened Box Ways |
| Application | - | Heavy Shaft Turning |
| Description | Unit | Value |
|---|---|---|
| Swing Over Bed | mm | 1500 |
| Swing Over Cross Slide | mm | 1100 |
| Center Height | mm | 750 |
| Distance Between Centers | mm | 2000 – 14000 |
| Description | Unit | Value |
|---|---|---|
| Spindle Nose | - | A2-11 |
| Spindle Speed Range | rpm | 9 – 600 |
| Spindle Bore | - | MT6 |
| Main Motor Power | kW | 30 |
| Description | Unit | Value |
|---|---|---|
| Turret Make | - | Duplomatic / Pragati |
| Stations | Nos | 8 / 12 |
| Tool Size | mm | 32 × 32 |
| Description | Unit | Value |
|---|---|---|
| X Axis Travel | mm | 760 |
| X Axis Rapid | m/min | 6 |
| Servo Motor | Nm | 30 |
| Description | Unit | Value |
|---|---|---|
| Z Axis Travel | mm | 2000 – 14000 |
| Z Axis Rapid | m/min | 6 |
| Servo Motor | Nm | 30 |
| Description | Unit | Value |
|---|---|---|
| Quill Diameter | mm | 150 |
| Quill Travel | mm | 200 |
| Tailstock Center | - | MT6 |
| Description | Unit | Value |
|---|---|---|
| Coolant Pump | hp | 1 |
| Hydraulic Pump | hp | 1 |
| Lubrication Pump | hp | 0.5 |
| Description | Unit | Value |
|---|---|---|
| Controller Options | - | Fanuc 0i TF / Siemens 828D |
| Optional Features | - | C Axis, Live Tooling |
| Description | Unit | Value |
|---|---|---|
| Chuck | - | 4 Jaw Manual |
| Turret | - | Included |
| Coolant / Hydraulic / Lubrication | - | Auto |
| Work Light | - | Included |
| Tool Box | - | Included |
| Description | Unit | Value |
|---|---|---|
| Chip Conveyor | - | Optional |
| Splash Guard | - | Optional |
| Face Plate | - | Optional |
| Hydraulic Chuck | - | Optional |
| Steady Rest / Follow Rest | - | Optional |
| Milling Attachment | - | Optional |
| Grinding Head | - | Optional |
| Tool Probe / Presetter | - | Optional |
| Voltage Stabilizer | - | Optional |
Application Components

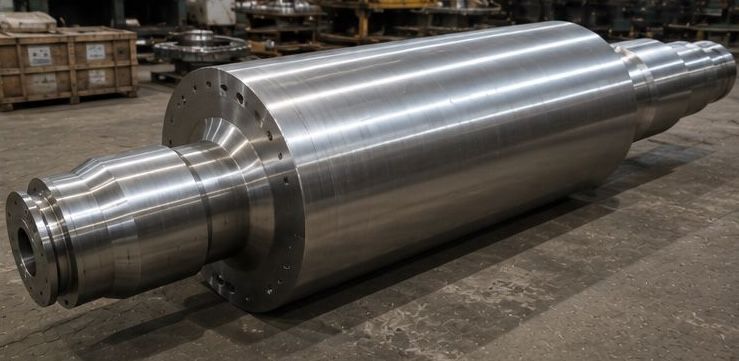

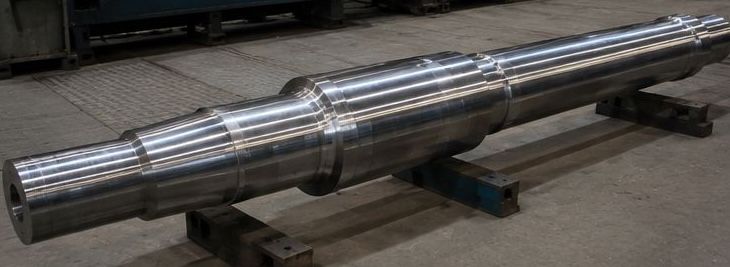

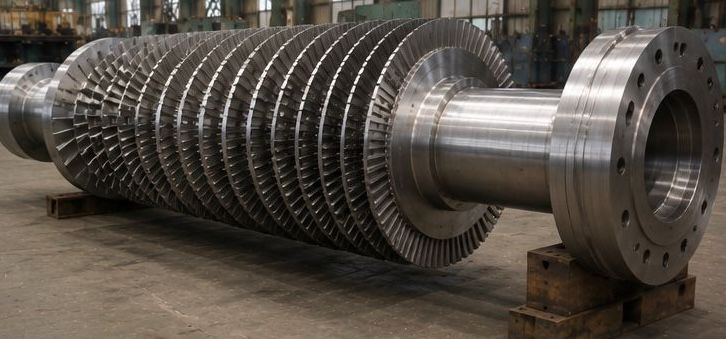

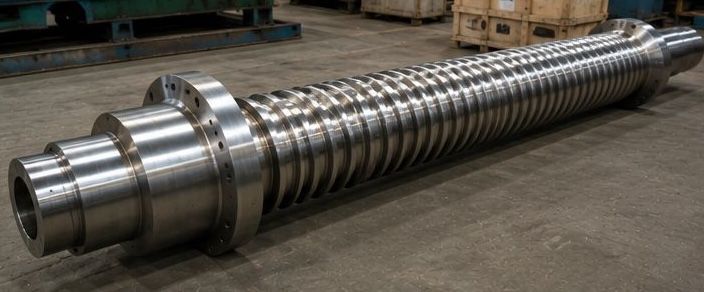

Long Shaft Paper Mill Roller Screw Shaft Turbine Rotor
Machine Highlights
CNC Turning Precision
Fanuc and Siemens CNC systems provide accurate turning, facing, boring, and contour machining capability.
Long Bed Machining Capability
Distance between centers up to 14000 mm supports long shaft, spindle, and roll machining applications.
Flexible CNC Automation
Optional C Axis, live tooling, probes, and automation accessories improve productivity and machining flexibility.
