CNC Oil Country Lathes

Bed Construction

Heavy Duty Flat Bed / Plano Bed

Spindle System

High Torque Geared Headstock

Threading Capability

API Pipe Threading Supported

Accuracy

As per IS Standards

Precision. Power. Performance.

OL SERIES

CNC OIL COUNTRY LATHE MACHINES

Heavy duty CNC Oil Country Lathe Machines designed for oilfield pipe threading, drill pipe machining, casing pipe machining, tubular reconditioning, and large bore turning applications.

Quick Technical Details

  • Swing Over Bed2000/ 2500/ 3000 mm
  • Spindle Bore230 mm
  • Main Motor Power75/93 kW
  • Distance Between Centers3000 – 12000 mm
  • Maximum Job WeightUp to 15000/22000/30000 kg
  • CNC SystemSiemens / Fanuc / Mitsubishi
Playlist of OL SERIESSahil Machines YT Channel

Product Documents

Get all the technical details you need.

CNC OL Series - CNC Oil Country Lathe Machines

Full Technical Specifications | Sahil Machines • Heavy Duty Oilfield Machining Division

Make in India
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
Model-CNC OL 2000CNC OL 2500CNC OL 3000
Machine Type-CNC Oil Country Lathe MachineCNC Oil Country Lathe MachineCNC Oil Country Lathe Machine
Structure-Heavy Duty Flat Bed / Plano Bed ConstructionExtra Heavy Duty Flat Bed / Plano Bed ConstructionUltra Heavy Duty Flat Bed / Plano Bed Construction
Bed Construction-Ribbed Stress Relieved Cast Iron / Fabricated Heavy BaseRibbed Stress Relieved Cast Iron / Fabricated Heavy BaseRibbed Stress Relieved Cast Iron / Fabricated Heavy Base
Bed Widthmm140015001800
Base Type-Plano TypePlano TypePlano Type
Guideway Design-Wide Box GuidewaysWide Box GuidewaysWide Box Guideways
Application-Oilfield Pipe Threading, Drill Pipe Machining, Tubing, Casing, Heavy Bore TurningLarge Bore Pipe Threading, Heavy Oilfield Components, Casing Jobs, Tubular ReconditioningUltra Large Pipe Threading, Offshore Tubular Jobs, Heavy Cylinders, Oilfield Reconditioning
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
Swing Over Bedmm200025003000
Swing Over Cross Slidemm155020502550
Center Heightmm100012501500
Distance Between Centersmm3000 to 120003000 to 120003000 to 12000
Maximum Job WeightkgUp to 15000Up to 22000Up to 30000
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
Spindle Bore Diametermm230230230 Standard / 300 Optional
Spindle Nose-A2-20A2-20A2-20
Maximum Spindle Speedrpm6 – 4006 – 4006 – 350
Speed Steps-Variable Speed ControlledVariable Speed ControlledVariable Speed Controlled
Main Motor Powerhp100100125
Main Motor PowerkW757593
Drive Type-High Torque Geared HeadstockHigh Torque Geared HeadstockHigh Torque Geared Headstock
Chuck Type-Heavy Duty Power Chuck / Manual ChuckHeavy Duty Power Chuck / Manual ChuckHeavy Duty Power Chuck / Manual Chuck
Pipe Through Capacity-Suitable for Large Bore Oil Tubular JobsSuitable for Large Bore Oil Tubular JobsSuitable for Extra Large Bore Tubular Jobs
Spindle Bearings-Heavy Duty Precision Roller BearingsHeavy Duty Precision Roller BearingsHeavy Duty Precision Roller Bearings
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
X Axis Travelmm105013501650
X Axis Rapid Traversem/min443
Guideway Type-Hardened & Ground Box WaysHardened & Ground Box WaysHardened & Ground Box Ways
Feed Transmission-Precision Ball ScrewPrecision Ball ScrewPrecision Ball Screw
Servo Motor TorqueNm365050
Position Feedback-Encoder Closed LoopEncoder Closed LoopEncoder Closed Loop
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
Z Axis Travelmm3000 to 120003000 to 120003000 to 12000
Z Axis Rapid Traversem/min443
Guideway Type-Hardened & Ground Box WaysHardened & Ground Box WaysHardened & Ground Box Ways
Feed Transmission-Precision Ball Screw / Rack & Pinion for Long BedPrecision Ball Screw / Rack & Pinion for Long BedPrecision Ball Screw / Rack & Pinion for Long Bed
Servo Motor TorqueNm505075
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
Metric Thread Rangemm Pitch2 – 302 – 302 – 30
Inch Thread RangeTPI1 – 151 – 151 – 15
Module ThreadsModule1 – 151 – 151 – 15
DP ThreadsDP2 – 302 – 302 – 30
CNC Threading Cycles-Straight / Taper / Multi StartStraight / Taper / Multi StartStraight / Taper / Multi Start
API Threading-SupportedSupportedSupported
Pipe Threading-Tubing / Casing / Drill PipeTubing / Casing / Drill PipeTubing / Casing / Drill Pipe / Offshore Pipe
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
Turret Type-Heavy Duty CNC Square TurretHeavy Duty CNC Square TurretHeavy Duty CNC Square Turret
Number of StationsNos4 / 64 / 64 / 6
Tool Sizemm50 x 5050 x 5050 x 50
Boring Bar Capacitymm80100120
Tool Clamping-Rigid Heavy DutyRigid Heavy DutyRigid Heavy Duty
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
Tailstock Type-Manual / HydraulicManual / HydraulicManual / Hydraulic
Quill Diametermm250250300
Quill Travelmm200200250
Center Taper-MT7MT7MT8
Tailstock Movement-Bed Mounted Sliding TypeBed Mounted Sliding TypeBed Mounted Sliding Type
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
Lubrication Pumphp111
Coolant Pumphp111
Lubrication Type-Automatic CentralizedAutomatic CentralizedAutomatic Centralized
Coolant Type-Flood CoolantFlood CoolantFlood Coolant
Coolant Tank-External Tank with PumpExternal Tank with PumpExternal Tank with Pump
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
Controller Options-Siemens / Fanuc / MitsubishiSiemens / Fanuc / MitsubishiSiemens / Fanuc / Mitsubishi
Display-Color LCD Operator PanelColor LCD Operator PanelColor LCD Operator Panel
Programming-ISO Standard G CodeISO Standard G CodeISO Standard G Code
Functions-Constant Surface Speed, Rigid Threading, Tool OffsetsConstant Surface Speed, Rigid Threading, Tool OffsetsConstant Surface Speed, Rigid Threading, Tool Offsets
Optional Software-API Thread Cycles / Pipe Profile CyclesAPI Thread Cycles / Pipe Profile CyclesAPI Thread Cycles / Pipe Profile Cycles / Premium Thread Cycles
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
Power Supply-415V, 3 Phase, 50Hz415V, 3 Phase, 50Hz415V, 3 Phase, 50Hz
Electrical Panel-Industrial Dust Protected CabinetIndustrial Dust Protected CabinetIndustrial Dust Protected Cabinet
Work Lamp-IncludedIncludedIncluded
Tower Lamp-IncludedIncludedIncluded
Safety Interlocks-IncludedIncludedIncluded
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
Chuck-IncludedIncludedIncluded
Tool Holders-IncludedIncludedIncluded
Tailstock-IncludedIncludedIncluded
Coolant System-IncludedIncludedIncluded
Automatic Lubrication-IncludedIncludedIncluded
Work Light-IncludedIncludedIncluded
Foundation Bolts-IncludedIncludedIncluded
Tool Kit-IncludedIncludedIncluded
DescriptionUnitCNC OL 2000CNC OL 2500CNC OL 3000
Hydraulic Steady Rest-OptionalOptionalOptional
Follow Rest-OptionalOptionalOptional
Pipe Support Roller Stand-OptionalOptionalOptional
Chip Conveyor-OptionalOptionalOptional
Hydraulic Chuck-OptionalOptionalOptional
Probe System-OptionalOptionalOptional
Bar Support System-OptionalOptionalOptional
Mist Extraction-OptionalOptionalOptional

Application Components

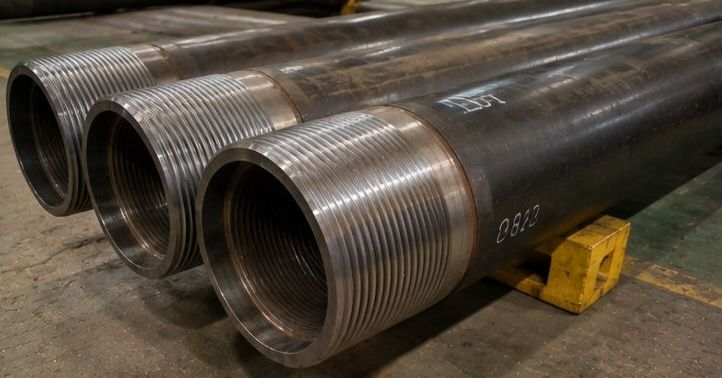

  • Casting Pipes

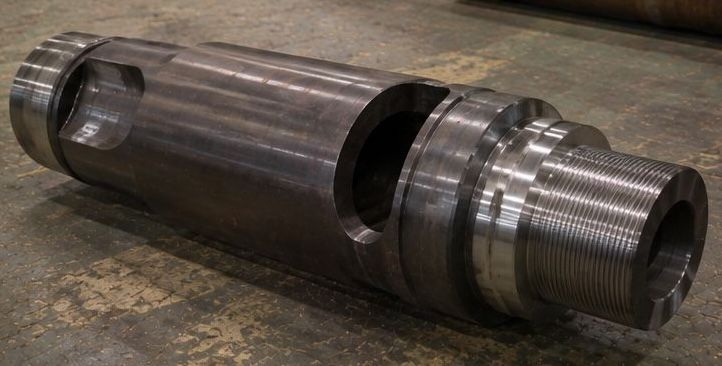

  • Drill Collar

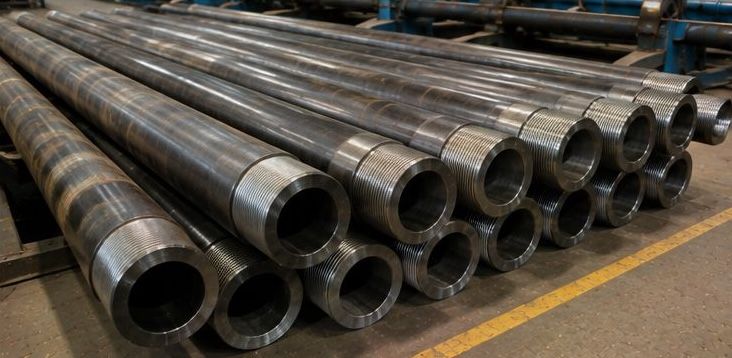

  • Oilfield Drill Pipes

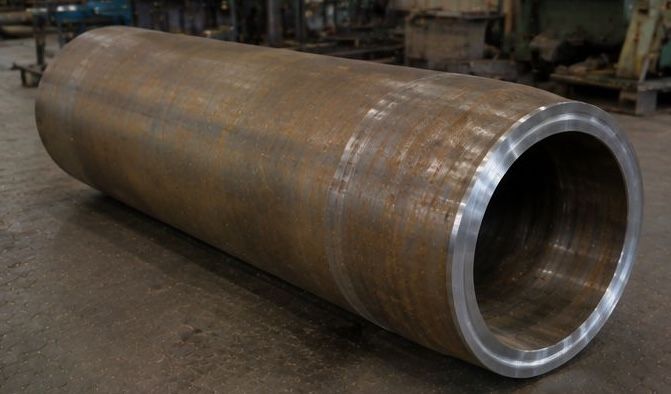

  • Tubing Pipe

Machine Highlights

  • Heavy Duty Plano Bed Construction

    Wide rigid bed structure designed for high load oilfield pipe machining applications.

  • Large Bore Spindle Design

    Large spindle bore supports heavy oil tubular and casing pipe machining.

  • API Threading Capability

    Machine supports straight, taper, multi-start, and API threading cycles.

  • High Torque Geared Headstock

    Heavy geared spindle drive ensures stable machining during large diameter threading and boring operations.

Want to See Our Product Videos?

Explore Sahil Machines’ YouTube channel for machine demonstrations, machining applications, and engineering insights.

Sahil Machines YouTube

Accessories

Service

Advanced Technology Options

  • Hydraulic Steady Rest

    Improves support during long tubular machining operations.

  • Pipe Support Roller Stand

    Supports long heavy oilfield pipes during turning and threading operations.

  • Probe System

    Optional probing system improves setup accuracy and repeatability.

  • Mist Extraction System

    Optional extraction system improves operator environment during machining.
