Massive Turning Capacity

Up to 24000 mm Turning Diameter

High Load Handling

Up to 350 MT Job Load

Advanced CNC Capability

Servo Spindle with C Axis Ready

Built For Reliability

EN9 Forged Ram with Hydraulic Counter Balance

Precision. Power. Performance.

CNC VTL 8000-20000 Ram Type Vertical Turning Lathe

The CNC VTL 8000 – CNC VTL 20000 Series comprises Sahil Machines’ largest range of ram type CNC Vertical Turning Lathes, engineered for machining extremely large diameter and high-weight industrial components. Designed with massive twin-column construction, precision ground ram systems, hardened guideways, and high-torque table drives, these machines deliver exceptional rigidity, stability, and accuracy under demanding machining conditions.

Quick Technical Details

  • Table Diameter Range8000 – 20000 mm
  • Maximum Turning DiameterUp to 24000 mm
  • Maximum Working HeightUp to 8000 mm
  • Maximum Job LoadUp to 350 MT
  • CNC Configuration2 Axis / 2 + 1 Axis C Axis Ready
  • Servo Spindle PowerUp to 500 kW
  • Accuracy StandardAs per IS / ISO Standards
Product video playlistSahil Machines YT Channel

Product Documents

Get all the technical details you need.

CNC VTL 8000 - CNC VTL 20000

Full Technical Specifications | Sahil Machines • Vertical Turning Division

Make in India
DescriptionUnitCNC VTL 8000CNC VTL 10000CNC VTL 12000CNC VTL 15000CNC VTL 20000
Model-CNC VTL 8000CNC VTL 10000CNC VTL 12000CNC VTL 15000CNC VTL 20000
Machine Type-Ram Type CNC Vertical Turning LatheRam Type CNC Vertical Turning LatheRam Type CNC Vertical Turning LatheRam Type CNC Vertical Turning LatheRam Type CNC Vertical Turning Lathe
Structure-Twin ColumnTwin ColumnTwin ColumnTwin ColumnTwin Column
Variants Available-VFD / ServoVFD / ServoVFD / ServoVFD / ServoVFD / Servo
DescriptionUnitCNC VTL 8000CNC VTL 10000CNC VTL 12000CNC VTL 15000CNC VTL 20000
Maximum Turning Diametermm1000012000150001800024000
Maximum Working Heightmm2000 / 3000 / 50003000 / 4000 / 50003000 / 4000 / 50004000 / 5000 / 60005000 / 6000 / 8000
Maximum Job LoadMT50100150220350
DescriptionUnitCNC VTL 8000CNC VTL 10000CNC VTL 12000CNC VTL 15000CNC VTL 20000
Table Diametermm800010000120001500020000
Chuck Type-4 Jaw4 Jaw4 Jaw4 Jaw4 Jaw
Main Motorhp125150200300450
Table Speed Rangerpm3–303–303–302–201–15
CNC Configuration-2 Axis2 Axis2 Axis2 Axis2 Axis
DescriptionUnitCNC VTL 8000CNC VTL 10000CNC VTL 12000CNC VTL 15000CNC VTL 20000
Table Diametermm800010000120001500020000
Main MotorkW125 / 160 / 200110 / 132 / 160160 / 200 / 250250 / 315 / 355355 / 450 / 500
Table Speed Rangerpm3–453–353–302–201–15
C Axis-AvailableAvailableAvailableAvailableAvailable
CNC Configuration-2 + 1 Axis2 + 1 Axis2 + 1 Axis2 + 1 Axis2 + 1 Axis
DescriptionUnitCNC VTL 8000CNC VTL 10000CNC VTL 12000CNC VTL 15000CNC VTL 20000
Horizontal Travelmm470057007100850011400
Vertical Ram Travelmm1100 / 1500 / 25001500 / 2000 / 25001100 / 1500 / 2000 / 25001500 / 2000 / 2500 / 30002000 / 2500 / 3000 / 4000
Ram Cross Sectionmm300 × 300300 × 300400 × 400450 × 450500 × 500
Maximum Tool Sizemm50 × 5040 × 4050 × 5063 × 6380 × 80
DescriptionUnitCNC VTL 8000CNC VTL 10000CNC VTL 12000CNC VTL 15000CNC VTL 20000
Number of PositionsNos.12121212 / 1616
Maximum Tool Weightkg25404060100
DescriptionUnitCNC VTL 8000CNC VTL 10000CNC VTL 12000CNC VTL 15000CNC VTL 20000
Controller Options-Fanuc 0i TF Plus / Siemens 828D LatestFanuc 0i TF Plus / Siemens 828D LatestFanuc 0i TF Plus / Siemens 828D LatestFanuc 0i TF Plus / Siemens 828D LatestFanuc 0i TF Plus / Siemens 828D Latest
VFD Version-2 Axis CNC2 Axis CNC2 Axis CNC2 Axis CNC2 Axis CNC
Servo Version-2 + 1 Axis with C Axis2 + 1 Axis with C Axis2 + 1 Axis with C Axis2 + 1 Axis with C Axis2 + 1 Axis with C Axis
Optional Functions-Live Tooling, Milling, Rigid Tapping, InterpolationLive Tooling, Milling, Rigid Tapping, InterpolationLive Tooling, Milling, Rigid Tapping, InterpolationLive Tooling, Milling, Rigid Tapping, InterpolationLive Tooling, Milling, Rigid Tapping, Interpolation

Application Components

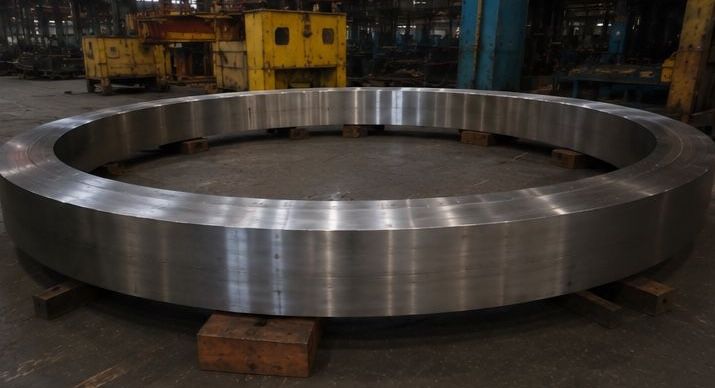

  • Forged Ring

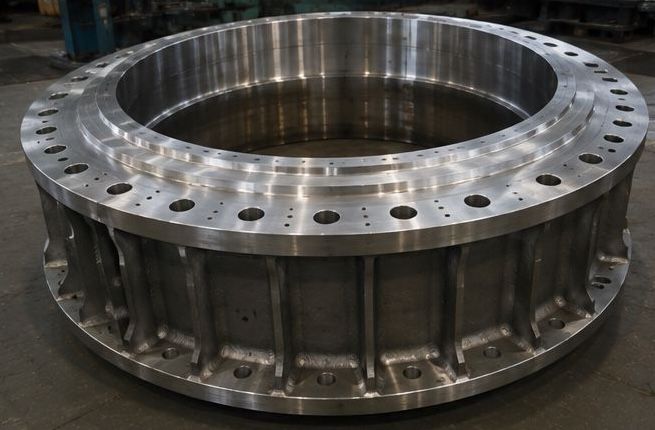

  • Large Housing

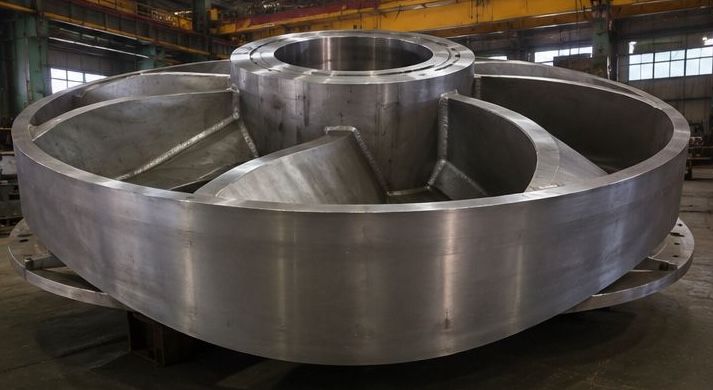

  • Pump Impeller

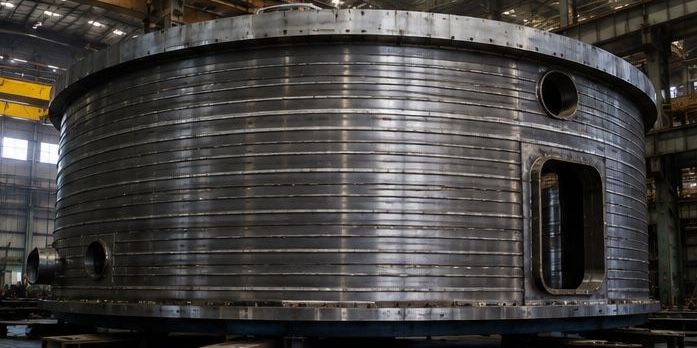

  • Reactor Vessel

Machine Highlights

  • Mega Capacity Vertical Turning

    Designed for ultra-large diameter components requiring extreme rigidity and stable CNC machining performance.

  • Servo Spindle with C Axis Capability

    Supports interpolation, indexing, live tooling, milling, rigid tapping, and contour machining cycles.

  • Massive Twin Column Construction

    Heavy-duty twin-column structure ensures vibration-resistant machining under extreme cutting loads.

  • Heavy Duty Ram System

    EN9 forged ram with hydraulic counter balancing delivers stable cutting performance during prolonged heavy-duty operations.

Want to See Our Product Videos?

Explore Sahil Machines’ YouTube channel for machine demonstrations, machining applications, and engineering insights.

Sahil Machines YouTube

Accessories

Service

Advanced Technology Options

  • C Axis Ready Platform

    Servo spindle configuration enables contour machining, interpolation, and advanced multi-operation machining cycles.

  • Ultra Heavy Machining

    Designed for large turbine parts, heavy fabrication components, hydro runners, and oversized industrial structures.

  • Automation Ready System

    Supports ATC systems, live tooling, probes, and customized CNC automation packages.

  • High Rigidity Guideways

    Hardened and ground guideways provide long-term geometric stability and heavy cutting capability.

Our Legacy

  • 60+

    YEARS OF LEGACY

  • 20+

    COUNTRIES SERVED

  • 5000+

    MACHINE INSTALLATIONS

  • 350+

    ENGINEERING EXPERTS

Core Catalog

Related Products

Explore related large-capacity vertical turning solutions from Sahil Machines.

  • VTL 5000 Vertical Turning Lathe

    VTL 5000 Vertical Turning Lathe

    CONVENTIONAL VERTICAL TURNING LATHE MACHINE

    VIEW PRODUCT
  • VTL 6000 Vertical Turning Lathe

    VTL 6000 Vertical Turning Lathe

    CONVENTIONAL VERTICAL TURNING LATHE MACHINE

    VIEW PRODUCT

Frequently Ask Questions

Delivery timelines generally range from 32 weeks depending upon machine size, configuration, machining height, ram arrangement, and optional systems.
